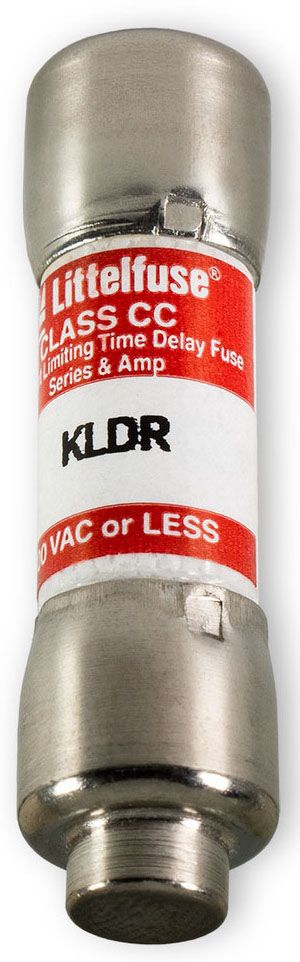

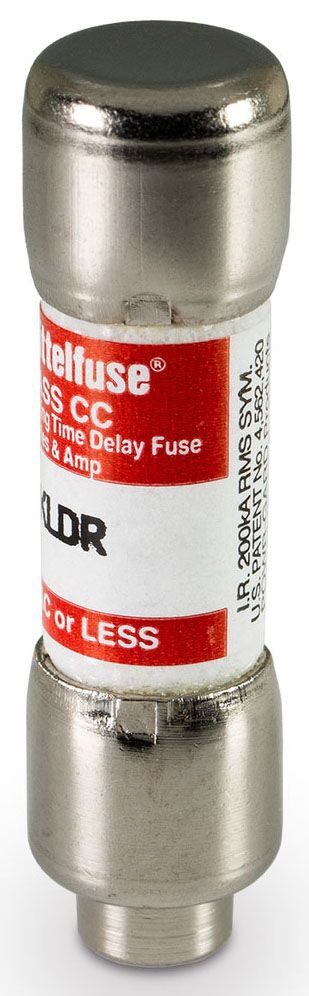

Littelfuse KLDR05.6TXP Class CC Time Delay Fuse 5.6A 600VAC 200000A Interrupting Melamine Nickel-Plated Bronze

The KLDR05.6TXP Midget Fuse from Littelfuse is engineered to provide superior protection for transformers, specifically designed to handle the high magnetizing inrush current often associated with these systems. As a Class CC time delay fuse, it is both compact and efficient, boasting a robust interrupting rating of up to 200,000 Amperes, making it ideal for branch circuit protection within various industrial applications. Constructed with a durable melamine body and a nickel-plated bronze cap, this fuse ensures reliable operation while minimizing damage from thermal and magnetic effects during short circuits. Compliant with RoHS standards, it encapsulates advanced technology in a small profile with a voltage rating of 600 VAC and a current rating of 5.6 Amperes, allowing for dependable interruption of overcurrents. This innovative solution not only meets industry approvals from UL, CSA, and CE but also exemplifies Littelfuse's commitment to safety and efficiency in electro-mechanical protection.

• High interrupting rating up to 200,000 A AC for superior fault protection
• Time-delay design protects against transformer inrush currents
• Class CC rejection prevents use of incompatible fuses
• Rated for 600 V AC and 300 V DC applications
• Melamine body reduces damage from thermal and magnetic effects
• Nickel-plated bronze caps enhance corrosion resistance and durability
• Ferrule terminal type enables secure electrical connection
• UL, CSA, and CE compliant for assured safety and industry standards
• RoHS compliant for environmentally-friendly design

• Voltage Rating: 600 V AC / 300 V DC
• Current Rating: 5.6 Amp
• Interrupting Rating: 200,000 Amp (Symmetrical), 20,000 Amp (DC)
• Type: Class CC Rejection
• Characteristics: Time Delay
• Diameter: 0.41 in.
• Length: 1.5 in.
• Terminal Type: Ferrule
• Material: Melamine (Body), Nickel-Plated Bronze (Cap)
• Approval: UL 248-4, CSA, CE
• Series/Model: KLDR
