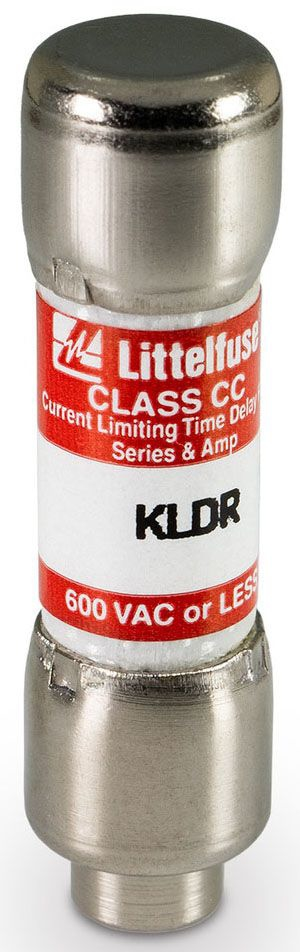

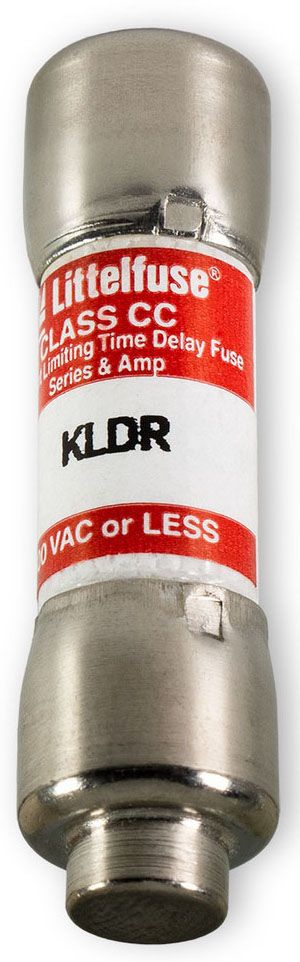

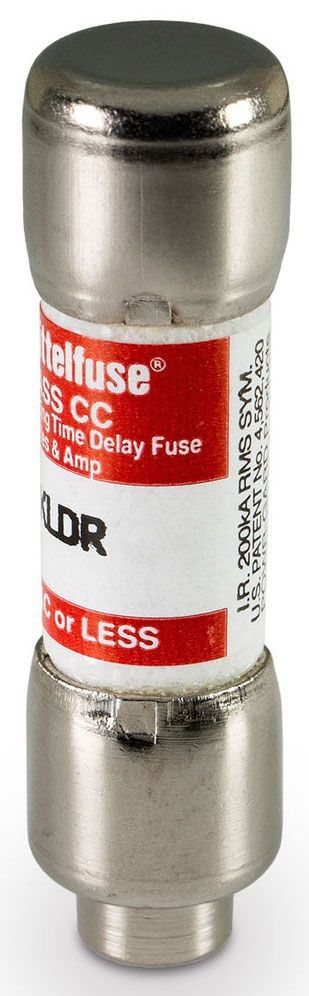

Littelfuse KLDR03.5TXP Class CC Time Delay Fuse 3.5A 600VAC 300VDC Melamine Nickel-Plated Bronze

Engineered for optimal protection in electrical circuits, the KLDR03.5TXP Midget Fuse from Littelfuse represents a reliable solution for transformer applications. This Class CC time delay fuse is specially designed to endure the high magnetizing inrush currents associated with transformers, ensuring that it effectively reduces damage caused by both heating and magnetic effects during short circuit incidents. Capable of interrupting overcurrents up to 200,000 A.I.R., it outperforms mechanical protective devices, providing swift action to mitigate potential hazards. Constructed from durable melamine with a nickel-plated bronze cap, the fuse combines robustness with compliance to RoHS standards, making it a responsible choice for modern electrical systems. With its compact dimensions of 0.41 inches in diameter and 1.5 inches in length, this fuse is among the smallest 600-volt fuses approved for branch circuit protection, making it ideal for a variety of applications while encompassing UL 248-4, CSA, and CE safety approvals for further assurance in performance.

• Class CC rejection feature prevents use of lower-rated fuses
• Time delay design for high magnetizing inrush currents
• Interrupting rating of 200,000 A AC and 20,000 A DC
• Rated for 600 VAC and 300 VDC voltage applications
• Constructed with melamine body for electrical insulation
• Nickel-plated bronze caps resist corrosion for reliable connections
• Ferrule terminal type ensures secure electrical contact
• Compact size suitable for confined spaces
• Complies with UL 248-4, CSA, and CE safety standards
• RoHS compliant supporting environmental safety requirements

• Voltage Rating: 600 VAC / 300 VDC
• Amperage: 3.5 Ampere
• Interrupting Rating: 200,000 Ampere (AC), 20,000 Ampere (DC)
• Time Delay: Yes
• Length: 1.5 in.
• Diameter: 0.41 in.
• Terminal Type: Ferrule
• Type: Class CC Rejection
• Material: Melamine (Body), Nickel-Plated Bronze (Cap)
• Approval: UL 248-4, CSA, CE
• Series/Model: KLDR
• Country of Origin: Mexico
