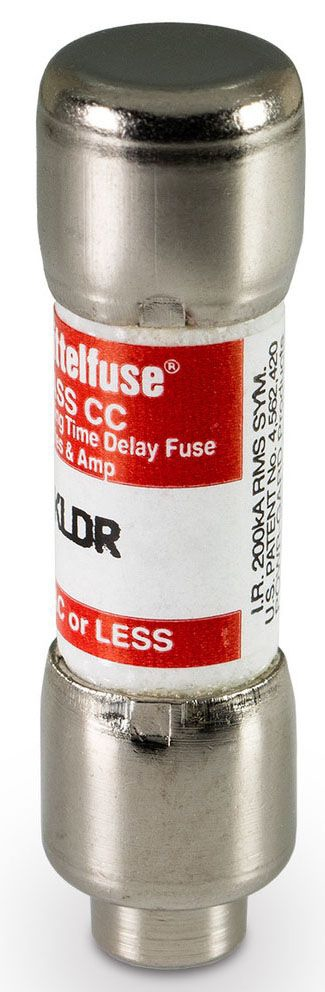

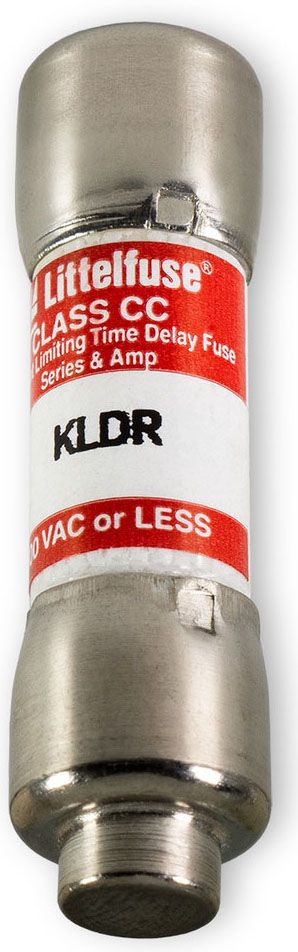

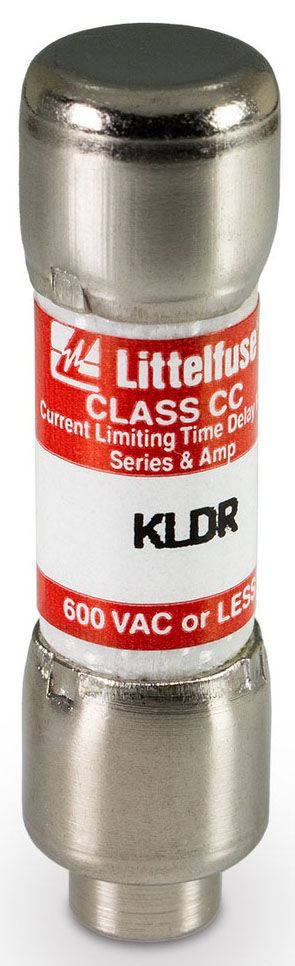

Littelfuse KLDR01.5TXP Class CC Time Delay Fuse 1.5A 600V 20000A Interrupt Melamine Nickel-Plated Bronze

The KLDR01.5TXP Time Delay Fuse from Littelfuse is engineered for applications requiring reliable protection against overcurrent, making it an essential component in power distribution and conversion settings. With its time-delay feature, this fuse can tolerate brief current surges, allowing for the transient demands of devices like variable speed drives and power supplies without interruption. Its current-limiting properties help minimize damage caused by the heating effects of short circuit currents, enhancing overall system safety. Designed with a rejection capability, it prevents the use of inappropriate fuses, ensuring that only fuses with adequate interrupting ratings are utilized. Compliant with RoHS standards and with a robust construction of melamine and nickel-plated bronze, this fuse meets stringent safety approvals including CSA, CE, and UL 248-4, making it a trustworthy choice for critical applications.

• Time-delay design tolerates brief current surges without blowing
• Current-limiting reduces damage from short circuit heating effects
• Rejection capability prevents use of fuses with inadequate interrupting ratings
• Interrupting rating of 20,000 A AC for high fault current protection
• Compliant with UL 248-4, CSA, CE, and RoHS for safety assurance
• 600 V AC and 300 V DC voltage ratings support versatile electrical environments
• Melamine body provides electrical insulation and durability
• Nickel-plated bronze caps ensure corrosion resistance and secure connections
• Suitable for power distribution and conversion applications

• Voltage: 600 V AC, 300 V DC
• Current Rating: 1.5 A
• Interrupting Rating: 20,000 A AC (RMS Symmetrical)
• Fuse Type: Time Delay
• Type: Class CC
• Weight: 0.019 lb (8.62 g)
• Material: Melamine (Body), Nickel-Plated Bronze (Cap)
• Compliance: UL 248-4, CSA, CE, RoHS Certified
• Country of Origin: Mexico
