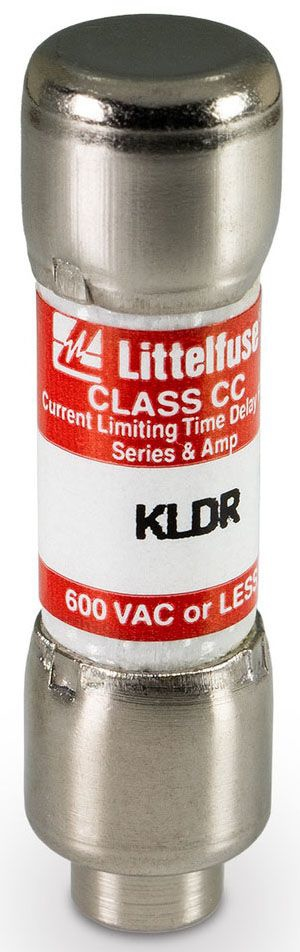

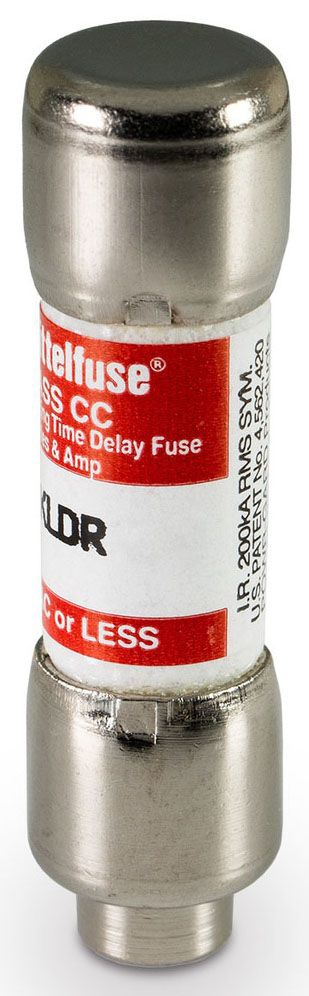

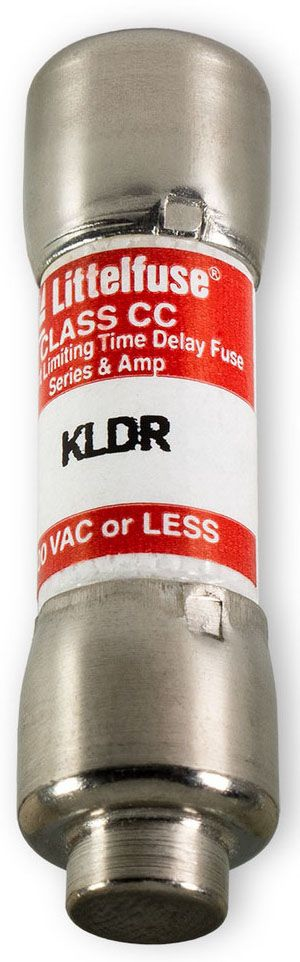

Littelfuse KLDR.750TXP Class CC Time Delay Fuse 0.75A 600VAC 300VDC Melamine Nickel-Plated Bronze

Engineered to provide robust transformer protection, the KLDR.750TXP Midget Fuse from Littelfuse stands out for its reliability and efficiency. Designed with a time-delay characteristic, it is specifically tailored to endure the high magnetizing inrush associated with transformers, ensuring seamless operation even during challenging conditions. This fuse boasts an impressive interrupting rating of 200,000 amperes, allowing for the reliable interruption of all overcurrents, significantly reducing the risk of damage caused by heating and magnetic effects in the event of a short circuit. Constructed from durable materials like melamine for the body and nickel-plated bronze for the cap, it complies with RoHS standards, ensuring a safe and environmentally responsible product choice for branch circuit protection. With its compact size and high performance, this fuse is an essential component for safeguarding electrical systems in a variety of applications.

• Designed for robust transformer protection with time-delay feature
• High interrupting rating of 200,000A AC and 20,000A DC
• Extremely current limiting to reduce heating and magnetic damage
• Class CC rejection feature prevents installation of incompatible fuses
• Constructed with melamine body for electrical insulation and durability
• Nickel-plated bronze caps for corrosion resistance and reliable connection
• Complies with UL 248-4, CSA, and CE safety approvals
• RoHS compliant for environmentally responsible use
• Ferrule terminal type for secure and standardized electrical connection

• Voltage Rating: 600 VAC, 300 VDC
• Amperage: 0.75 Ampere
• Interrupting Rating: 200,000 Ampere (Symmetrical), 20,000 Ampere DC
• Fuse Type: Time Delay
• Type: Class CC Rejection
• Length: 1.5 in.
• Diameter: 0.41 in.
• Terminal Type: Ferrule
• Material: Melamine (Body), Nickel-Plated Bronze (Cap)
• Approval: UL 248-4, CSA, CE
• Current Limiting: Extremely Current Limiting
• Series/Model: KLDR
• Country of Origin: Mexico
• Weight: 0.019 lb (8.62 g)
