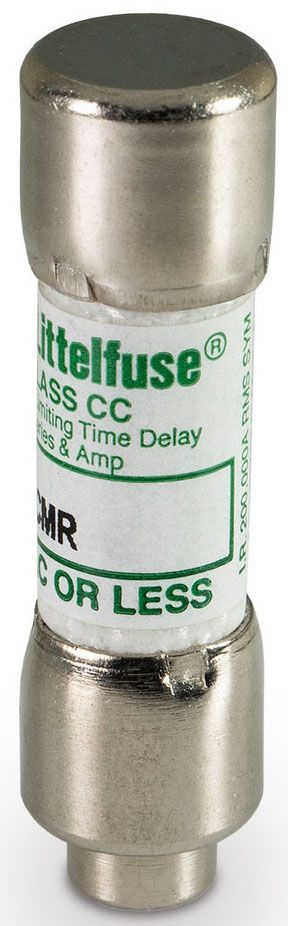

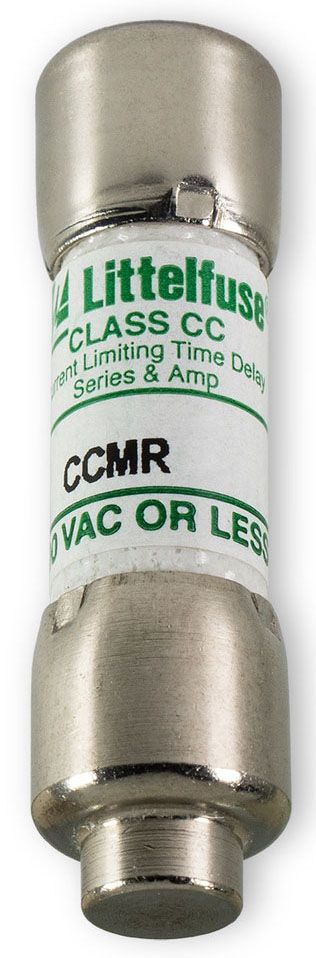

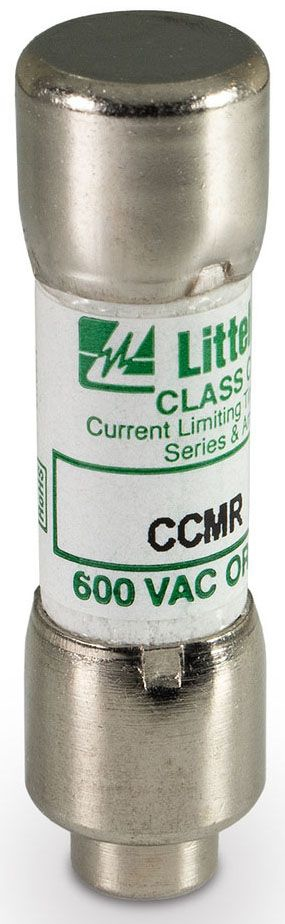

Littelfuse CCMR6.25TXP Class CC Time Delay Dual Element 6.25A 600VAC 250VDC Ferrule

The CCMR6.25TXP Time Delay Fuse from Littelfuse offers advanced protection for motor and motor branch circuits, delivering exceptional reliability in compact formats. With a current rating of 6.25 Amperes and a voltage rating of 600 VAC/250 VDC, this fuse features a dual element, time delay design that reacts quickly to fault conditions, reducing the damage commonly associated with short circuits. Its superior current-limiting capabilities mean that it can stop damaging short circuit events faster than traditional mechanical devices, safeguarding your equipment effectively. Compliant with RoHS standards and recognized by UL, CSA, and CE approvals, this fuse provides robust performance while comfortably fitting in a smaller footprint compared to other fuse classes.

• High interrupting rating (200 kA AC, 20 kA DC) for enhanced safety
• Extremely current limiting reduces damage from short circuits
• Dual element, time delay design for reliable motor circuit protection
• Compact size for space-saving installation
• Rated for 600 VAC and 250 VDC for versatile electrical applications
• Ferrule terminals for secure and consistent connectivity
• UL, CSA, and CE approvals ensuring industry-standard compliance
• RoHS compliant for environmentally responsible use
• Specifically designed for Class CC fuse holders and applications
• Provides superior protection in fraction of space required by other fuse classes

• Current Rating: 6.25 Ampere
• Voltage Rating: 600 VAC/250 VDC
• Interrupting Rating: 200000 Ampere (Symmetrical), 20000 Ampere (DC)
• Type: Class CC
• Characteristics: Dual Element, Time Delay
• Length: 1.5 in.
• Diameter: 0.41 in.
• Terminal Type: Ferrule
• Approval: UL 248-4, CSA, CE
• Compliance: RoHS Compliant
• Series/Model: CCMR
