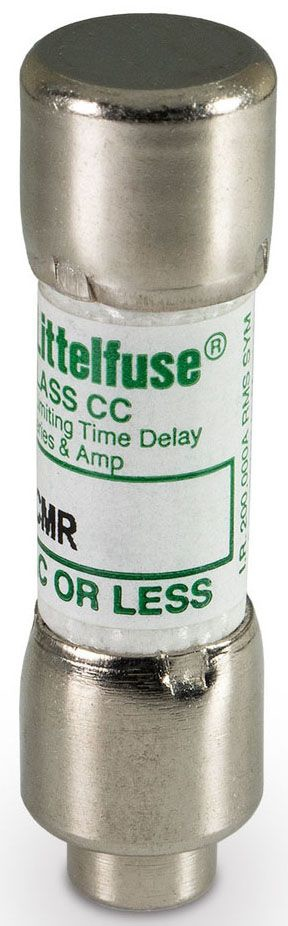

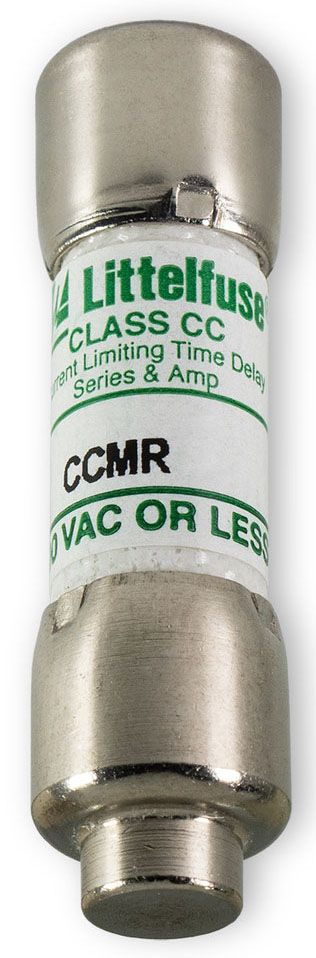

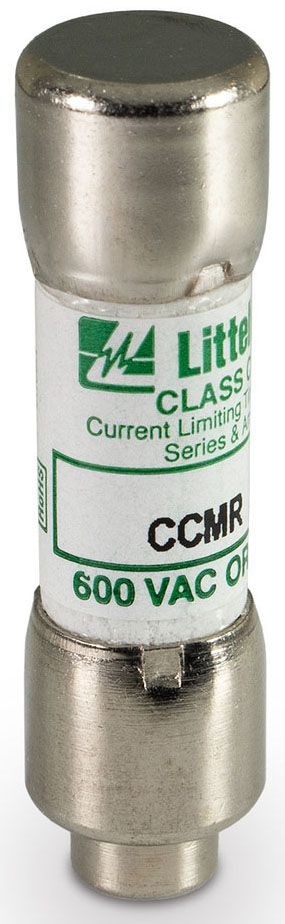

Littelfuse CCMR1.25TXP Class CC Fuse 1.25A Time Delay 600VAC 250VDC Ferrule

The CCMR1.25TXP Time Delay Fuse from Littelfuse exemplifies advanced protection technology for motor and motor branch circuits. This dual-element fuse is designed to swiftly interrupt damaging short circuit currents, ensuring a higher level of safety and reliability compared to mechanical protective devices. Measuring 1.5 inches in length with a diameter of 0.41 inches, it packs superior protection in a compact form factor, making it an efficient choice for modern applications. With a current rating of 1.25 amperes and a remarkable interrupting rating of up to 300,000 amperes, this fuse not only complies with RoHS standards but also meets rigorous certification requirements from UL and CSA, underscoring its trustworthiness in demanding environments.

• Dual-element design for enhanced short circuit and overload protection
• Time-delay capability allows temporary current surges without blowing
• Extremely current-limiting reduces damage from electrical faults
• High interrupting rating up to 300,000 amperes for superior fault clearing
• Rated for 600 VAC and 250 VDC for versatile application compatibility
• Ferrule terminal type ensures reliable electrical connections
• Certified to UL 248-4, CSA, and CE standards for trusted safety and performance
• Compliant with RoHS standards for environmental safety
• Compact 1.5-inch length and 0.41-inch diameter for space-saving installation
• Designed specifically for motor and motor branch circuit protection

• Current Rating: 1.25 Ampere
• Voltage Rating: 600 VAC, 250 VDC
• Interrupting Rating: 200000 Ampere (Symmetrical), 300000 Ampere (Symmetrical, Self-Certified), 20000 Ampere (DC)
• Fuse Type: Dual Element, Time Delay
• Length: 1.5 in.
• Diameter: 0.41 in.
• Terminal Type: Ferrule
• Type: Class CC
• Approvals: UL 248-4, CSA, CE
• Current Limiting: Extremely Current Limiting
• Country of Origin: Mexico
• Series/Model: CCMR
