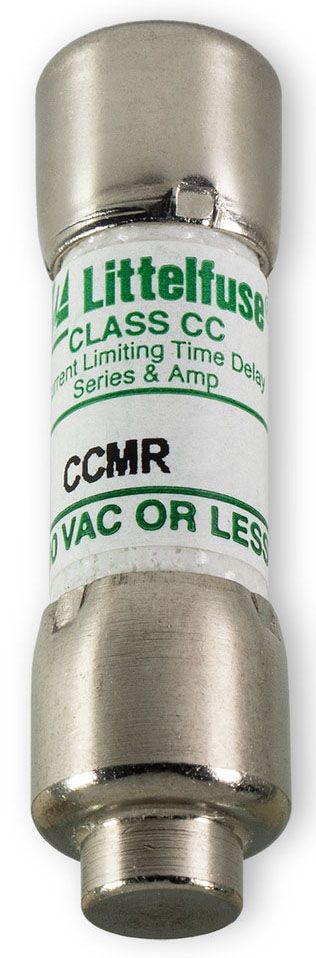

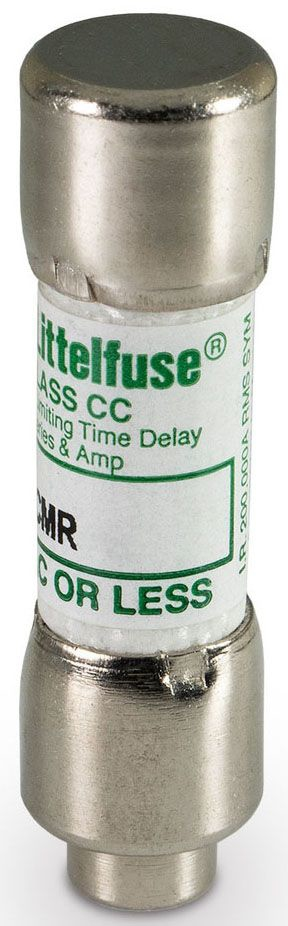

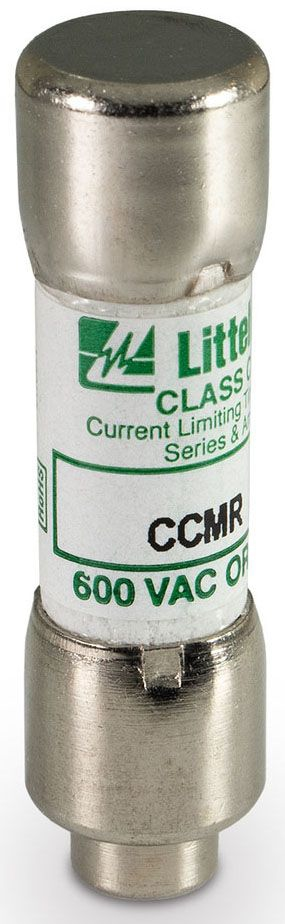

Littelfuse CCMR07.5TXP Class CC Time Delay Dual Element 7.5A 600VAC Ferrule 1.5 in

The time delay fuse model from Littelfuse, known as CCMR07.5TXP, stands out for its compact design and superior protective qualities, making it ideal for motor and motor branch circuit protection. This dual element fuse offers exceptional current limiting capabilities, significantly reducing the damage typically caused by the heating and magnetic effects of short circuit currents. With a high interrupting rating and compliance with several safety standards, including UL and CSA, it ensures reliable operation in demanding environments while occupying less space than other fuse classes. Designed for use in applications where maintaining circuit integrity is critical, this fuse is a dependable choice for both industrial and commercial settings.

• Dual element time delay for motor and branch circuit protection
• Exceptional current-limiting to minimize short circuit damage
• High interrupting rating for reliable operation in demanding environments
• Compact design for space-saving installation
• UL 248-4, CSA, and CE safety standard compliance for assured protection
• 600 VAC / 250 VDC voltage rating suitable for various electrical systems
• Ferrule terminal type for secure and stable connections
• Class CC fuse type optimized for motor and power management applications
• RoHS compliant for environmental safety
• Designed for industrial and commercial circuit integrity maintenance

• Voltage Rating: 600 VAC / 250 VDC
• Amperage: 7.5 Ampere
• Interrupting Rating: 200000 Ampere (Symmetrical), 300000 Ampere (Self-Certified), 20000 Ampere (DC)
• Length: 1.5 in.
• Diameter: 0.41 in.
• Fuse Type: Dual Element, Time Delay
• Terminal Type: Ferrule
• Type: Class CC
• Approval: UL 248-4, CSA, CE
• Series/Model: CCMR
• Compliance: RoHS Compliant
• Country of Origin: Mexico
