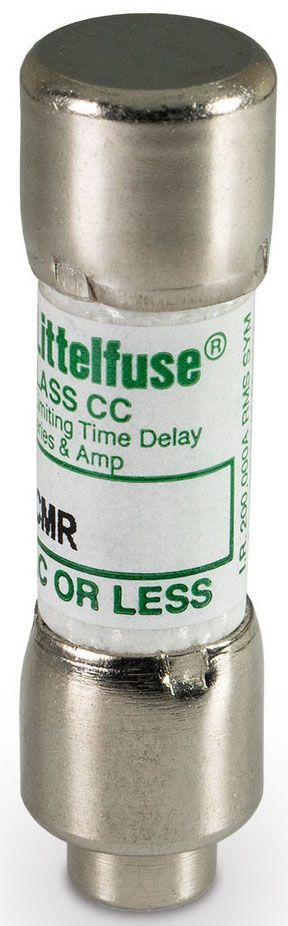

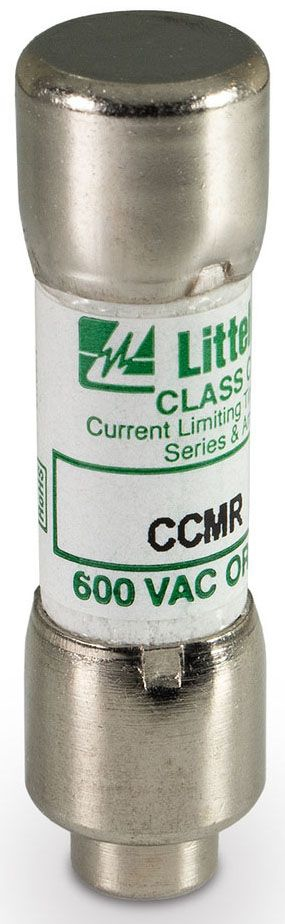

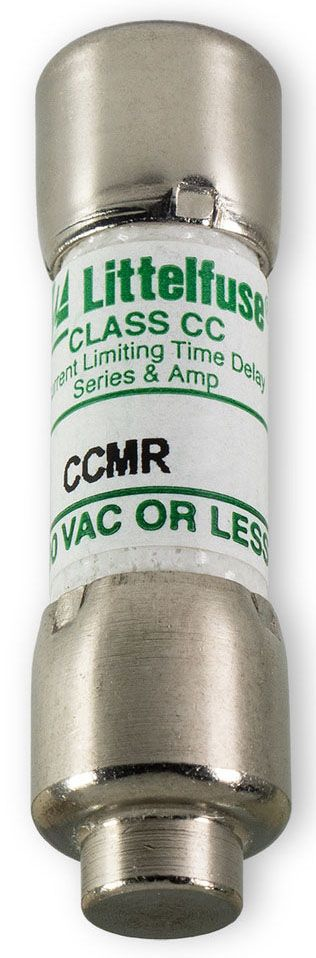

Littelfuse CCMR05.6TXP Class CC Fuse 5.6A 600VAC 250VDC Dual Element Time Delay Ferrule
Documents
The Littelfuse CCMR05.6TXP Time Delay Fuse stands out with its exceptional current-limiting capabilities, significantly reducing damage from the heating and magnetic effects of short circuits. Designed for motor and motor branch circuit protection, it operates efficiently within a compact size while offering superior protection compared to other fuse classes. This dual-element, time-delay solution is not only RoHS compliant, but it also boasts impressive interrupting ratings of up to 200,000 Amperes for symmetrical currents. With a voltage rating suitable for both AC and DC applications, this fuse ensures your electrical systems operate safely and reliably, making it an indispensable component in high-performance settings.
- Extremely current-limiting to minimize short circuit damage
- Dual-element time-delay design protects motors during startup surges
- High interrupting rating up to 200,000 A symmetrical for reliable fault clearing
- Compact Class CC size saves installation space
- Ferrule terminal type ensures secure and reliable connections
- Rated for both AC (600 V) and DC (250 V) applications
- RoHS compliant and UL, CSA, CE certified for safety assurance
- Specifically designed for motor and motor branch circuit protection
- Self-certified 300 kA interrupting rating for enhanced safety margin
- Amperage: 5.6 Ampere
- Interrupting Rating: 200000 Ampere (Symmetrical), 300000 Ampere (Self-Certified), 20000 Ampere (DC)
- Voltage Rating: 600 VAC, 250 VDC
- Fuse Type: Time Delay
- Type: Class CC
- Length: 1.5 in.
- Diameter: 0.41 in.
- Material: Dual Element
- Terminal Type: Ferrule
- Compliance: UL 248-4, CSA, CE, RoHS
- Series/Model: CCMR
- Country of Origin: Mexico
