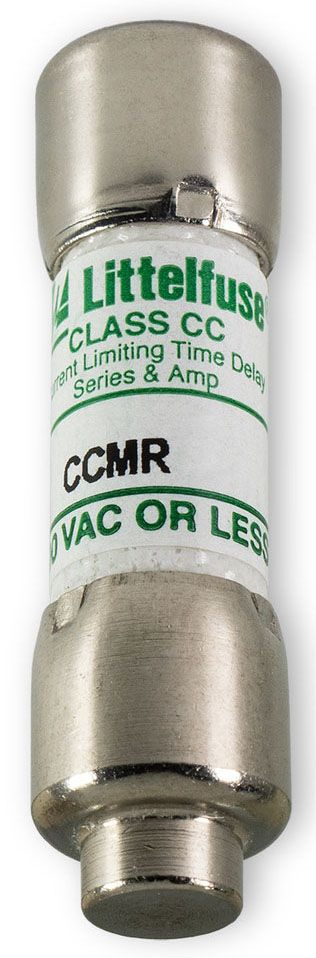

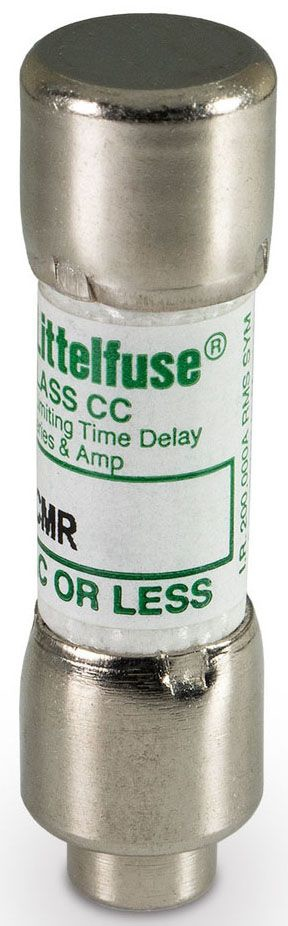

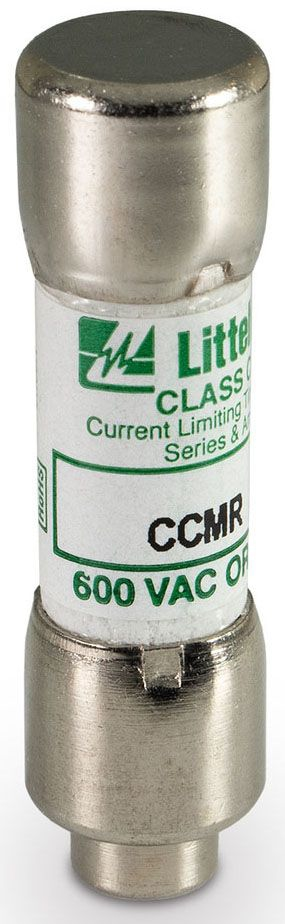

Littelfuse CCMR04.5TXP Class CC Time Delay Dual Element 4.5A 600VAC 250VDC Ferrule
Documents
Engineered for exceptional safety and performance, the Time Delay Fuse by Littelfuse is a highly effective solution for motor and motor branch circuit protection. This dual-element fuse features an impressive interrupting rating of up to 200,000 amperes for symmetrical currents, enabling it to swiftly address damaging short circuit conditions faster than traditional mechanical devices. Its compact design not only provides superior protection but does so in a fraction of the space required by other fuse classes, making it an ideal choice for installations where space is at a premium. Furthermore, the fuse adheres to strict RoHS compliance and is recognized under multiple standards, including UL 248-4 and CSA, ensuring peace of mind in both functionality and environmental impact.
- Extremely current limiting for fast short circuit interruption
- Dual-element time-delay design for motor circuit protection
- Interrupting rating up to 200,000 A symmetrical for rapid fault clearing
- Compact Class CC size ideal for space-saving installations
- Certified to UL 248-4, CSA, and CE standards for reliable safety compliance
- RoHS compliant for reduced environmental impact
- Suitable for use in 600 VAC and 250 VDC systems
- Ferrule terminal type ensures secure electrical connections
- Interrupting Rating: 200000 A Symmetrical, 300000 A Symmetrical Self-Certified, 20000 A DC
- Current Rating: 4.5 Ampere
- Voltage Rating: 600 VAC, 250 VDC
- Type: Class CC
- Fuse Characteristics: Dual Element, Time Delay
- Length: 1.5 in.
- Diameter: 0.41 in.
- Terminal Type: Ferrule
- Approval: UL 248-4, CSA, CE
- Series/Model: CCMR
- Country of Origin: Mexico
