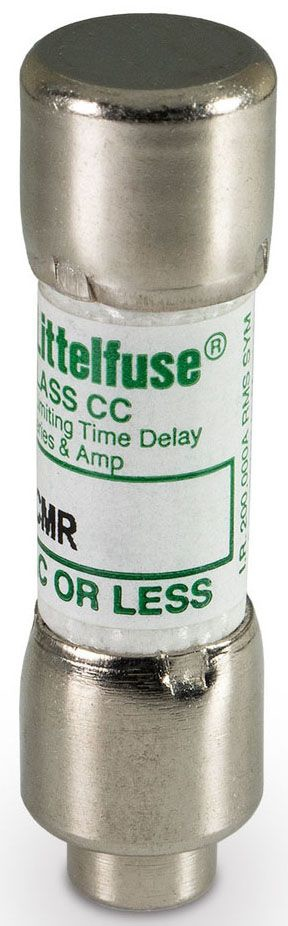

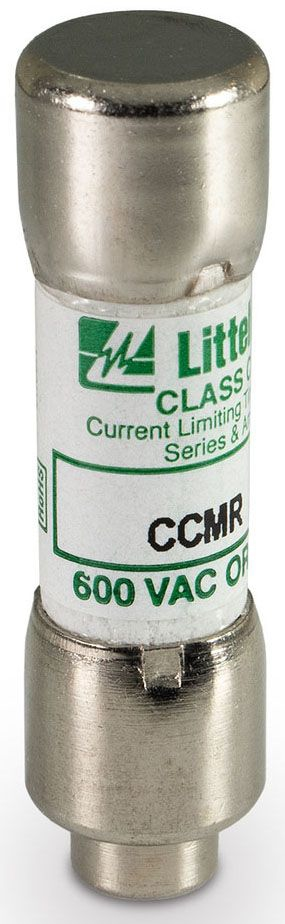

Littelfuse CCMR03.5TXP Class CC Time Delay Fuse 3.5A 600VAC/300VDC Dual Element Ferrule

Offering unparalleled space efficiency and protection, this time delay fuse is designed to safeguard motor and motor branch circuits effectively. Manufactured by Littelfuse, it boasts a compact design with a diameter of just 0.41 inches, making it ideal for installations where space is at a premium. The fuse features a robust interrupting rating of up to 200,000 Amperes for symmetrical currents, ensuring rapid response to short circuits while limiting the damage caused by excessive heating and magnetic forces. Made with a commitment to safety, it is both lead-free and RoHS compliant, catering to modern environmental standards. The dual-element, time-delay characteristics allow the fuse to manage overloads effectively, distinguishing it from traditional mechanical protective devices. With approvals including UL 248-4 and CSA, this Class CC fuse meets stringent safety requirements, guaranteeing reliable performance in a range of applications up to 600 VAC or 300 VDC.

• Provide superior protection in a fraction of the space
• Dual element time-delay for effective overload protection
• High interrupting rating up to 200,000 A symmetrical current
• Capable of protecting motors and motor branch circuits
• Rated for up to 600 VAC and 300 VDC applications
• Ferrule terminal type for reliable electrical connection
• Class CC fuse for efficient current limiting
• Lead-free and RoHS compliant for environmental safety
• UL 248-4 and CSA approved for trusted safety standards

• Current Rating: 3.5 Ampere
• Fuse Type: Dual Element, Time Delay
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 200000 Ampere (Symmetrical), 300000 Ampere (Symmetrical, Self-Certified), 20000 Ampere (DC)
• Diameter: 0.41 in.
• Length: 1.5 in.
• Terminal Type: Ferrule
• Type: Class CC
• Approval: UL 248-4, CSA, CE
• Country of Origin: Mexico
• Series/Model: CCMR
