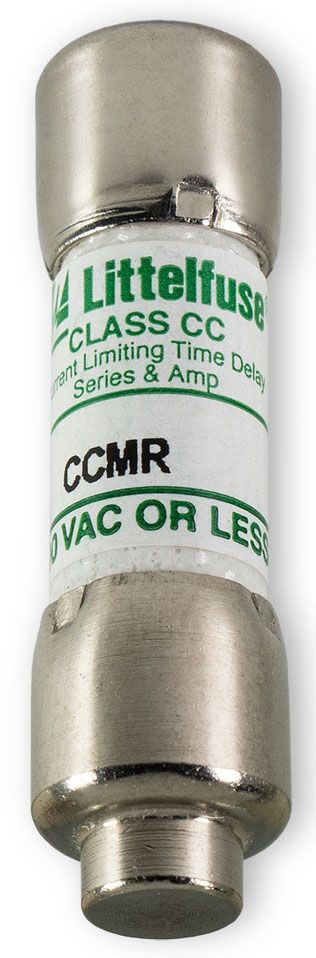

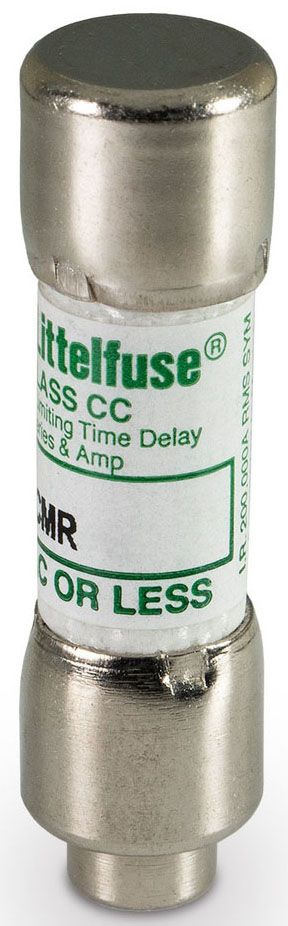

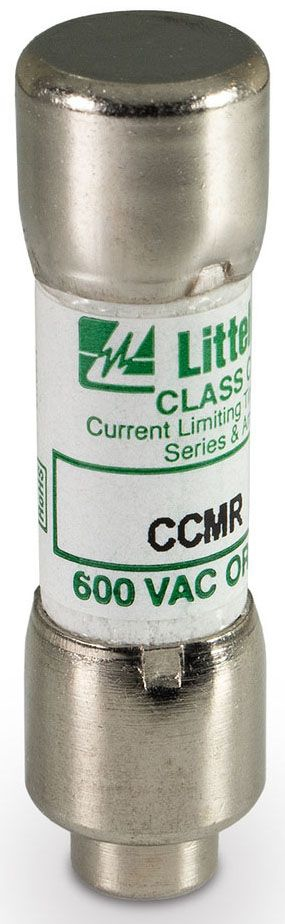

Littelfuse CCMR03.2TXP Time Delay Class CC Fuse 3.2A 600VAC 300VDC Ferrule
Documents
Engineered for exceptional performance, the time delay fuse from Littelfuse offers unparalleled protection against the potentially damaging effects of short circuit currents. This Class CC fuse is designed to limit current effectively, reducing heat and magnetic damage more swiftly than traditional mechanical devices, making it ideal for motor and motor branch circuit protection. With a robust voltage rating of 600 VAC and 300 VDC, and approvals from UL, CSA, and CE, it stands out not only for its effectiveness but also for its compliance with RoHS standards. Its dual-element, time delay characteristics ensure that it provides superior protection in compact spaces, making it an essential component for modern electrical systems.
- Current-limiting design reduces heat and magnetic damage
- Dual element, time delay design for motor protection
- Rated for 600 VAC and 300 VDC electrical applications
- Compact Class CC size for space-saving installations
- UL, CSA, and CE approved for industry compliance
- RoHS compliant for environmental safety
- Self-certified 300 kA interrupting rating for fault durability
- Ferrule terminal type ensures reliable electrical connection
- Specifically designed for motor and motor branch circuit protection
- Voltage Rating: 600 VAC, 300 VDC
- Amperage: 3.2 Ampere
- Interrupting Rating: 200000 Ampere (Symmetrical), 300000 Ampere (Symmetrical, Self-Certified), 20000 Ampere (DC)
- Fuse Type: Dual Element, Time Delay
- Length: 1.5 in.
- Diameter: 0.41 in.
- Type: Class CC
- Approval: UL 248-4, CSA, CE
- Terminal Type: Ferrule
- Series/Model: CCMR
- Country of Origin: Mexico
