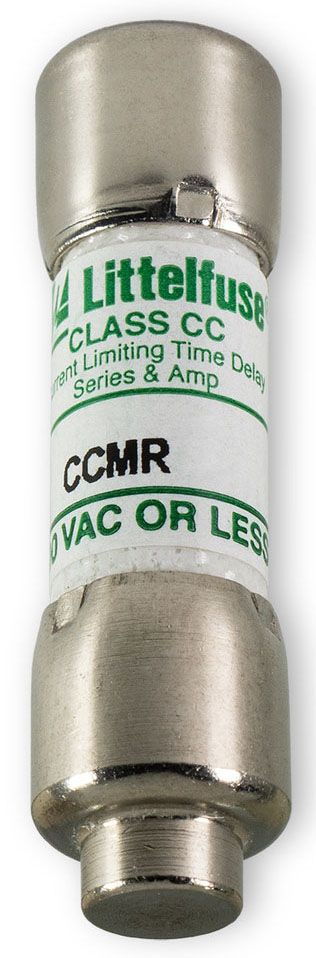

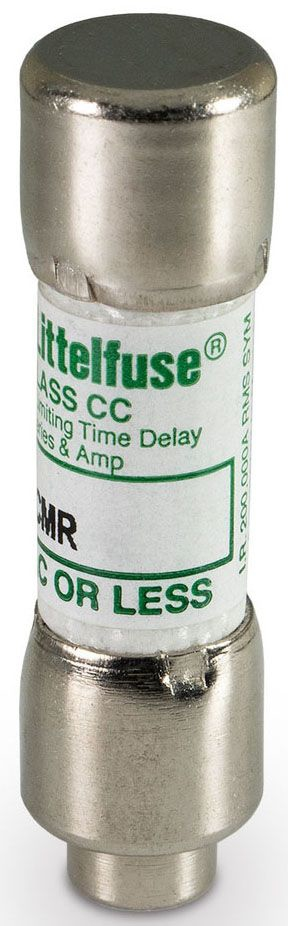

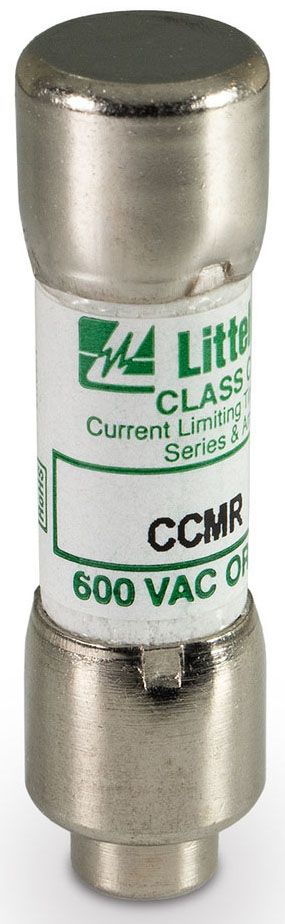

Littelfuse CCMR02.8TXP Class CC Time Delay Dual Element 2.8A 600VAC 300VDC Ferrule

The Littelfuse CCMR02.8TXP Time Delay Fuse is engineered to provide outstanding motor and motor branch circuit protection, ensuring operational integrity in critical applications. With its dual element and time delay characteristics, this fuse effectively manages inrush currents, allowing for superior protection against damaging short circuits—more efficiently than traditional mechanical protective devices. Its compact design not only saves space but also offers extreme current limiting capabilities, significantly reducing heat and magnetic effects that could compromise the system. Certified under UL 248-4, CSA, and CE, this RoHS-compliant fuse is rated for voltages up to 600 VAC and 300 VDC, making it an essential component for modern electrical safety standards.

• Dual element with time delay for motor and branch circuit protection
• Extremely current-limiting to reduce heat and magnetic effects
• Compact Class CC design for space-saving installation
• Certified to UL 248-4, CSA, and CE standards for safety assurance
• Rated for 600 VAC and 300 VDC for versatile electrical applications
• RoHS compliant for environmental safety
• Ferrule terminal type for secure connection
• High interrupting rating (up to 300 kA self-certified) for fault tolerance
• Engineered to withstand motor starting currents and inrush currents

• Amperage: 2.8 Ampere
• Voltage: 600 V AC, 300 V DC
• Interrupting Rating: 200000 Ampere (Symmetrical), 300000 Ampere (Symmetrical, Self-Certified), 20000 Ampere (DC)
• Fuse Type: Time-Delay, Dual Element
• Length: 1.5 in.
• Diameter: 0.41 in.
• Terminal Type: Ferrule
• Type: Class CC
• Approval: UL 248-4, CSA, CE
• Series/Model: CCMR
• Country of Origin: Mexico
