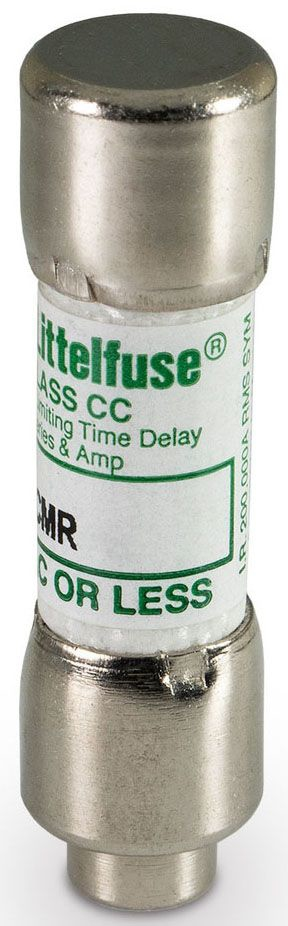

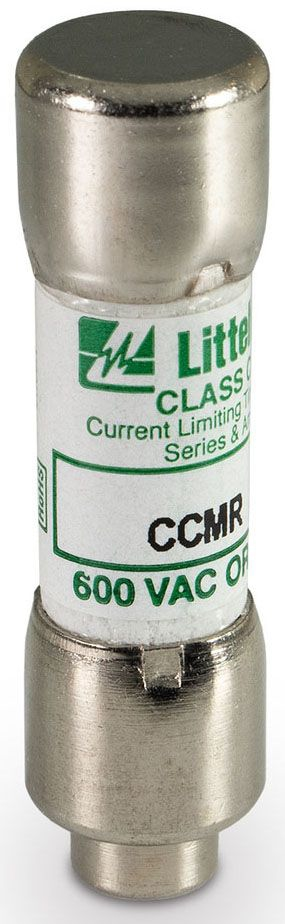

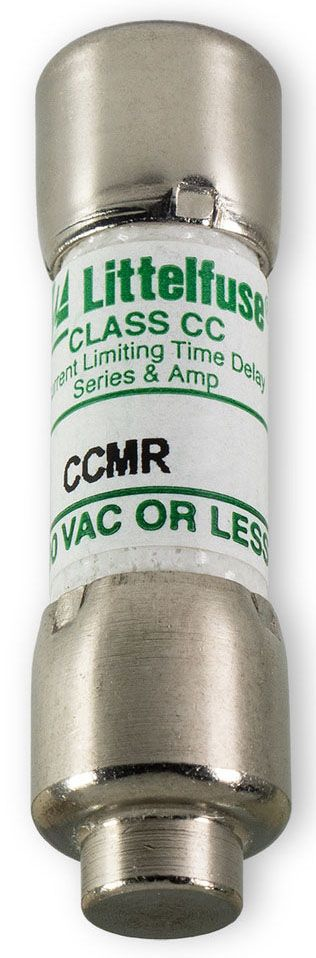

Littelfuse CCMR009.TXP Class CC Time Delay Dual Element Fuse 9A 600VAC 250VDC Ferrule
Documents
Littelfuse's Time Delay Fuse is engineered for optimal motor and motor branch circuit protection, distinguishing itself with its compact design that offers superior protection while occupying a fraction of the space required by other fuse classes. With a robust current rating of 9 Amperes and a notable interrupting rating of up to 200,000 Amperes, this Class CC fuse is designed to effectively limit current, minimizing damage from heating and magnetic effects during short circuits. Its dual-element, time-delay characteristics enhance reliability by stopping damaging currents faster than mechanical protective devices. Additionally, the fuse is RoHS compliant and meets the stringent standards set by UL, CSA, and CE, making it an ideal choice for industrial applications where safety and space efficiency are paramount.
- Extremely current-limiting reduces short circuit damage
- Dual-element, time-delay design for reliable motor protection
- High interrupting rating up to 200,000 Amperes
- Compact design saves space compared to other fuse classes
- RoHS compliant for environmental safety
- Meets UL, CSA, and CE safety standards
- Ferrule terminal ensures secure electrical connections
- Class CC rating for standardized system compatibility
- Designed specifically for motor and motor branch circuit protection
- Voltage: 600 VAC, 250 VDC
- Amperage: 9 Ampere
- Interrupting Rating: 200000 Ampere (Symmetrical), 300000 Ampere (Self-Certified), 20000 Ampere DC
- Length: 1.5 in.
- Diameter: 0.41 in.
- Fuse Type: Dual Element, Time Delay
- Type: Class CC
- Terminal Type: Ferrule
- Approval: UL 248-4, CSA, CE
- Series/Model: CCMR
- Country of Origin: Mexico
