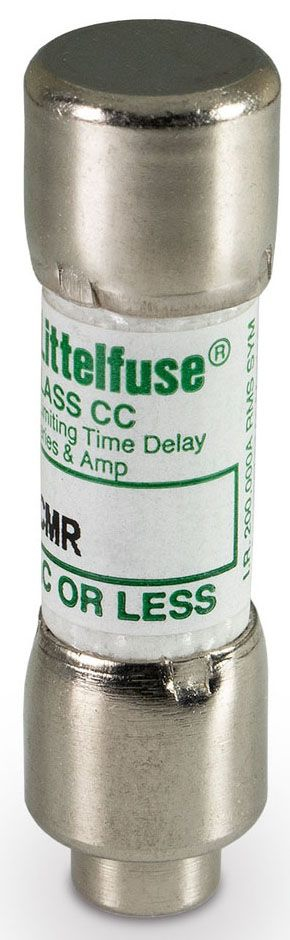

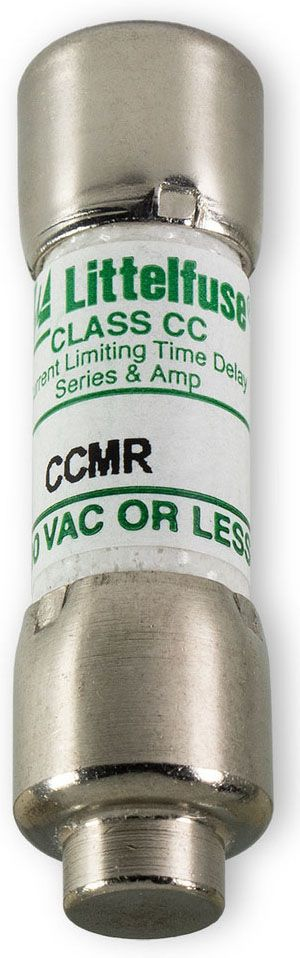

Littelfuse CCMR007.TXP Class CC Fuse 7A 600V Time Delay Current Limiting

The CCMR007.TXP Time Delay Fuse from Littelfuse is engineered to provide robust protection in motor circuits, offering Type 2 no damage protection that ensures compatibility with both NEMA and IEC-type motor components. With its Power-Pro Technology, this fuse delivers superior shielding against electrical system damage while featuring dual-element, time-delay protection that mitigates the risk of unwanted fuse openings caused by surge currents in small horsepower motors. Its extremely current-limiting design further enhances safety, effectively reducing damage from heating and magnetic effects during short-circuit conditions. Suitable for motor and motor branch circuit protection, as well as for use in contactors and general industrial applications, this fuse is available with a current rating of 7 Amps and can handle voltages up to 600 volts, ensuring reliable performance in demanding environments.

• Type 2 No Damage protection for motor circuit components
• Dual-element, time-delay design prevents unwanted fuse openings from surge currents
• Extremely current-limiting to reduce damage from short-circuit heating and magnetic effects
• Power-Pro Technology for superior electrical system damage protection
• 600 V AC voltage rating for demanding industrial environments
• Self-certified high interrupting ratings up to 300 kA AC and 20 kA DC
• Compatible with NEMA and IEC-type motor circuits
• Compact Class CC size for space-saving installation
• UL Listed, CSA Certified, CE and RoHS compliant for regulatory assurance
• Suitable for motor, motor branch circuit, contactor, and general industrial protection

• Voltage Rating: 600 V AC, 250/300/500 V DC
• Current Rating: 7 A
• Interrupting Rating: 200 kA AC (RMS Symmetrical), 300 kA AC (Littelfuse Self-Certified), 20 kA DC (Littelfuse Self-Certified)
• Fuse Type: Class CC, Dual Element, Time-Delay
• Protection Type: Type 2 No Damage, Extremely Current-Limiting
• Compliance: CSA, CE, UL 248-4/248-18, RoHS Compliant
• Country of Origin: Mexico
