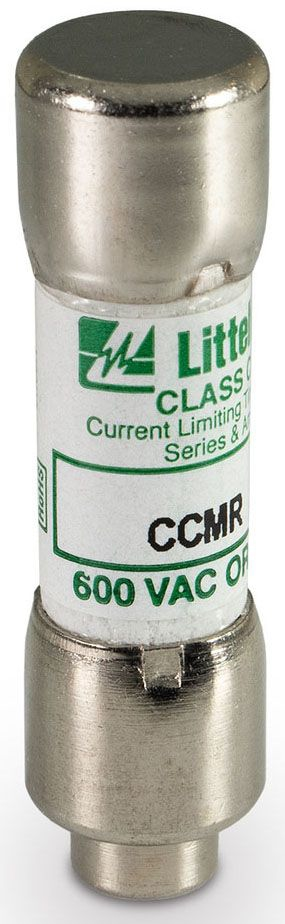

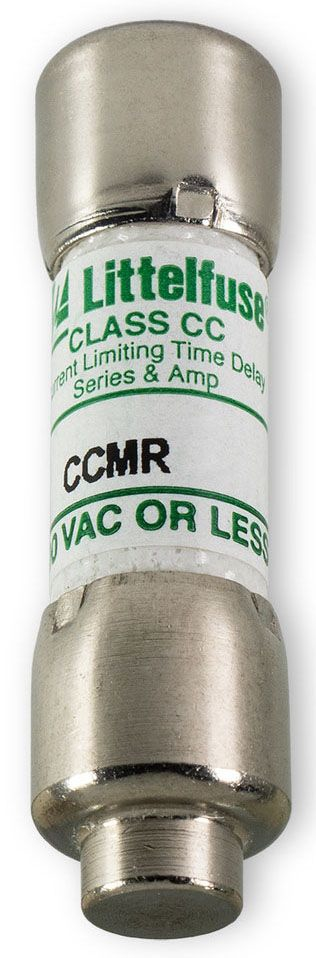

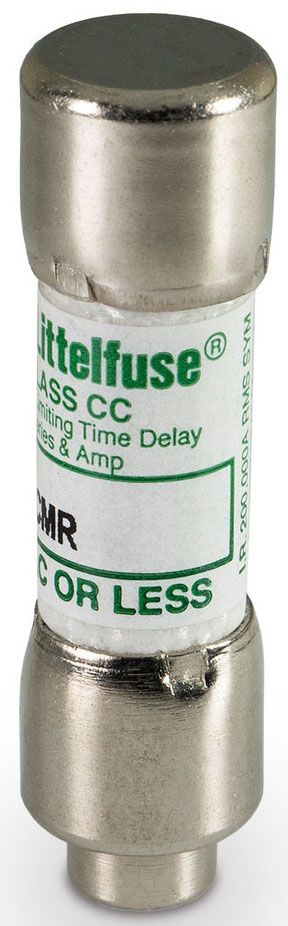

Littelfuse CCMR.800TXP Class CC Time Delay Dual Element 0.8A 600VAC Ferrule Terminal

The Littelfuse CCMR.800TXP Time Delay Fuse offers advanced protection in a compact design, ideal for motor and motor branch circuit applications. With a significant interrupting rating of up to 200,000 amperes, this fuse provides exceptional current limiting capabilities, effectively mitigating the damage caused by the excessive heating and magnetic effects of short circuits. Its dual element time delay characteristics ensure reliable performance by allowing temporary overloads while swiftly responding to damaging short circuits—making it faster than traditional mechanical protective devices. Compliant with RoHS standards and backed by approvals from UL, CSA, and CE, this time delay fuse meets stringent safety requirements while maximizing efficiency in various electrical settings.

• High interrupting rating up to 200,000 amperes for superior short circuit protection
• Extremely current-limiting to reduce damage from excessive heating and magnetic effects
• Dual element time delay construction allows temporary overloads while quickly clearing faults
• Faster response than traditional mechanical protective devices for enhanced safety
• Compact design ideal for motor and motor branch circuit protection
• RoHS compliant to meet environmental standards
• UL, CSA, and CE approved for assurance of safety and compliance
• Ferrule terminal type for secure electrical connection
• Class CC fuse type ensuring compatibility with standard Class CC fuse holders

• Voltage: 600 VAC/250 VDC
• Amperage: 0.8 Ampere
• Interrupting Rating: 200000 Ampere (Symmetrical), 300000 Ampere (Self-Certified), 20000 Ampere (DC)
• Type: Class CC
• Element: Dual Element
• Time Delay: Time Delay
• Length: 1.5 in
• Diameter: 0.41 in
• Terminal Type: Ferrule
• Approval: UL 248-4, CSA, CE
• Series/Model: CCMR
• Country of Origin: Mexico
