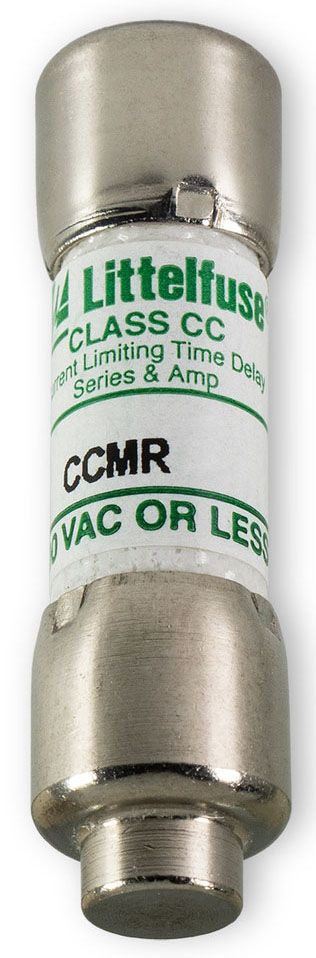

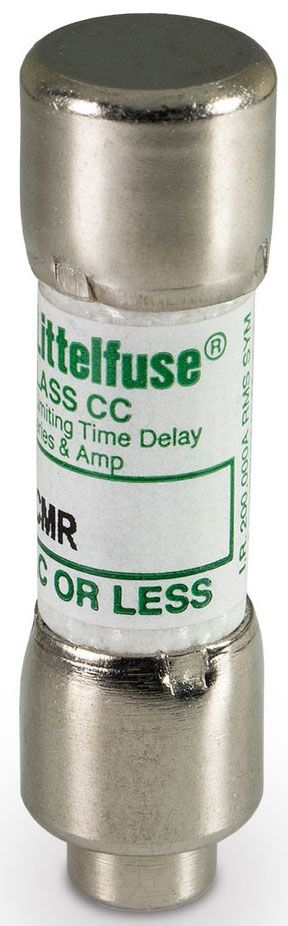

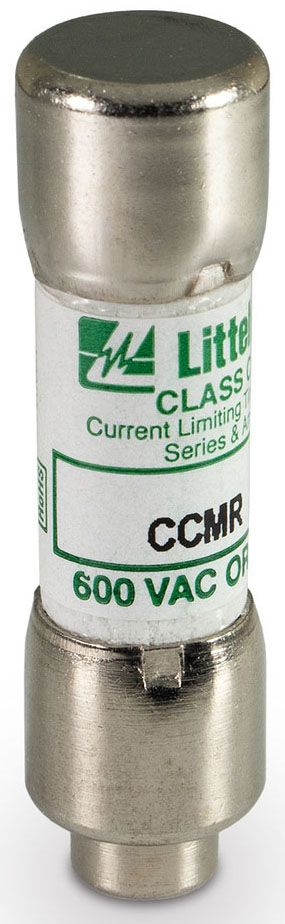

Littelfuse CCMR.200TXP Time Delay Class CC Fuse 0.2A 600VAC250VDC Ferrule
Documents
Littelfuse's time delay fuse combines reliability and performance, effectively interrupting overcurrents up to 200,000 amps, making it an essential component for motor and motor branch circuit protection. Its innovative POWR-PRO® performance ensures that it addresses the damaging effects of short circuit currents swiftly, outpacing traditional mechanical protective devices in safeguarding your circuitry. This dual-element, time delay design is RoHS compliant and features a terminal type of ferrule, ensuring compatibility across various applications while maintaining a critical current rating of 0.2 ampere. With comprehensive approvals from UL, CSA, and CE, this fuse stands out as a robust solution for enhancing electrical system integrity.
- Time delay dual-element design for motor circuit protection
- Extremely current limiting stopping damaging short circuits faster
- POWR-PRO® performance for rapid short circuit interruption
- Rated for up to 200 kA rms symmetrical AC interrupting capacity
- Compatible with circuits up to 600 VAC and 250 VDC
- Ferrule terminal type for broad application compatibility
- UL, CSA, and CE approvals for industry compliance and safety
- RoHS compliant for environmental safety
- Compact Class CC size for space-saving installation
- Rated for motor protection applications up to 40 HP
- Current Rating: 0.2 Ampere
- Voltage Rating: 600 VAC/250 VDC
- Interrupting Rating: 200 kA rms symmetrical AC, 20 kA DC
- Max Motor HP: 40 HP
- Length: 1.5 in.
- Diameter: 0.41 in.
- Type: Class CC
- Terminal Type: Ferrule
- Characteristics: Dual Element, Time Delay
- Approval: UL 248-4, CSA, CE
- Series/Model: CCMR
- Country of Origin: Mexico
