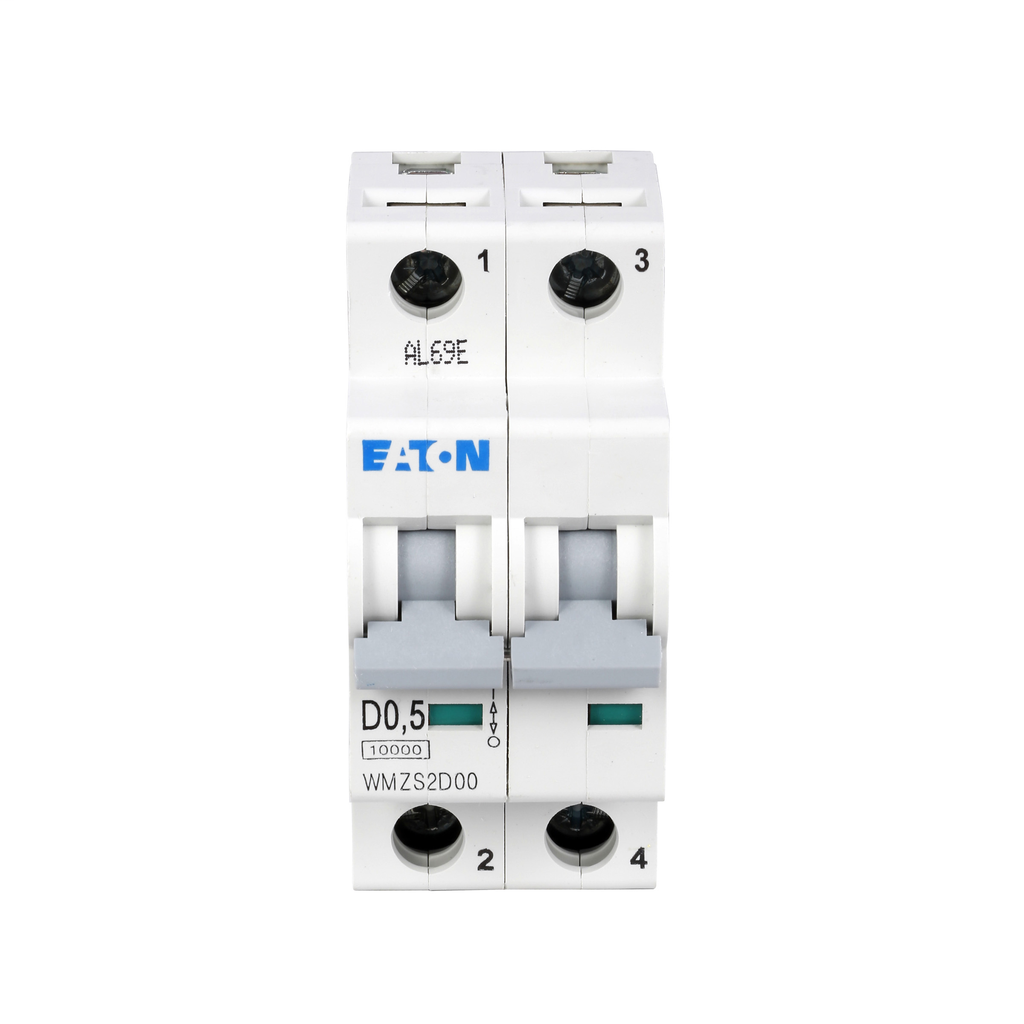

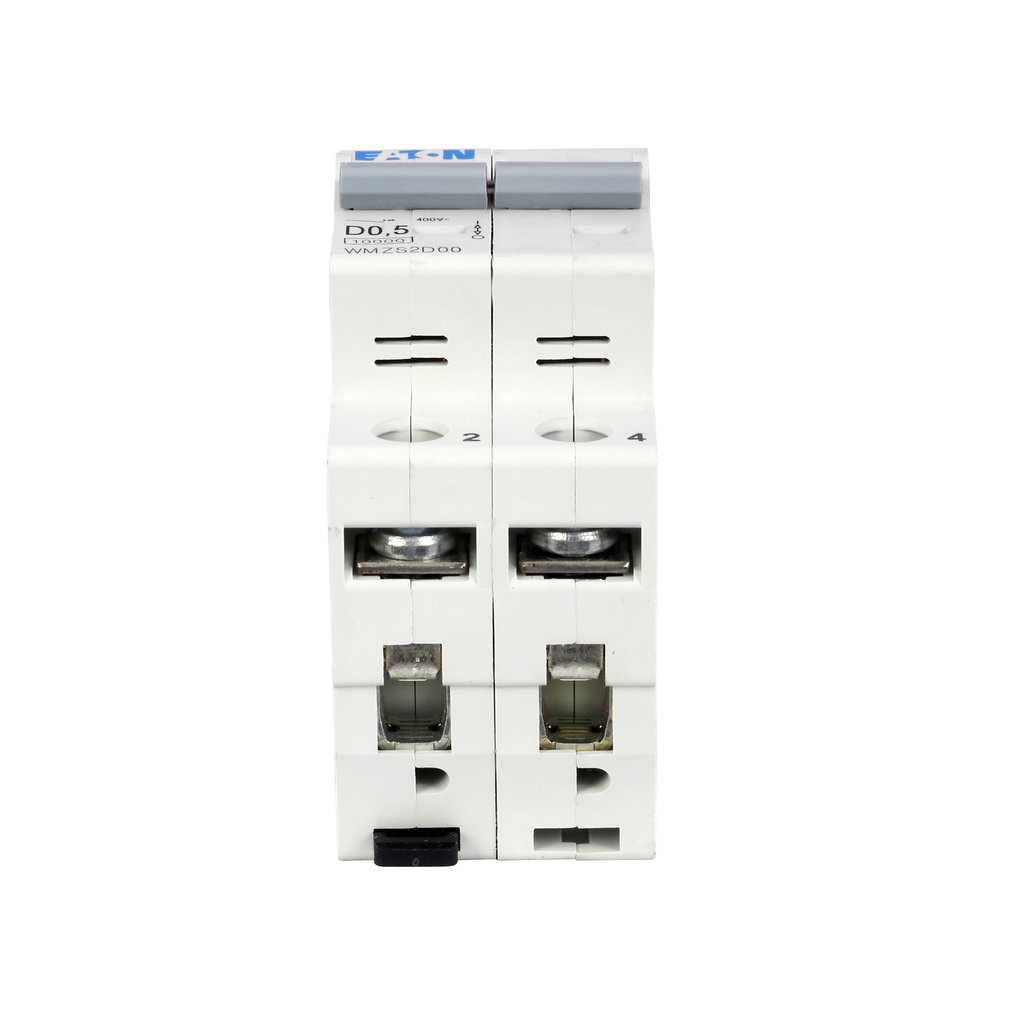

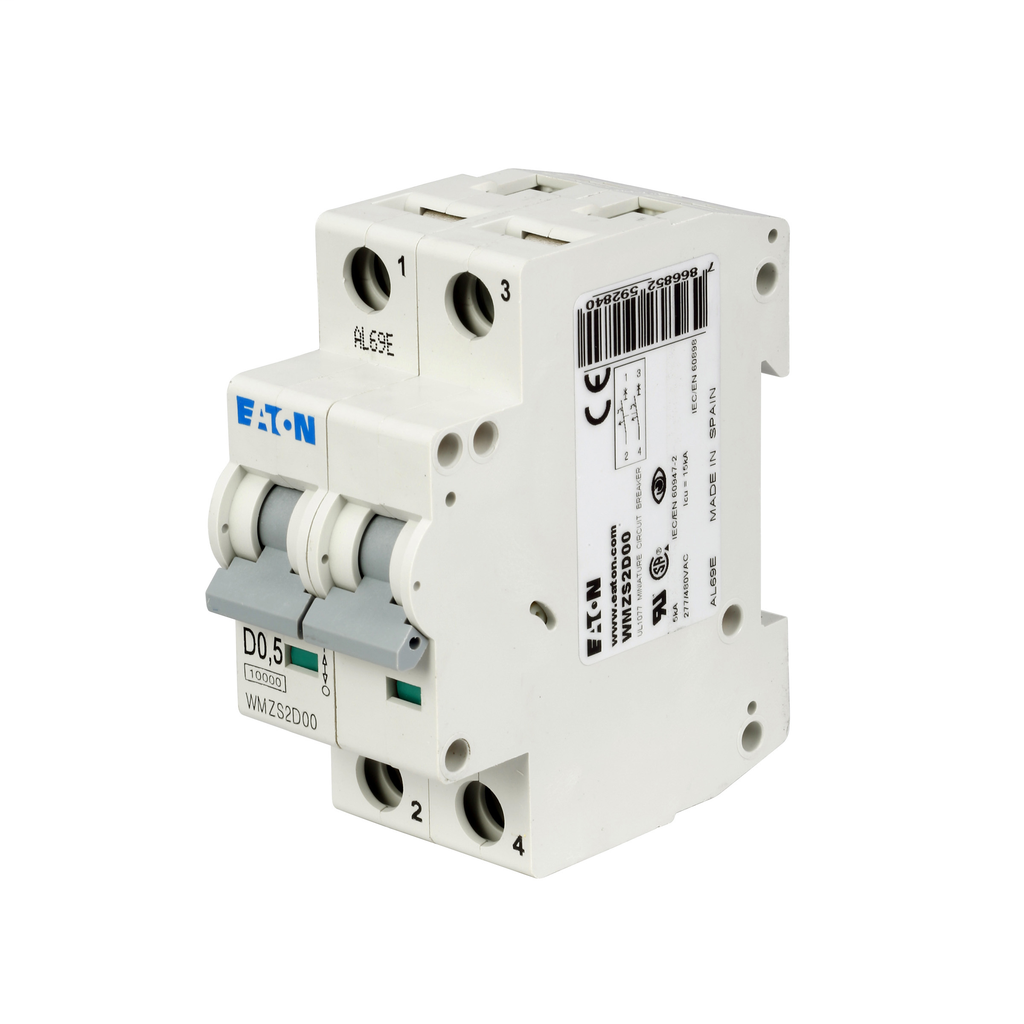

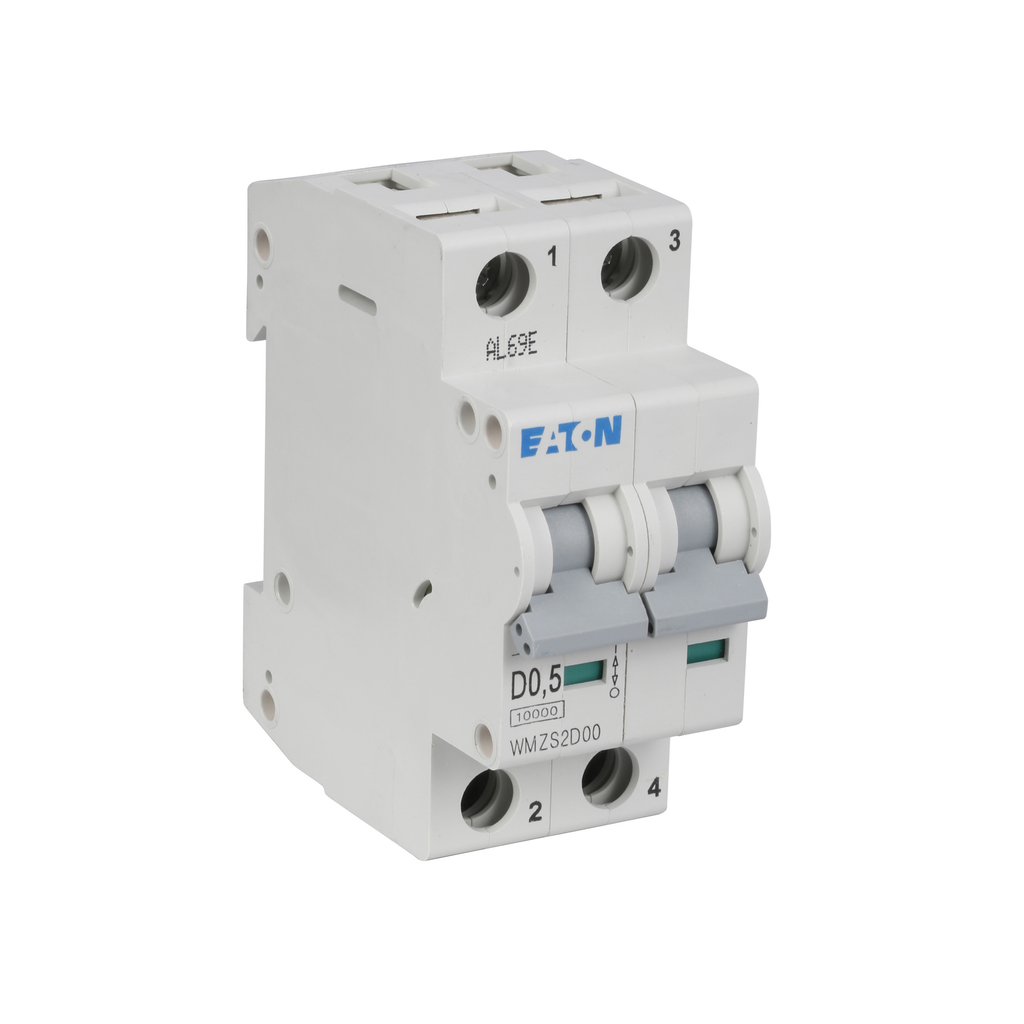

Cutler-Hammer WMZS2D05 DIN Rail Circuit Breaker Two-Pole 5A D Curve 10 kAIC 277/480V Standard Box Terminals
This DIN rail mountable circuit breaker offers robust circuit protection with a D Curve characteristic, specifically designed for efficient supplementary protection in various applications. With a compact size, it features standard box terminals and is engineered to handle an amperage rating of 5A, ensuring reliable operation in demanding environments. Its remarkable interrupt rating of 10 kAIC at 277/480 Vac enhances safety by safeguarding against overcurrent conditions, making it an essential component for any professional electrical installation. The UL 1077 certification underscores its adherence to rigorous industry standards, confirming its reliability and performance.
- 10 kAIC interrupt rating enhances overcurrent safety
- D Curve characteristic for efficient supplementary protection
- Two-pole design for reliable dual circuit protection
- Rated at 5A amperage for stable current handling
- Compliance with UL 1077, IEC 60947-2, CSA, RoHS, and CE ensuring safety and quality standards
- DIN rail mountable for easy panel installation
- Standard box terminals for straightforward wiring
- Compact size for space-saving electrical panels
- Amperage: 5A
- Interrupt Rating: 10 kAIC at 277/480 Vac
- Voltage Rating: 277/480V
- Number of Poles: Two-pole
- Height: 3.15 in
- Width: 3.01 in
- Length: 1.38 in
- Type: DIN rail mountable circuit breaker
- Terminals: Standard box terminals
- Circuit Protection: D Curve
- Compliance: RoHS, CE, UL 1077, IEC 60947-2, CSA C22.2 No. 235
