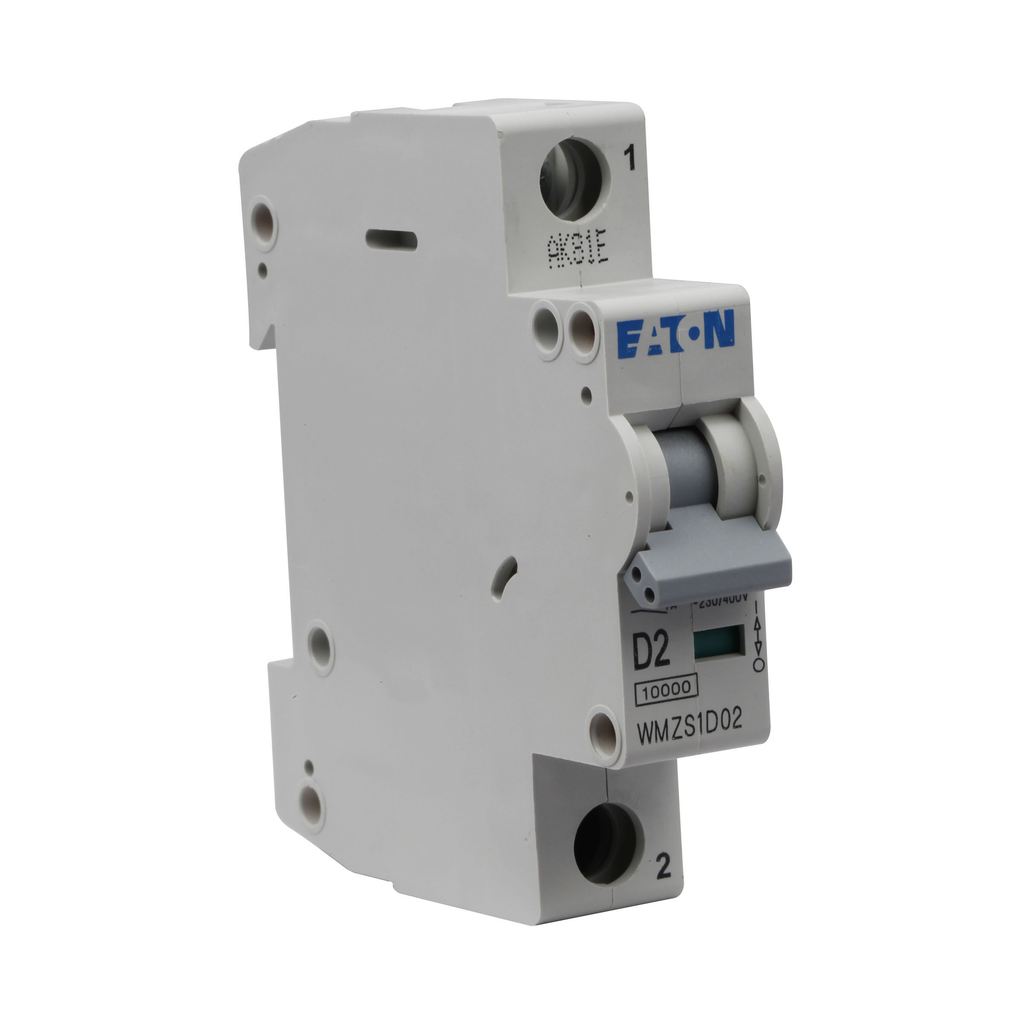

Cutler-Hammer WMZS1D02 DIN Rail Circuit Breaker Single-Pole 2A D Curve 10kAIC 277/480V Standard Box Terminals
The UL 1077 WMZS DIN Rail Supplementary Protector from Cutler-Hammer is engineered to deliver dependable circuit protection within industrial applications. This DIN rail mountable circuit breaker features a single-pole configuration with an amperage rating of 2A, making it suitable for a variety of electrical systems. Designed with standard box terminals for easy installation, it boasts an interrupt rating of 10 kAIC at voltages of 277/480V, ensuring reliable performance under demanding conditions. With its D Curve circuit protection characteristic, this supplementary protector is ideal for managing inrush currents, enhancing both safety and operational efficiency in your electrical installations.
- 10 kAIC interrupt rating for high fault current protection
- D Curve characteristic managing inrush currents
- Rated for 277/480V industrial voltage systems
- Single-pole configuration for focused circuit control
- 2A amperage rating for low current circuit protection
- DIN rail mountable for easy panel integration
- Standard box terminals for straightforward wiring connections
- Certified to IEC 60947-2, CSA, UL 1077 standards
- RoHS compliant and CE marked for regulatory adherence
- Amperage: 2A
- Interrupt Rating: 10 kAIC at 277/480 Vac
- Voltage: 277/480V
- Number of Poles: Single-pole
- Circuit Protection: D Curve
- Length: 0.69 in
- Width: 3.01 in
- Height: 3.15 in
- Terminals: Standard box terminals
- Type: DIN rail mountable circuit breaker
- Compliance: IEC 60947-2, CSA Std. C22.2 No. 235, UL 1077, RoHS, CE Marked
