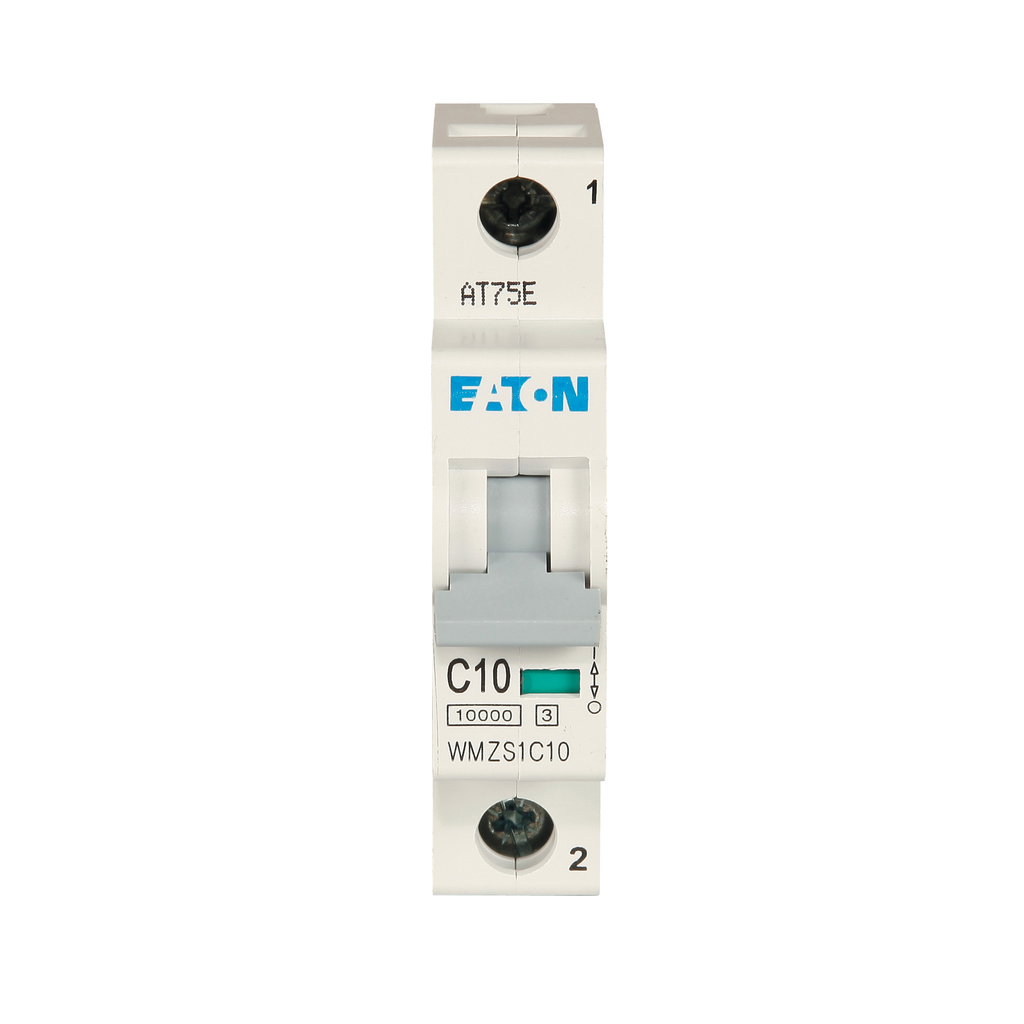

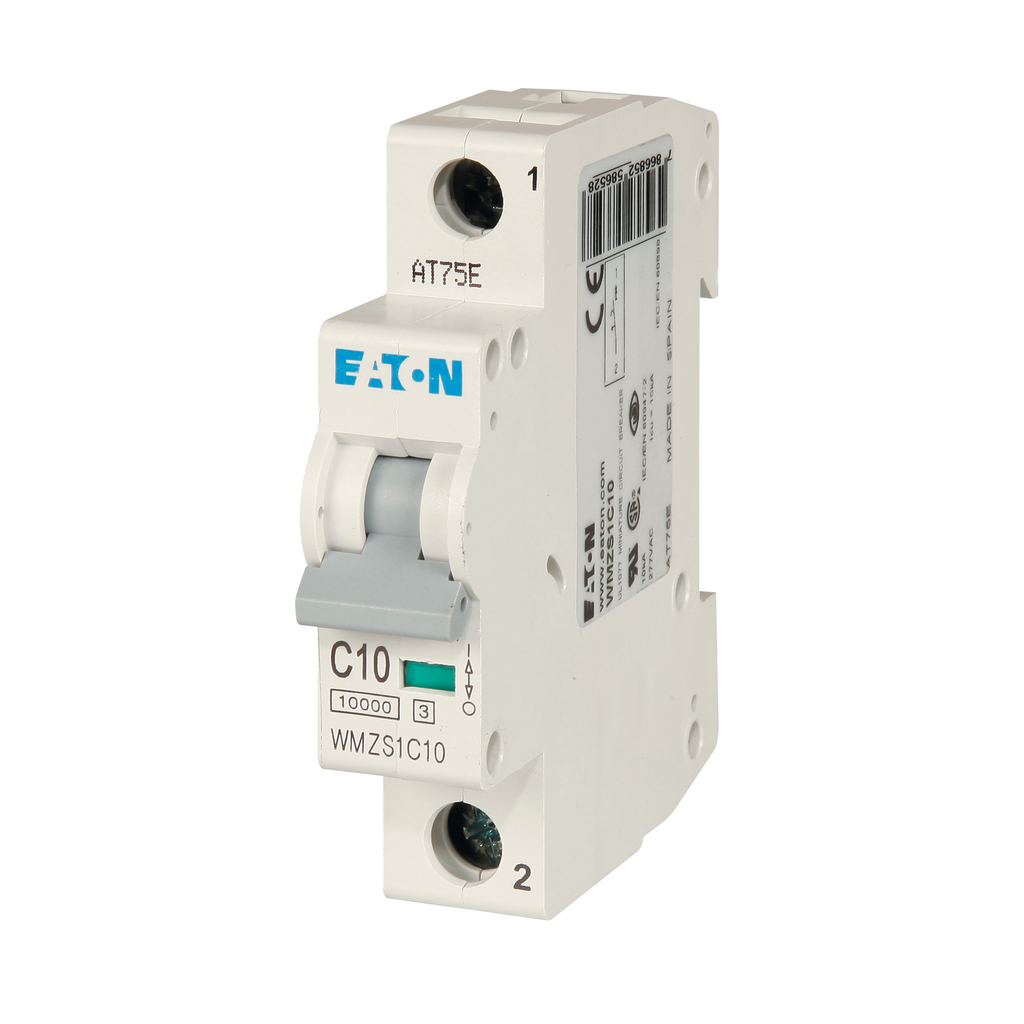

Cutler-Hammer WMZS1C10 DIN Rail Circuit Breaker Single-pole 10A 277/480V 10kAIC C Curve Standard Box Terminals
The UL 1077 WMZS DIN Rail Supplementary Protector from Cutler-Hammer is engineered for effective circuit protection in a compact design. This single-pole circuit breaker operates at a voltage rating of 277/480V and boasts an impressive interrupt rating of 10 kAIC, ensuring reliable safety and performance in demanding environments. With an amperage rating of 10A and a C Curve for circuit protection, it is specifically designed to be mounted on a DIN rail, allowing for easy installation and integration into various electrical systems. Constructed with standard box terminals, this supplementary protector not only maximizes space efficiency with its slim profile but also guarantees robust protection for your circuits.
- Compliant with UL 1077, IEC 60947-2, CSA, RoHS, and CE standards for safety and environmental assurance
- 10 kAIC interrupt rating for high fault current protection
- C Curve tripping characteristic optimized for motor and inductive loads
- 10A amperage rating suitable for moderate electrical loads
- Rated for 277/480V operation compatible with control panel voltages
- Single-pole configuration for precise circuit protection
- Standard box terminals for secure, straightforward wiring connections
- Compact DIN rail mountable design for space-saving installation
- Slim profile design maximizes panel space utilization
- Amperage: 10A
- Interrupt Rating: 10 kAIC at 277/480 Vac
- Voltage: 277/480V
- Number of Poles: Single-pole
- Length: .69 in
- Width: 3.01 in
- Height: 3.15 in
- Type: DIN rail mountable circuit breaker
- Terminals: Standard box terminals
- Circuit Protection: C Curve
- Compliance: UL 1077, IEC 60947-2, CSA C22.2 No. 235, RoHS, CE
