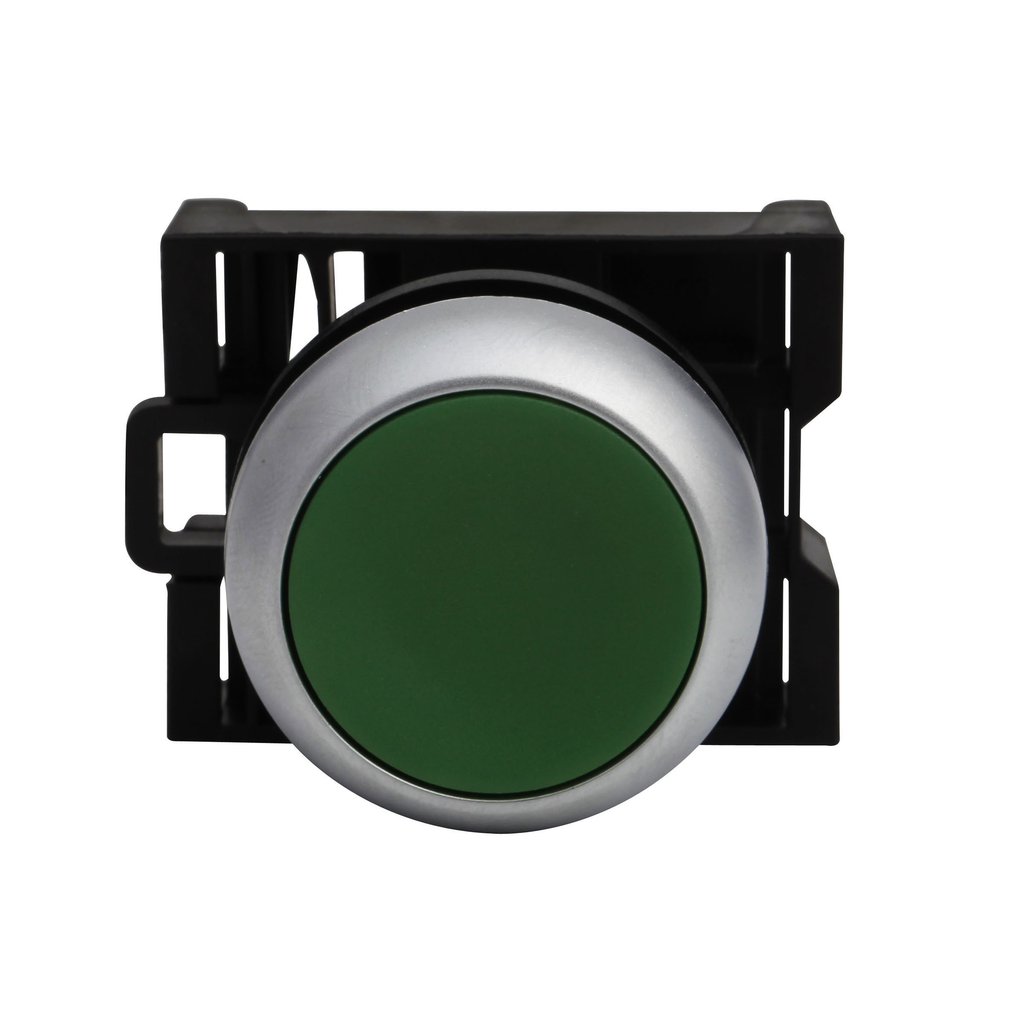

Cutler-Hammer M22-D-G Pushbutton Momentary Flush Green Silver Bezel IP67 IP69K NEMA 4x 13
This modular pushbutton operator from the Eaton M22 series, manufactured by Cutler-Hammer, is engineered for robust performance in demanding environments. Featuring a momentary action and a flush button design, it ensures a reliable user experience with up to 5,000,000 mechanical operations, making it suitable for frequent use. The non-illuminated green button and silver bezel provide a sleek aesthetic, while its IP67, IP69K, and NEMA ratings offer exceptional protection against dust and water, ensuring functionality in harsh conditions. The inclusion of a contact block mounting adapter enhances its versatility, allowing for seamless integration into various applications.
- Rated IP67, IP69K, NEMA 4X, and 13 for environmental protection
- High durability with 5,000,000 mechanical operations
- Momentary action for precise control
- Flush button actuator for low-profile design
- Includes contact block mounting adapter for easy installation
- Silver bezel providing corrosion resistance
- Operating Cycles: 5,000,000 Mechanical operations
- Environmental Rating: IP67, IP69K, NEMA 4X, NEMA 13
- Size: 22.5 mm
- Height: 0.39 in.
- Width: 1.17 in.
- Length: 1.17 in.
- Weight: 0.01 lb
- Actuator: Flush, Button
- Action: Momentary
- Button Color: Green
- Bezel: Silver
- Illumination: Non-illuminated
- Series: M22
- Type: Pushbutton
