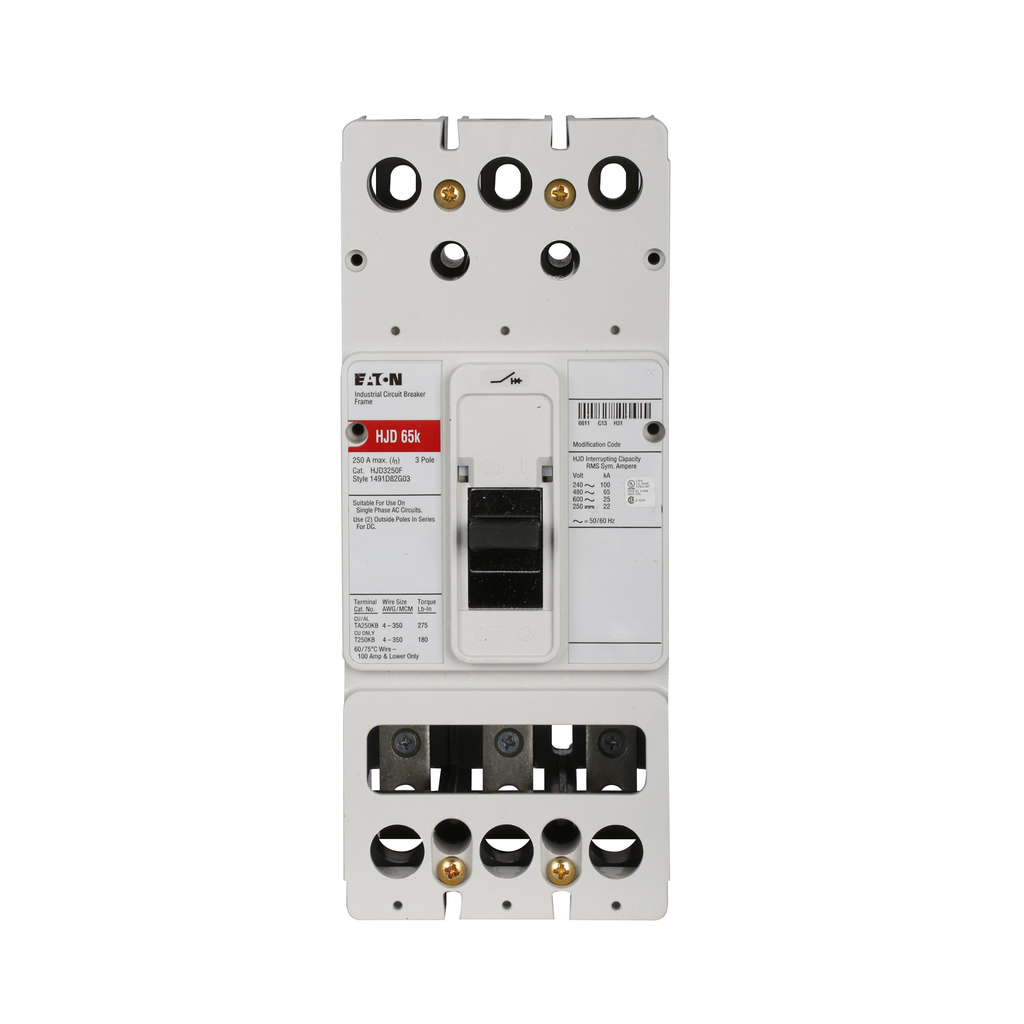

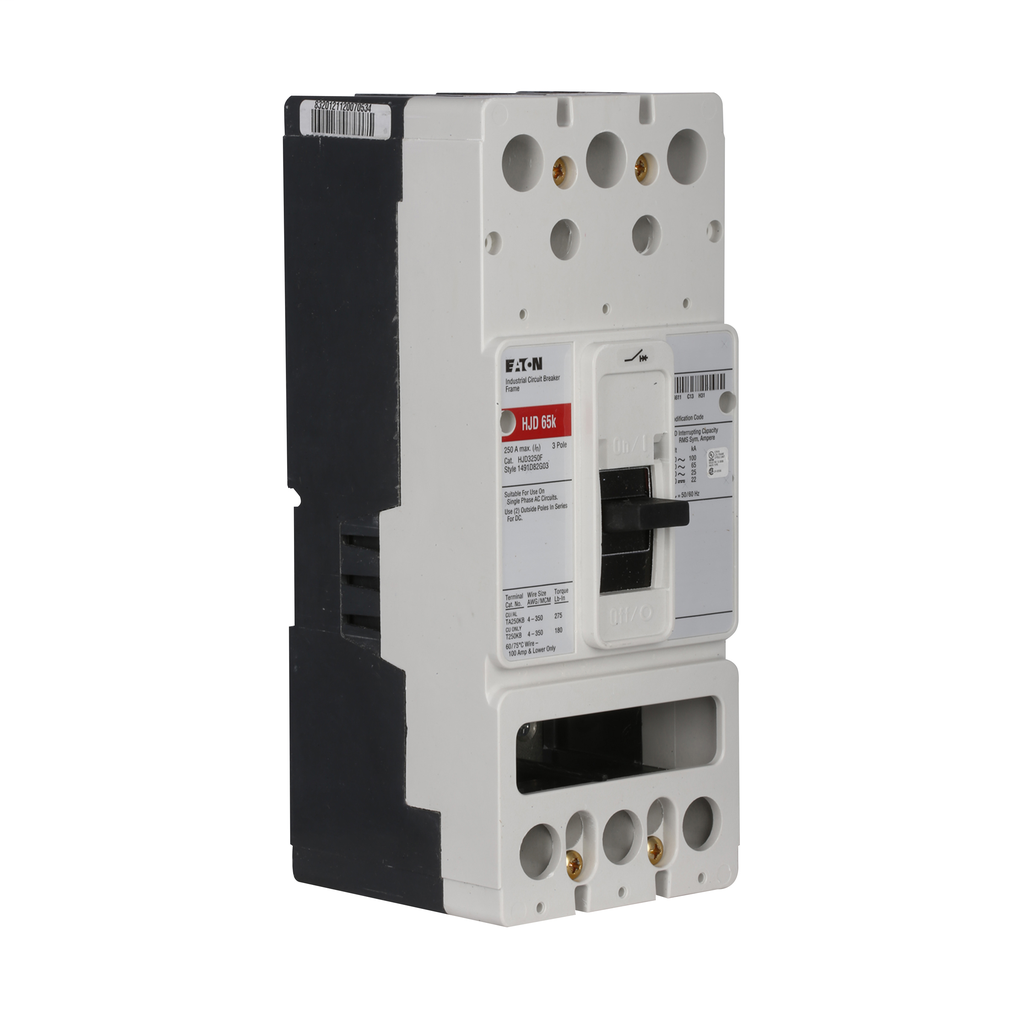

Cutler-Hammer JD3250F Circuit Breaker Frame Three-pole J-frame 250A 65 kAIC at 240 Vac 35 kAIC at 480 Vac
This molded case circuit breaker frame from Cutler-Hammer is engineered for robust performance in demanding applications, featuring a reliable three-pole configuration suited for both 50-60 Hz power systems. Designed as a frame-only unit in the Eaton Series C line, it accommodates fixed thermal and magnetic trip types for enhanced protection. With an impressive interrupt rating of 65 kAIC at 240 Vac and 35 kAIC at 480 Vac, this J-frame breaker is capable of handling significant fault currents while ensuring safety and operational integrity. Its versatile ratings of up to 250A and compatibility with 600 Vac and 250 Vdc systems make it an essential component for modern electrical installations.
- UL Listed for safety and performance assurance
- Fixed thermal and magnetic trip types for enhanced protection
- High interrupt rating of 65 kAIC at 240 Vac and 35 kAIC at 480 Vac for fault current handling
- Rated for 250A to support substantial electrical load
- Compatible with 600 Vac and 250 Vdc systems for versatile applications
- Designed for 50-60 Hz power systems compatibility
- Three-pole configuration for balanced power distribution
- J-frame size for standardized installation
- Frame-only design allowing customization with compatible breakers
- Amperage Rating: 250A
- Interrupt Rating: 65 kAIC at 240 Vac, 35 kAIC at 480 Vac
- Voltage Rating: 600 Vac, 250 Vdc
- Number Of Poles: Three-pole
- Trip Type: Fixed thermal, fixed magnetic
- Circuit Breaker Type: JD
- Frame Size: J-frame
- Length: 4.06 in.
- Width: 4.13 in.
- Height: 4.13 in.
- Weight: 9.55 lb
- Frequency Rating: 50-60 Hz
- Type: Frame only
- Series: Series C
- Compliance: UL Listed
