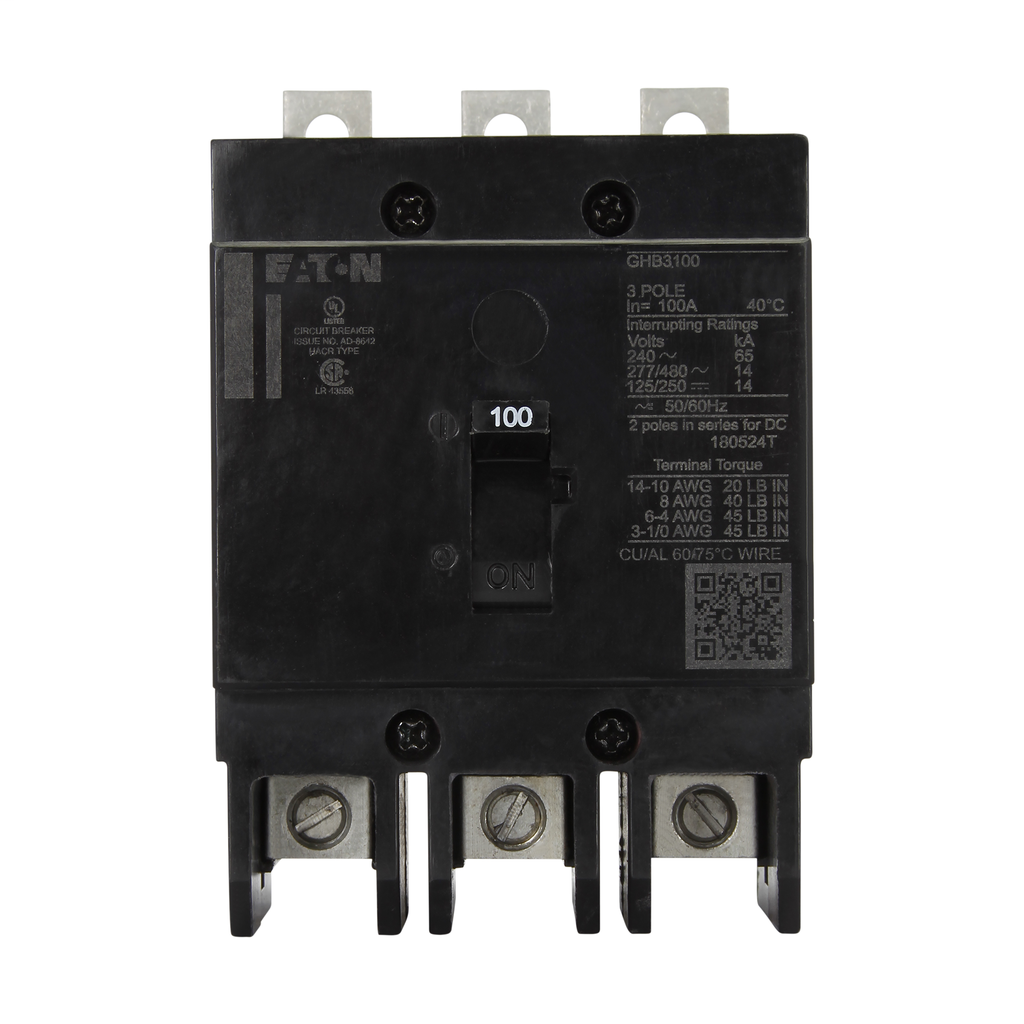

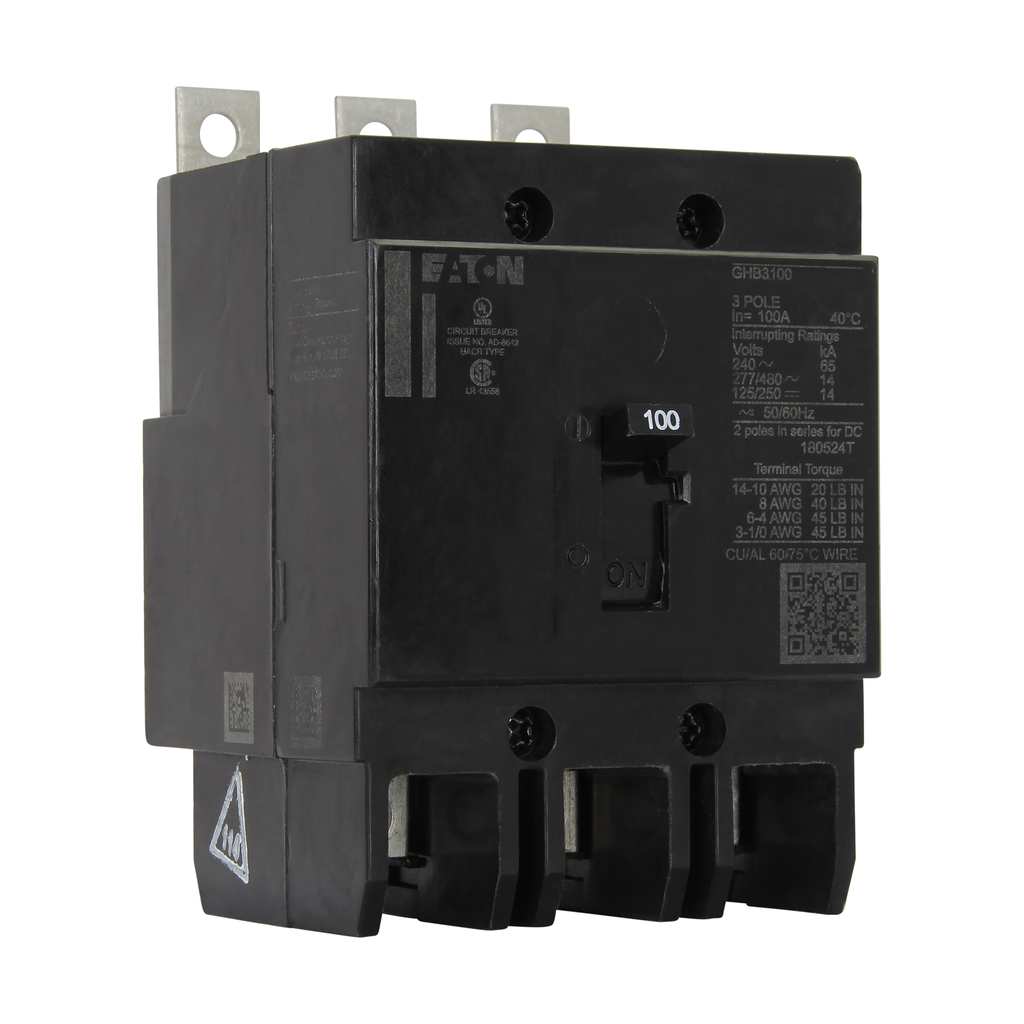

Cutler-Hammer GHB3100 Molded Case Circuit Breaker 100A Three-pole 480Y/277 Vac G-frame
This Eaton Series C complete molded case circuit breaker from Cutler-Hammer is designed to provide exceptional protection and reliable performance for your electrical systems. Featuring a three-pole configuration with a 100A amperage rating, it is well-suited for managing loads in environments where safety and efficiency are paramount. The breaker operates effectively at voltage ratings of up to 480Y/277 Vac and 125/250 Vdc, ensuring versatility across various applications. With its robust G-frame design and reliable fixed thermal and magnetic trip types, this circuit breaker offers peace of mind by delivering a sturdy solution capable of withstanding interrupt ratings of 65 kAIC at 240 Vac and 14 kAIC at its higher voltage rating. Its compact dimensions, including a height of 4 inches and a length of 2.63 inches, allow for easy integration into control panels, making it an ideal choice for both new installations and upgrades.
- Fixed thermal and magnetic trip types for reliable overload and short circuit protection
- High interrupt rating of 65 kAIC at 240 Vac and 14 kAIC at 480Y/277 Vac for enhanced safety
- 100A amperage rating suitable for medium to heavy electrical loads
- Operates at 480Y/277 Vac and 125/250 Vdc for versatile application
- Three-pole configuration for balanced load management
- Complete molded case circuit breaker construction for robust protection
- Compact G-frame design for easy integration into control panels
- UL Listed certification ensures compliance with safety standards
- Amperage: 100A
- Interrupt Rating: 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac
- Voltage Rating: 480Y/277 Vac, 125/250 Vdc
- Frequency Rating: 50/60 Hz
- Number of Poles: Three-pole
- Trip Type: Fixed thermal, fixed magnetic
- Type: Molded case circuit breaker
- Circuit Breaker Type: GHB
- Circuit Breaker Frame Type: Complete breaker
- Frame Size: G-frame
- Height: 4 in
- Length: 2.63 in
- Width: 3 in
- Weight: 1.75 lb
- Series: Series C
- Compliance: UL Listed
