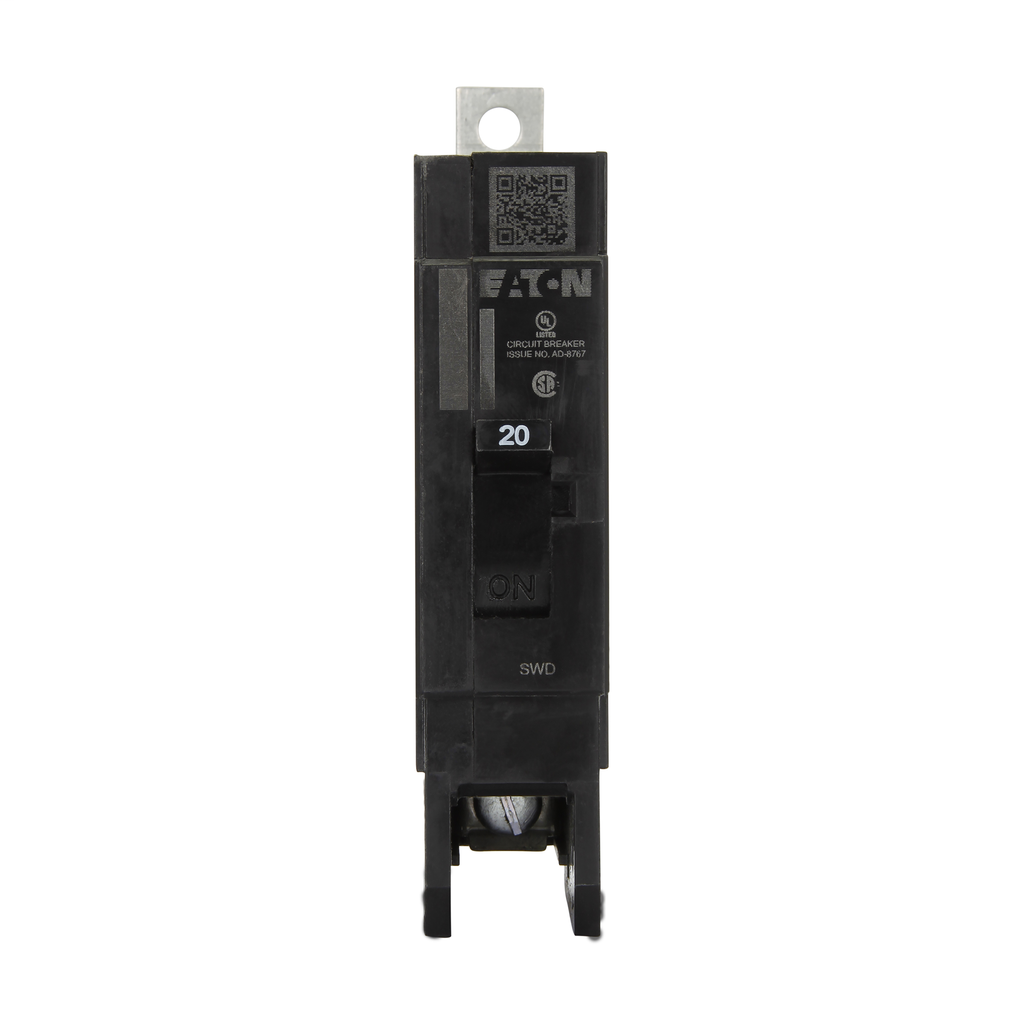

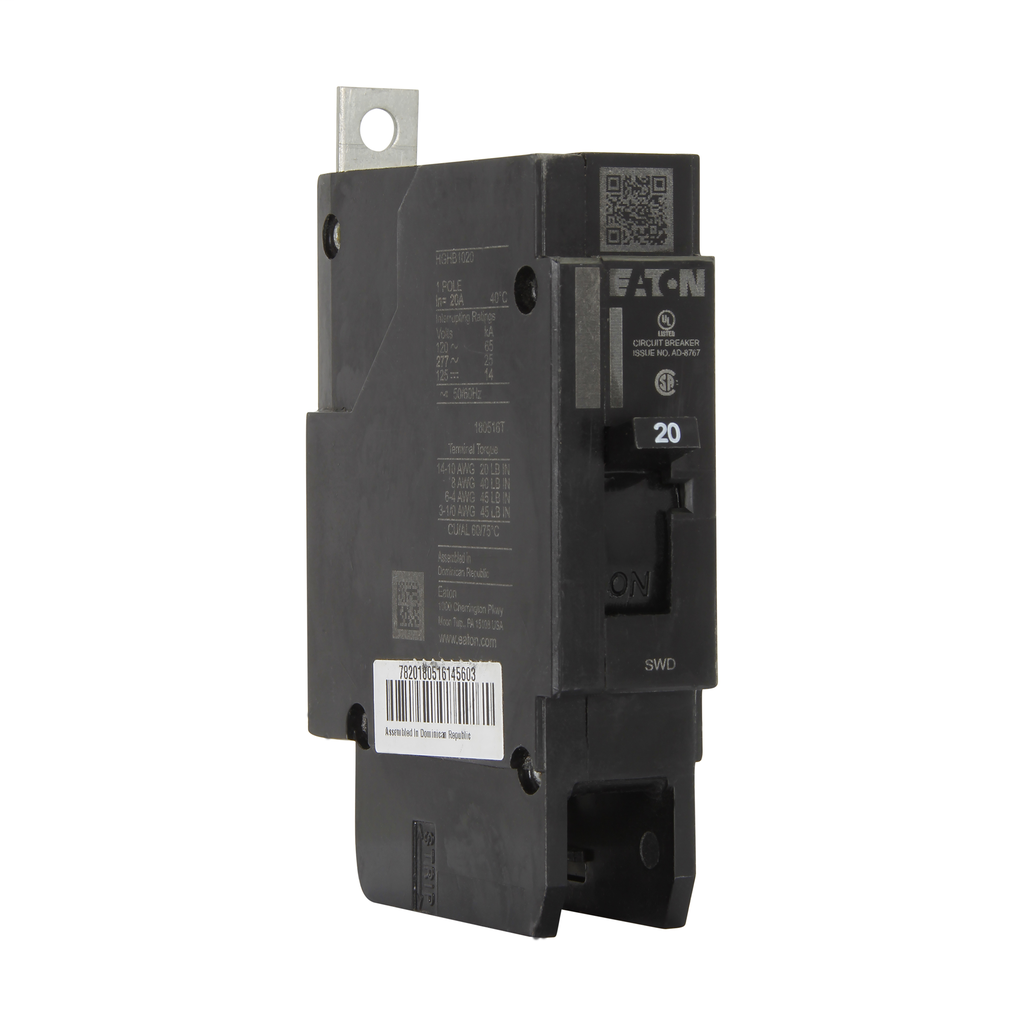

Cutler-Hammer GHB1020 Molded Case Circuit Breaker G-frame Single-pole 20A 277 Vac 14 kAIC Series C
The Eaton Series C complete molded case circuit breaker by Cutler-Hammer stands out for its robust performance and reliability in electrical systems. Designed as a G-frame circuit breaker, it operates within a frequency rating of 50/60 Hz and features a fixed thermal and magnetic trip type that ensures safe operation for circuits demanding precise protection. With a single-pole configuration and a 20A amperage rating, this compact breaker is well-suited for various applications, providing an interrupt rating of 14 kAIC at 277 Vac, capable of handling voltage up to 277 Vac and 125 Vdc. Its durable construction and thoughtful design make it an essential component for enhancing the safety and efficiency of your electrical installations.
- UL Listed for compliance and safety assurance
- Fixed thermal and magnetic trip for precise circuit protection
- 14 kAIC interrupt rating for high short-circuit current protection
- Rated for 277 Vac and 125 Vdc applications
- Single-pole design for streamlined installation in electrical panels
- Operates at 50/60 Hz frequency for versatile power systems
- Compact G-frame size suitable for space-constrained setups
- Complete breaker design simplifies replacement and maintenance
- Type: Molded case circuit breaker
- Amperage: 20A
- Interrupt Rating: 14 kAIC at 277 Vac
- Voltage: 277 Vac, 125 Vdc
- Number of Poles: Single-pole
- Trip Type: Fixed thermal, fixed magnetic
- Circuit Breaker Type: GHB
- Circuit Breaker Frame Type: Complete breaker
- Frame Size: G-frame
- Series: Series C
- Frequency Rating: 50/60 Hz
- Height: 4 in
- Length: 2.63 in
- Width: 1 in
- Weight: 0.65 lb
- Compliance: UL Listed
