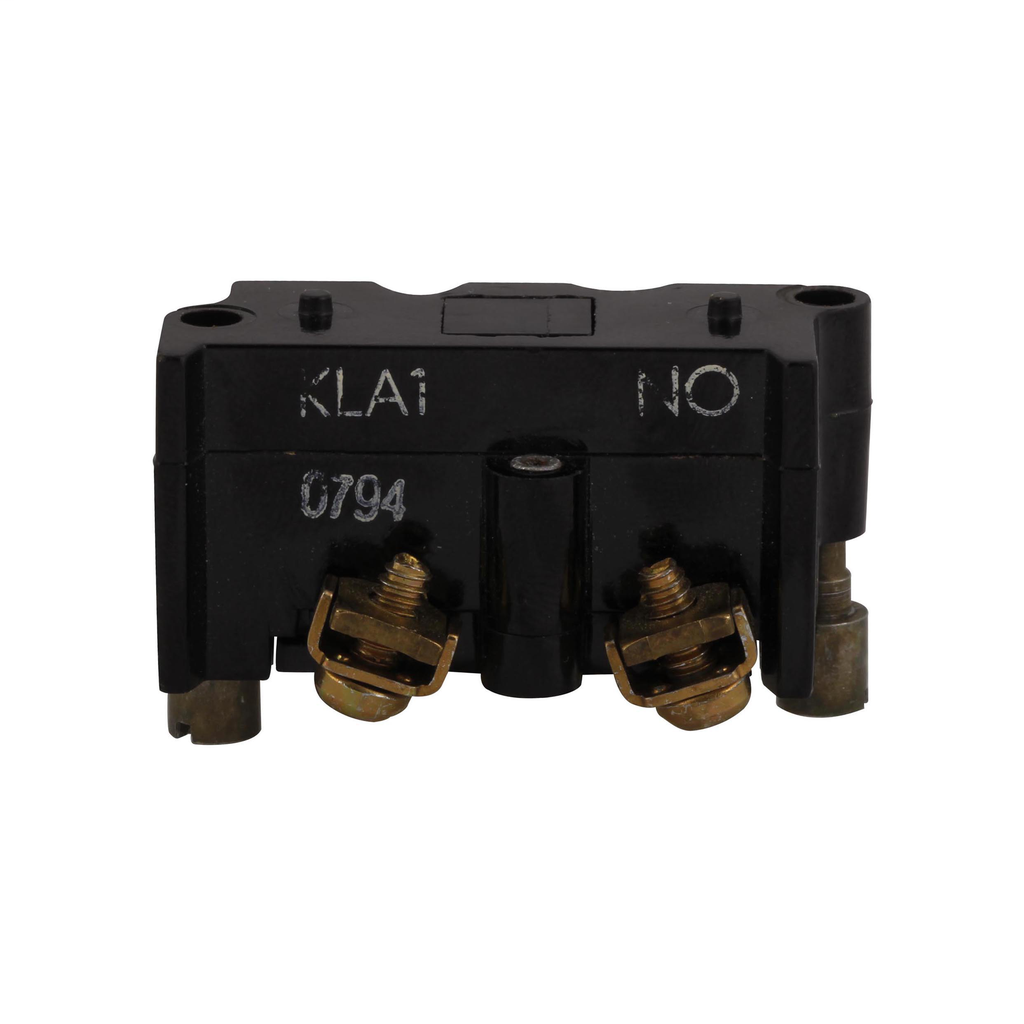

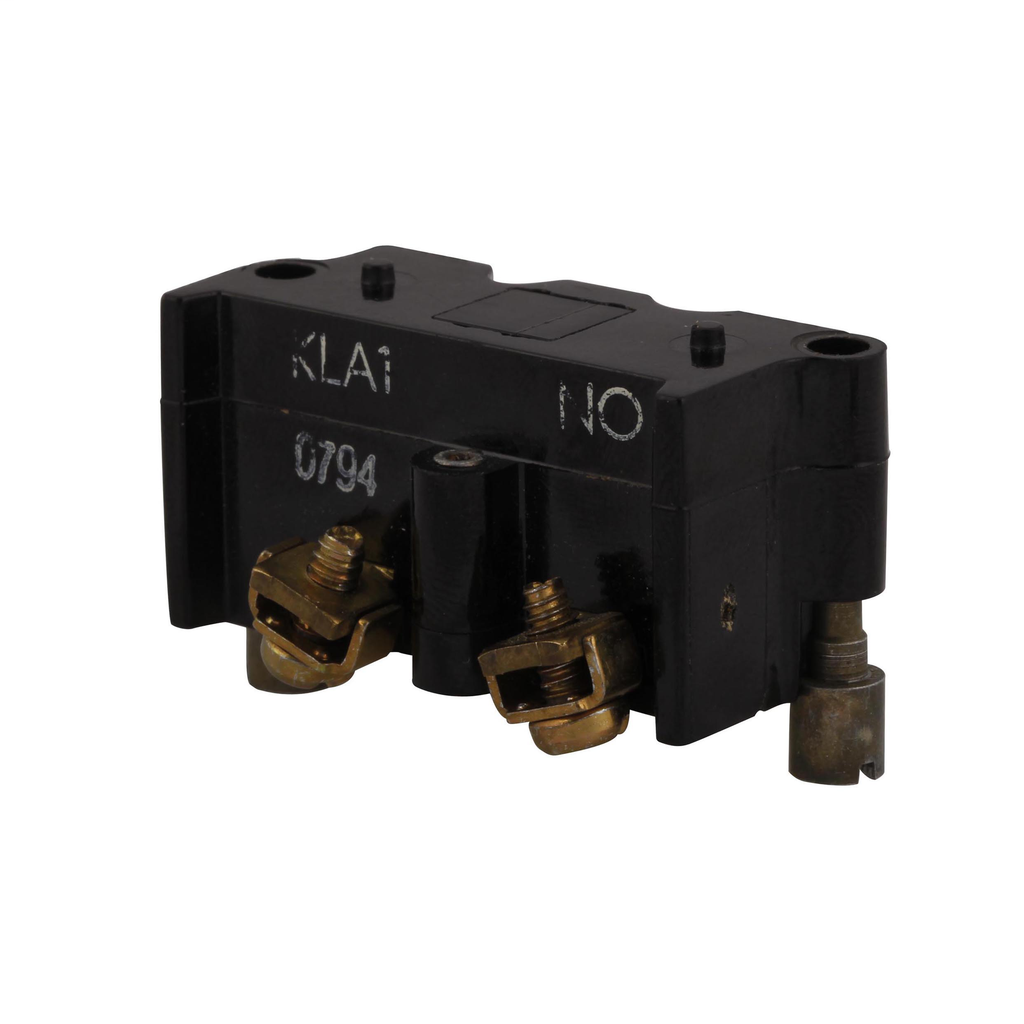

Cutler-Hammer E30KLA1 Contact Block 1NO Pressure Terminals 600Vac 250Vdc Square Multifunction
The Standard Contact Block from Cutler-Hammer represents a reliable choice for diverse electrical applications, expertly designed to handle voltage ratings of up to 600 Vac and 250 Vdc. This square multifunction contact block features a standard 1NO configuration, ensuring efficient operation within your systems. Engineered for easy installation, its pressure terminals facilitate secure connectivity, while the compact dimensions allow for seamless integration into tight spaces. Each contact block is individually boxed and master packed in sets of ten, making it a practical solution for both individual users and larger projects alike.
- UL Listed and CSA Certified for safety assurance
- Rated to 600 Vac and 250 Vdc for versatile electrical applications
- Standard 1NO contact configuration for reliable switching
- Pressure terminals for secure and easy installation
- Compact square multifunction design for integration in tight spaces
- Individually boxed for convenient handling and storage
- Voltage Rating: 600 Vac, 250 Vdc
- Contact Configuration: 1NO (standard)
- Length: 1.9 in
- Height: 2.2 in
- Width: 1.2 in
- Weight: 0.05 lb
- Type: 30.5 mm Square Multifunction
- Terminals: Pressure
- Series: E30
- Compliance: UL Listed, CSA Certified
