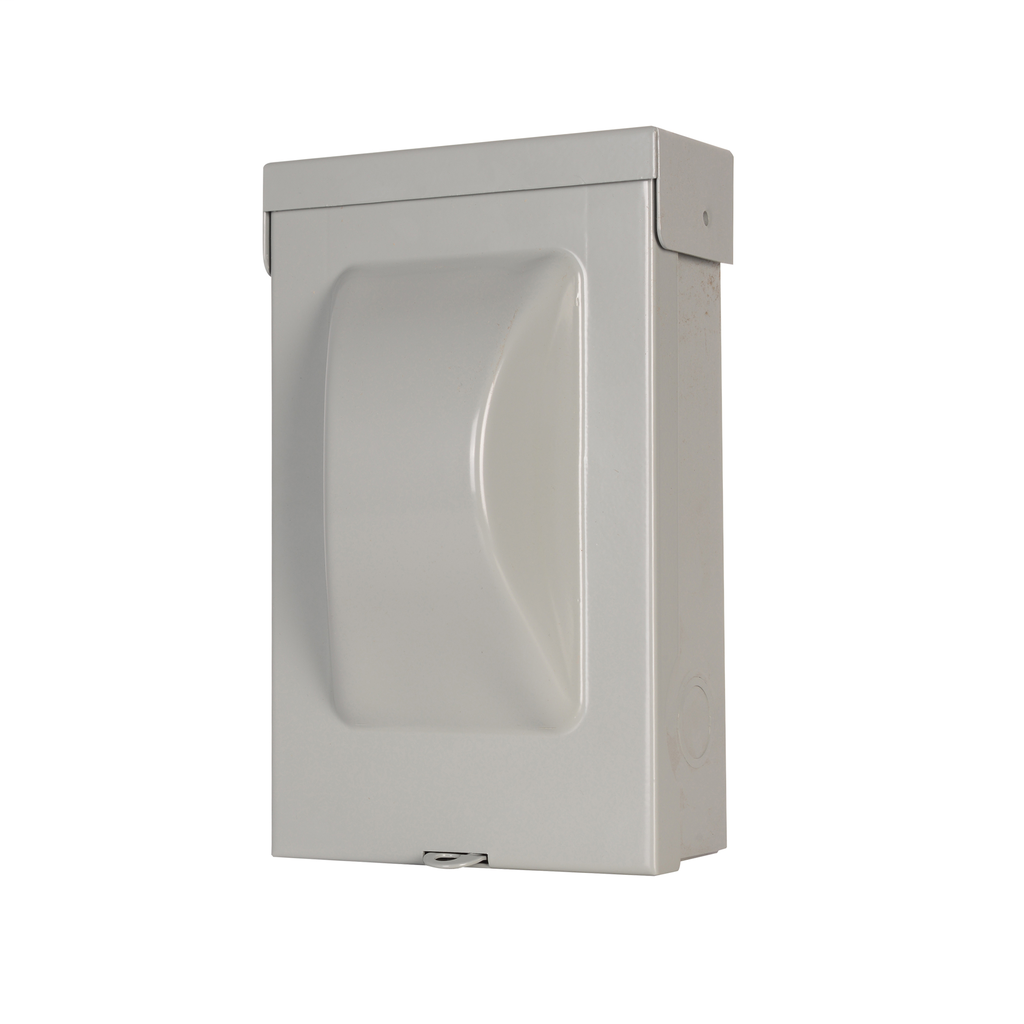

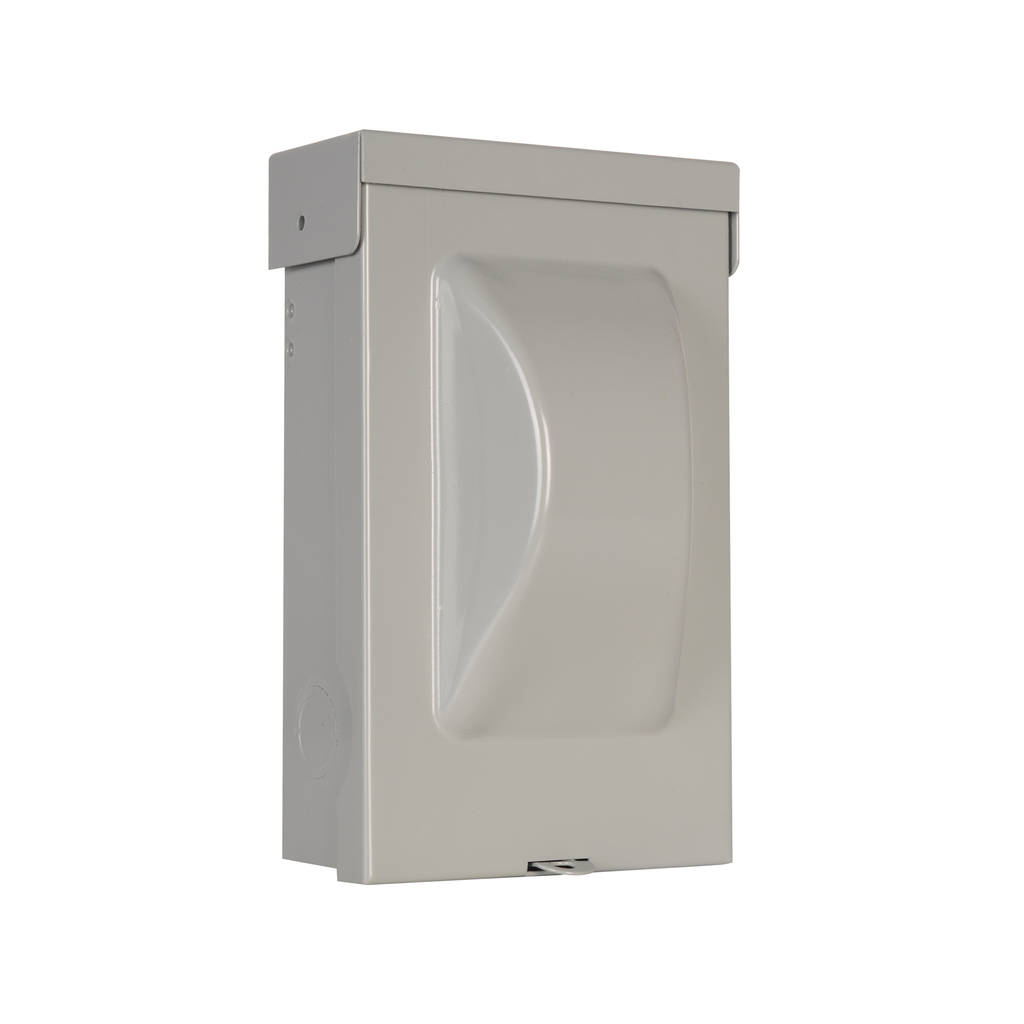

Cutler-Hammer DPB222R Molded Case Switch 60A 10 hp 240V 10 kAIC NEMA 3R ANSI 61 Gray Galvanized Steel
Engineered for efficient power management in air conditioning systems, this disconnect switch features an amperage rating of 60A and is capable of handling up to 10 hp at 240 V. Crafted from durable galvanized steel, the enclosure is designed to meet NEMA 3R standards, providing reliable performance in diverse environmental conditions. With robust specifications, including an interrupt rating of 10 kAIC and compatible wire sizes of #14-3 AWG for both copper and aluminum, it ensures safe and effective disconnection of electrical circuits. Additionally, the switch is finished in ANSI 61 gray, making it a practical and unobtrusive choice for any installation. For those in need of replacements, the corresponding molded case switch part number BR260NA ensures compatibility and ease of maintenance.
- UL Listed and CSA Certified for safety assurance
- Interrupt rating of 10 kAIC for high fault current protection
- Rated for 60A amperage and 10 hp motor at 240V
- NEMA 3R galvanized steel enclosure for corrosion resistance

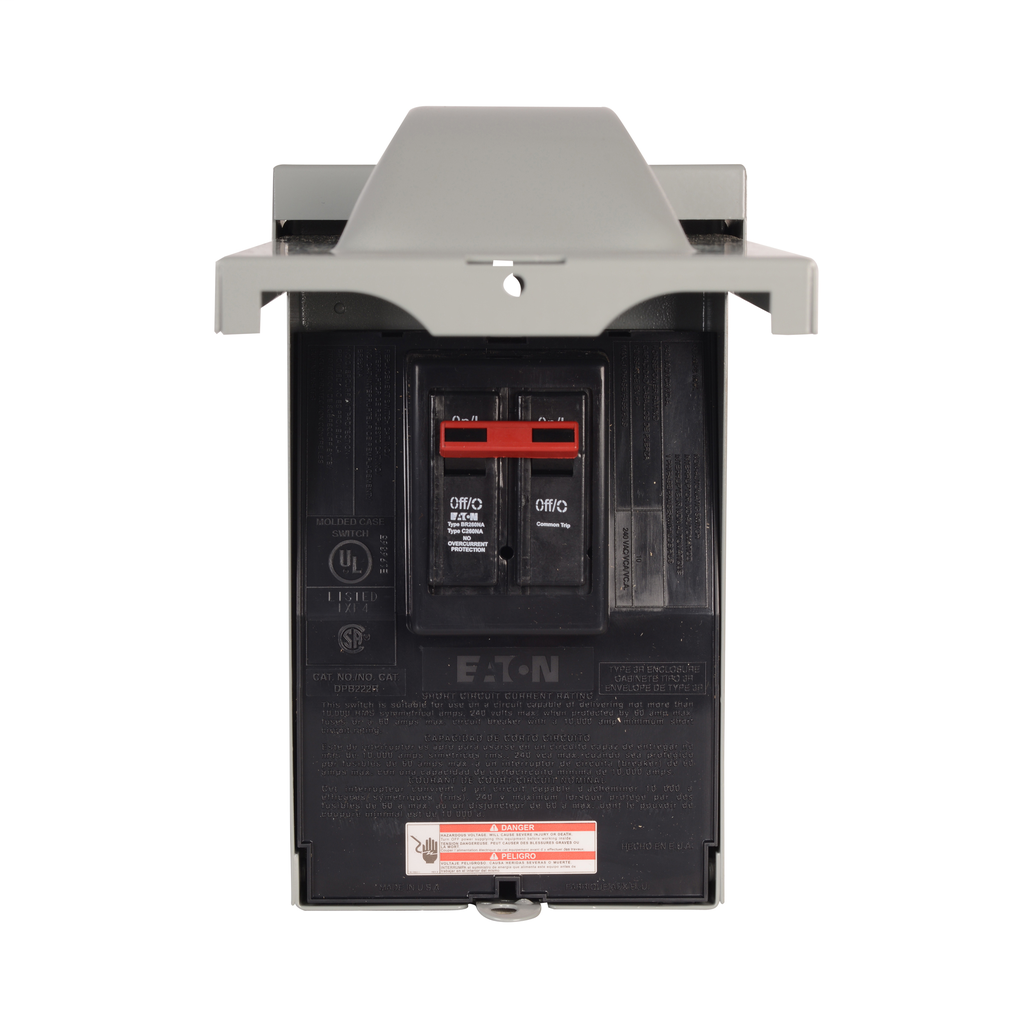

- Molded case switch design for reliable electrical disconnection
- Compatible with #14-3 AWG copper and aluminum wiring
- Finished in ANSI 61 gray for a neutral appearance
- Suitable for outdoor and indoor environments
- Amperage: 60A
- Horsepower: 10 hp at 240 V
- Interrupt Rating: 10 kAIC
- Voltage: 240V
- Length: 5.3 in
- Height: 8.6 in
- Width: 3.74 in
- Weight: 34 lb
- Wire Size: #14-3 AWG Cu/Al
- Enclosure: NEMA 3R
- Enclosure Material: Galvanized steel
- Color: ANSI 61 gray
- Type: Molded case switch
- Compliance: UL Listed, CSA Certified
