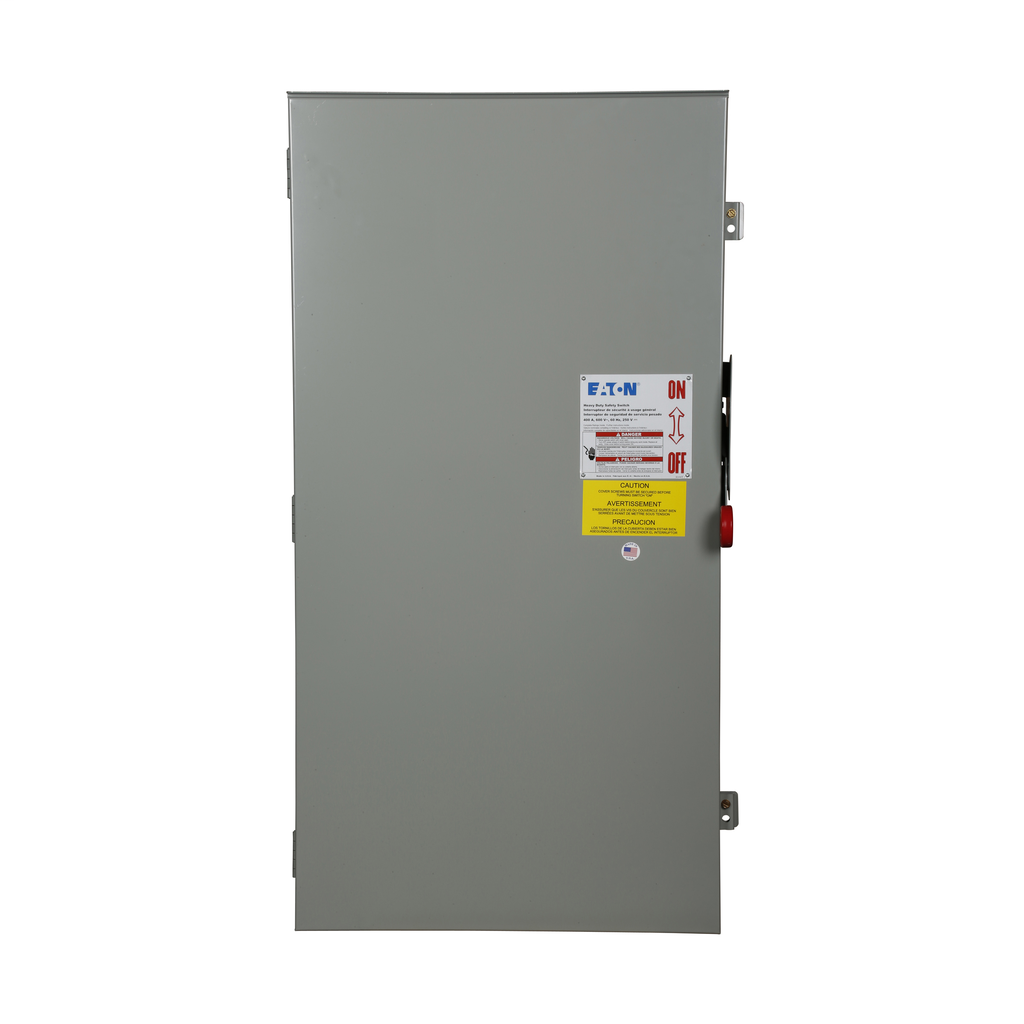

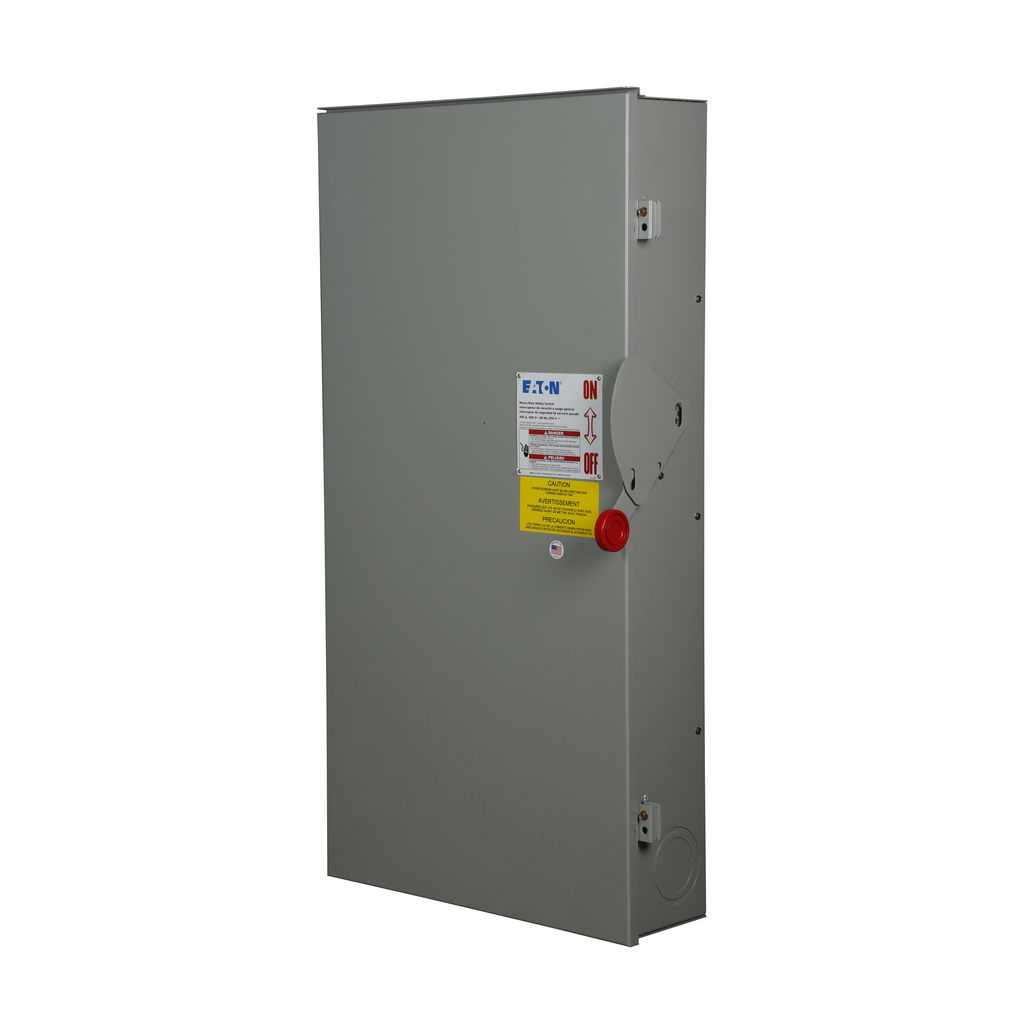

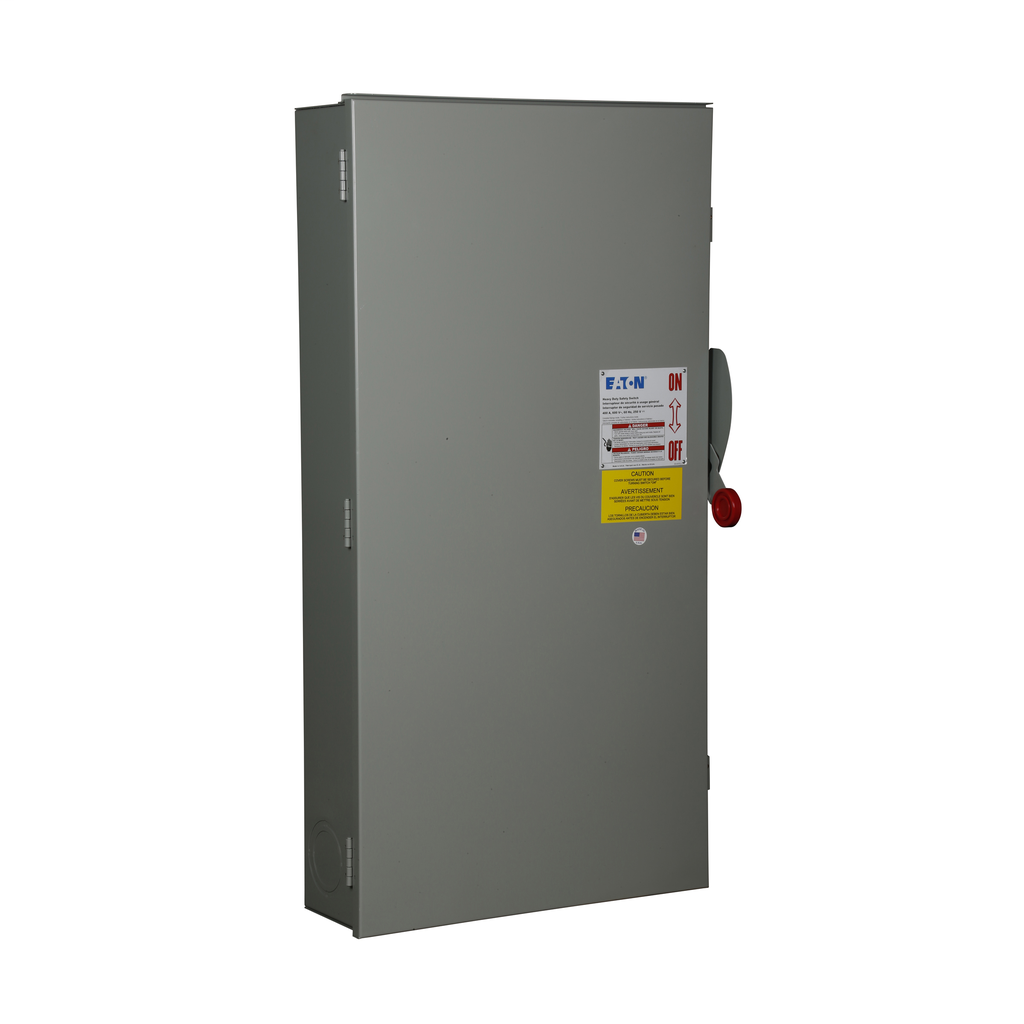

Cutler-Hammer DH365NRK Heavy Duty Fusible Safety Switch 400A 3-Pole 600V Class H Fusible with Neutral NEMA 3R Painted Galvanized Steel
This heavy duty single-throw fused safety switch from Cutler-Hammer offers robust protection for electrical circuits with its impressive amperage rating of 400A and a maximum horsepower capacity of up to 350 hp at 480/600V. Designed to withstand harsh environments, the enclosure is crafted from painted galvanized steel and complies with NEMA 3R standards, ensuring durability and reliability. Featuring a three-pole configuration and a fusible design with a neutral, it effectively manages multiple wire connections, making it ideal for industrial applications where safety and performance are paramount. With its substantial dimensions, this heavy duty fusible safety switch is engineered to meet the diverse needs of electrical systems, providing peace of mind in demanding operational settings.
- UL Listed for safety and regulatory compliance assurance
- Fusible switch with neutral for enhanced circuit protection
- 400A amperage rating for high current capacity
- Supports up to 350 hp at 480/600V for powerful motor applications
- NEMA 3R rated painted galvanized steel enclosure for corrosion resistance and outdoor use
- Three-pole configuration for multi-phase electrical management
- Four-wire setup for versatile wiring compatibility
- Amperage: 400A
- Voltage: 600V
- Max Horsepower Rating: 250, 350 hp (3PH @480/600 V)
- Length: 45.5 in
- Width: 24.38 in
- Height: 10.25 in
- Weight: 151 lb
- Number of Poles: Three-pole
- Number of Wires: Four-wire
- Enclosure: NEMA 3R
- Material: Painted galvanized steel
- Fuse Class: Class H
- Fuse Configuration: Fusible with neutral
- Compliance: UL Listed
