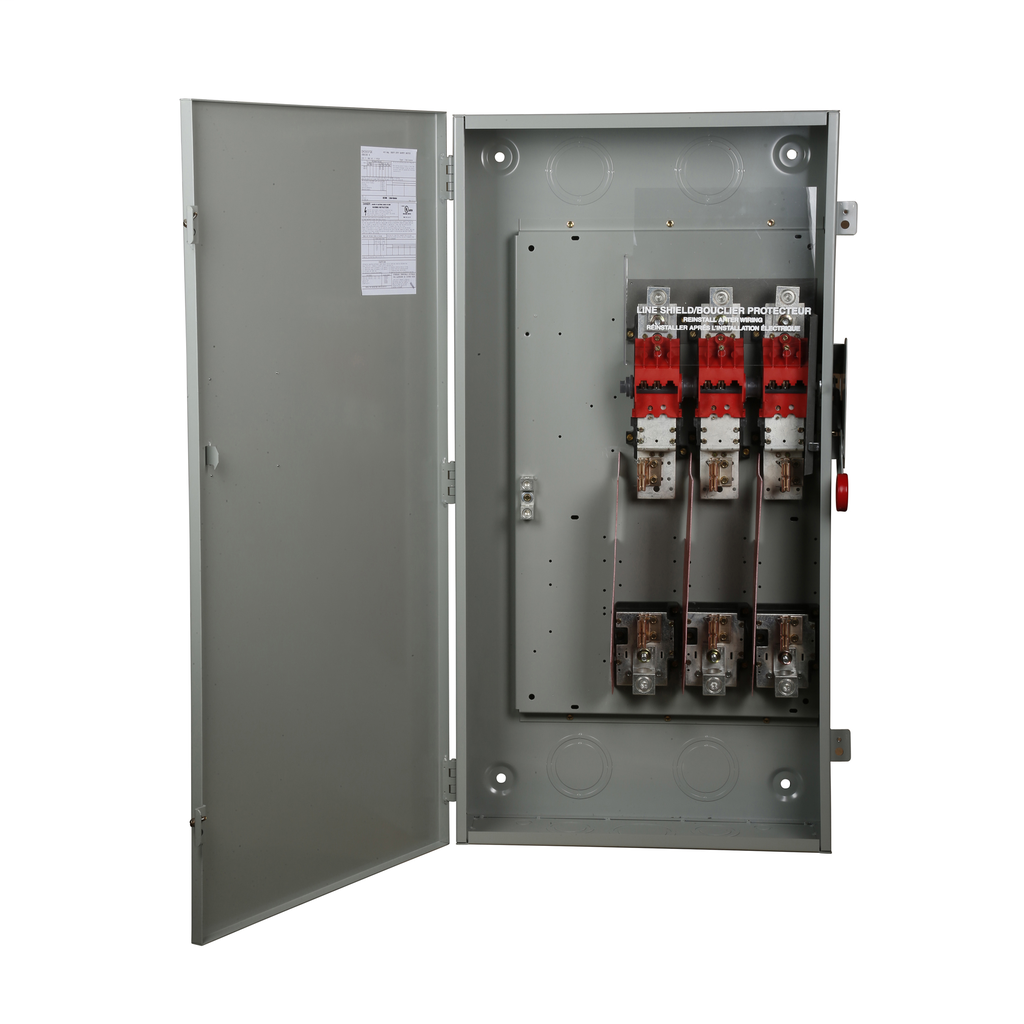

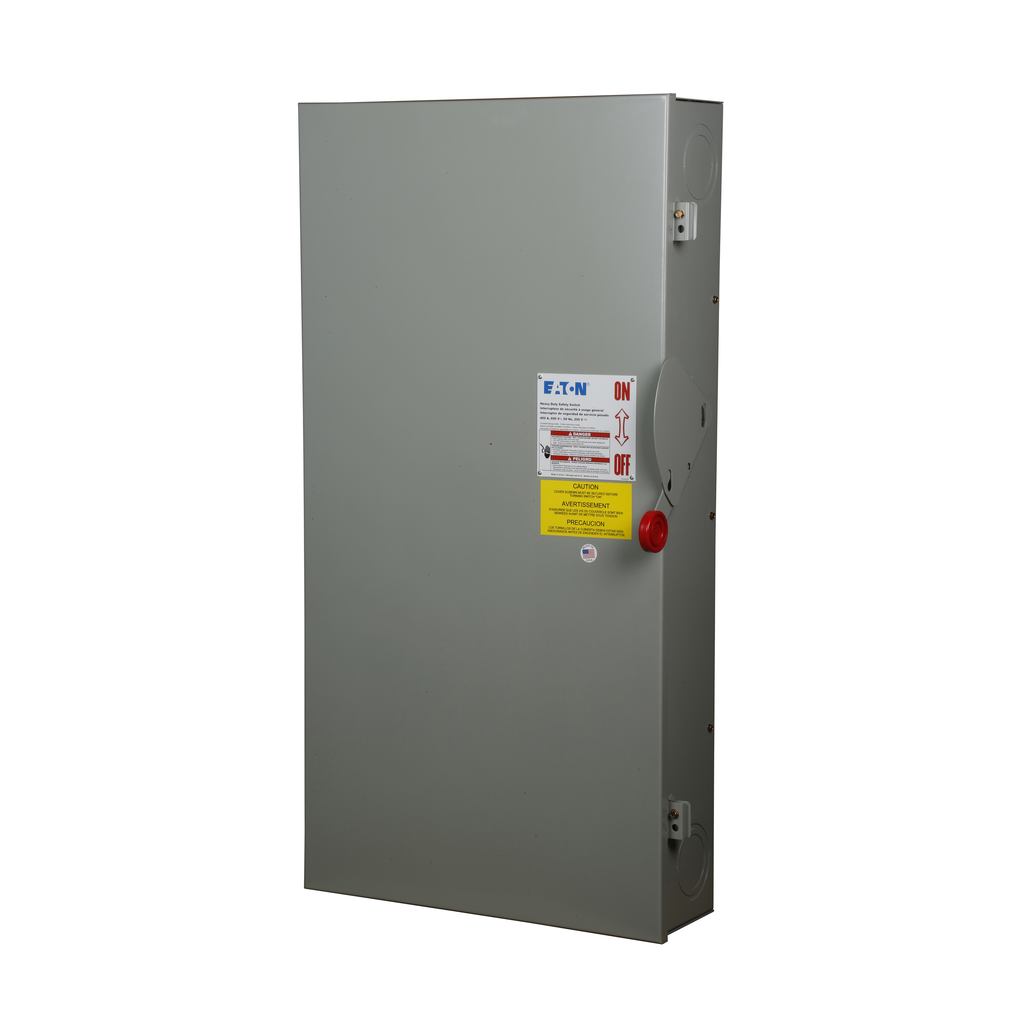

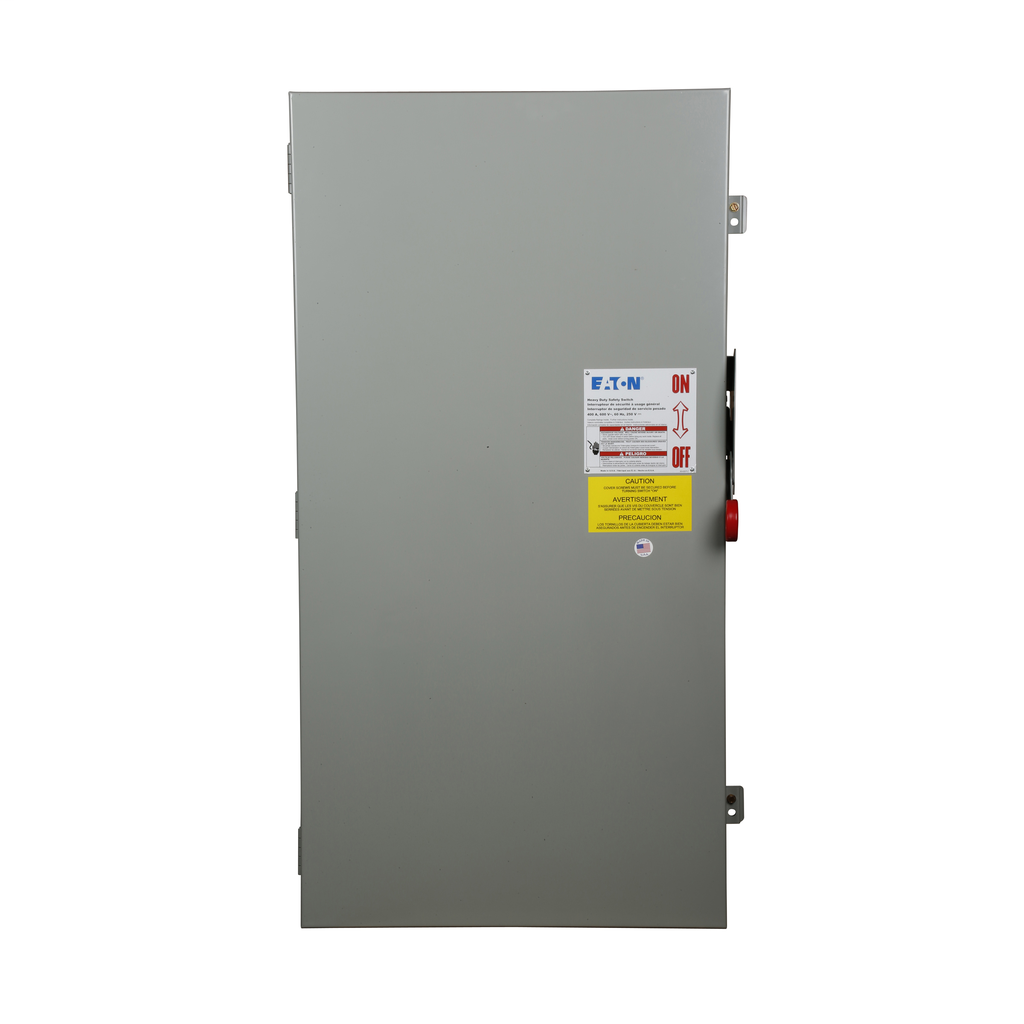

Cutler-Hammer DH365FGK Heavy Duty Fusible Safety Switch 400A 600V Three-Pole Class H Painted Steel NEMA 1
Designed for demanding applications, this heavy duty single-throw fused safety switch from Cutler-Hammer offers robust performance and safety features for industrial environments. With a maximum horsepower rating of up to 350 hp for three-phase systems at 480/600 V and a substantial amperage rating of 400A, it assures reliable operation under high load conditions. The switch is constructed from durable painted steel, featuring a NEMA 1 enclosure that provides adequate protection in indoor settings. Moreover, its three-pole and three-wire configuration makes it an ideal choice for service entrance applications when combined with a neutral kit, ensuring both functionality and safety in your electrical setup.
- UL Listed for recognized safety compliance
- Class H fuse provision for reliable overcurrent protection
- Rated for 600V voltage ensuring safe operation in industrial environments
- 400A amperage rating for high load capacity
- Supports up to 350 hp for three-phase motors at 480/600V
- NEMA 1 enclosure suitable for indoor use
- Three-pole and three-wire configuration for effective power distribution
- Compatible with neutral kit for service entrance applications
- Durable painted steel construction for long-lasting protection
- Heavy duty design for demanding industrial applications
- Amperage: 400A
- Voltage: 600V
- Max Horsepower Rating: 250, 350 hp (3PH @480/600 V)
- Number of Poles: Three-pole
- Length: 45.5 in
- Height: 10.25 in
- Width: 24.38 in
- Weight: 113 lb
- Fuse Class: Class H
- Fuse Configuration: Fusible without neutral
- Number of Wires: Three-wire
- Enclosure: NEMA 1
- Material: Painted steel
- Compliance: UL Listed
