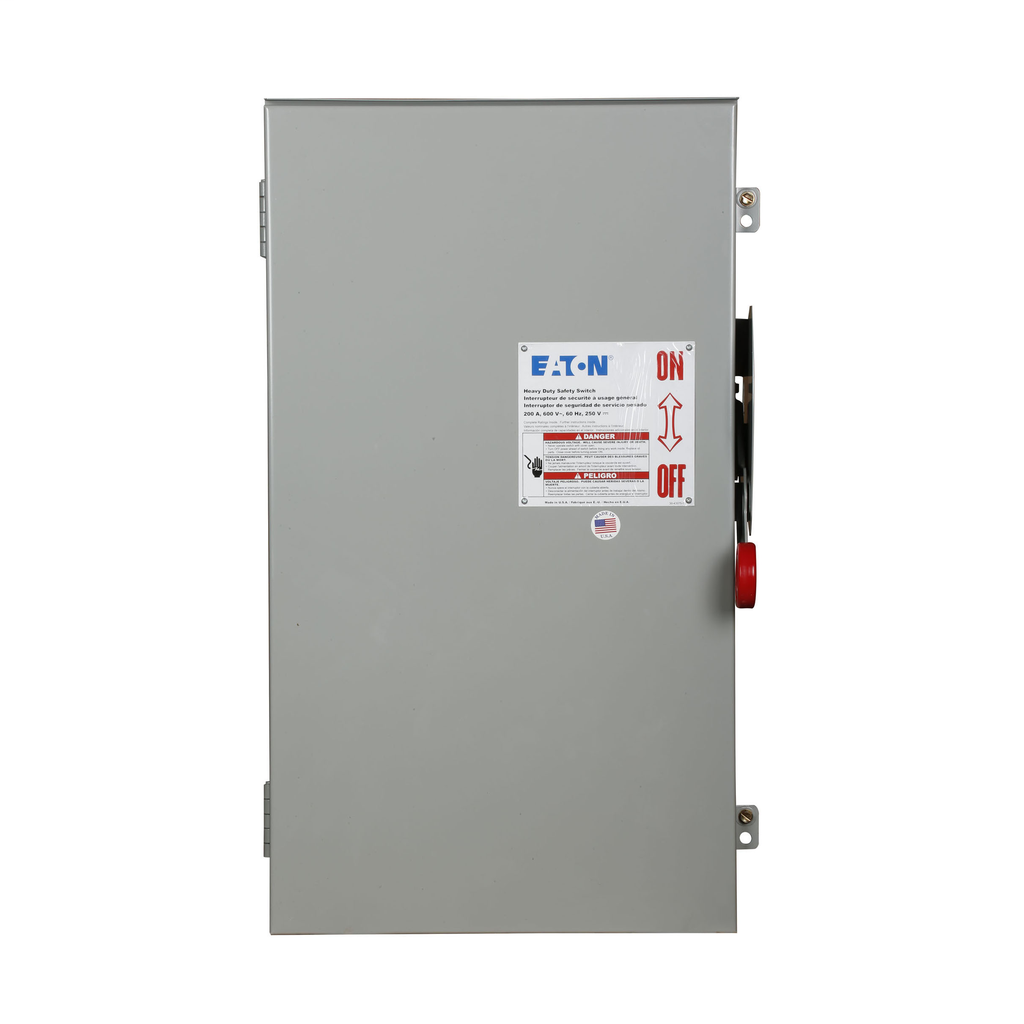

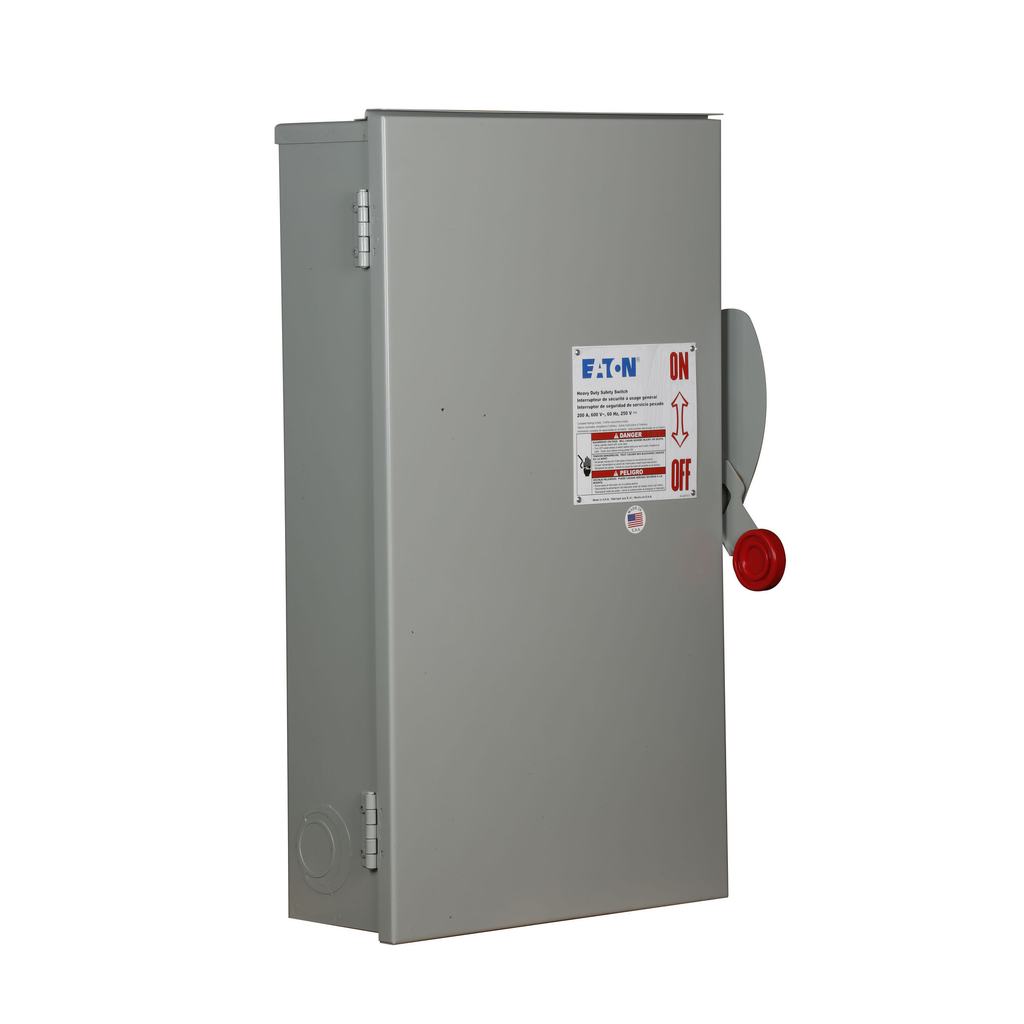

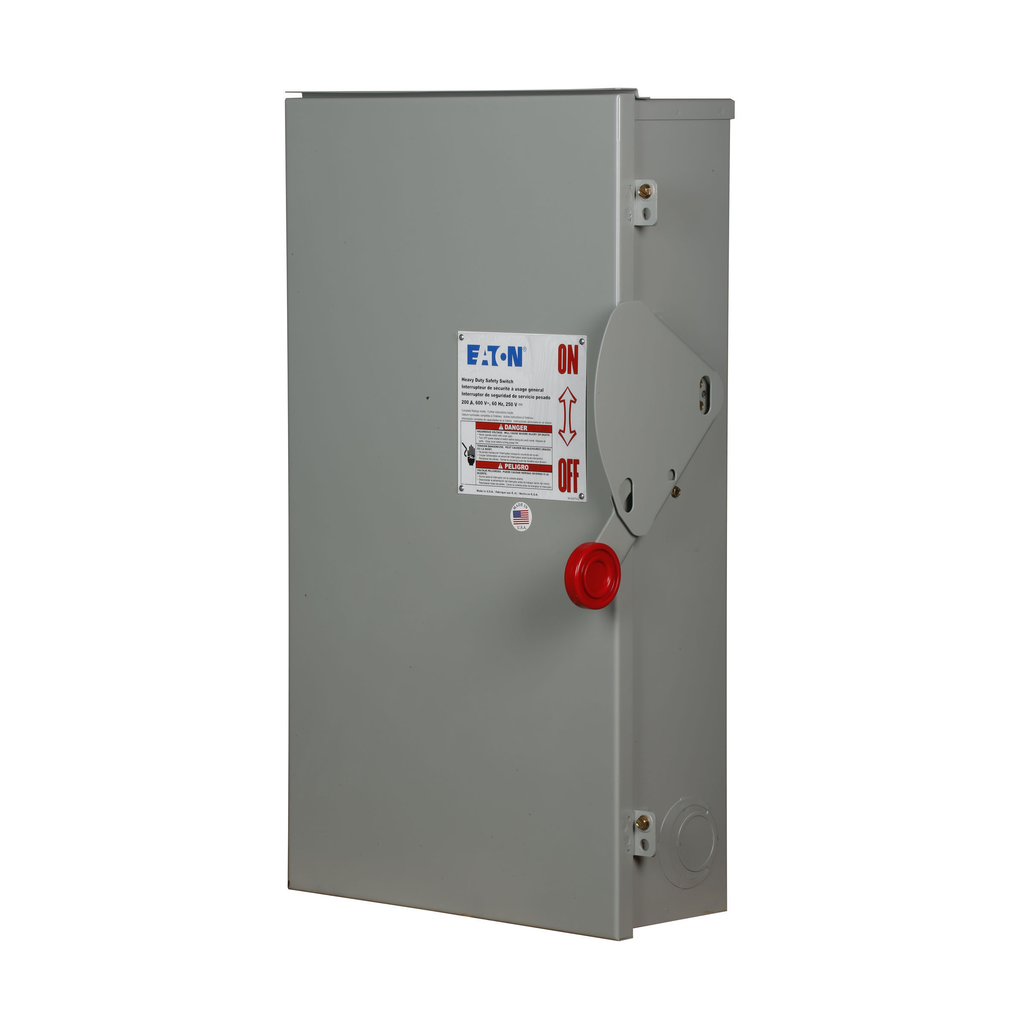

Cutler-Hammer DH364URK Safety Switch 200A 600V 3-Pole Single-Throw NEMA 3R Painted Galvanized Steel
The Eaton heavy duty single-throw non-fused safety switch from Cutler-Hammer is engineered for robust performance and safety in demanding electrical applications. Designed for three-phase systems, it features a NEMA 3R enclosure constructed from painted galvanized steel, making it suitable for both indoor and outdoor installations while providing effective protection against the elements. Rated for 200A and capable of handling a voltage up to 600V, this switch supports a variety of configurations, including non-fusible operations, ensuring flexibility for service entrance applications when combined with the appropriate neutral or ground lug kit. Its impressive horsepower ratings further highlight its capabilities, making it an ideal solution for both industrial and commercial settings requiring reliable and efficient power management.
- UL Listed for safety and compliance assurance
- Non-fusible design for flexible application use
- Heavy duty single-throw design for reliable switching
- Painted galvanized steel NEMA 3R enclosure for corrosion resistance
- Rated for 200A amperage and 600V voltage handling
- Supports three-pole, three-wire three-phase electrical systems
- High horsepower capacity up to 150 HP at 600 V 3-phase
- Suitable for indoor and outdoor installations
- Compatible with service entrance use when combined with neutral or ground lug kit
- Type: Single-throw
- Amperage Rating: 200A
- Max Hp Rating: 15 HP at 240 Vac 1 Ph, 50 HP at 480 Vac 1 Ph, 50 HP at 600 Vac 1 Ph, 60 HP at 240 Vac 3 Ph, 125 HP at 480 Vac 3 Ph, 150 HP at 600 Vac 3 Ph, 40 HP at 250 Vdc
- Voltage Rating: 600V
- Number Of Poles: Three-pole
- Number Of Wires: Three-wire
- Enclosure: NEMA 3R
- Enclosure Material: Painted galvanized steel
- Height: 9.5 in
- Length: 30 in
- Width: 18 in
- Weight: 40 lb
- Compliance: UL Listed
