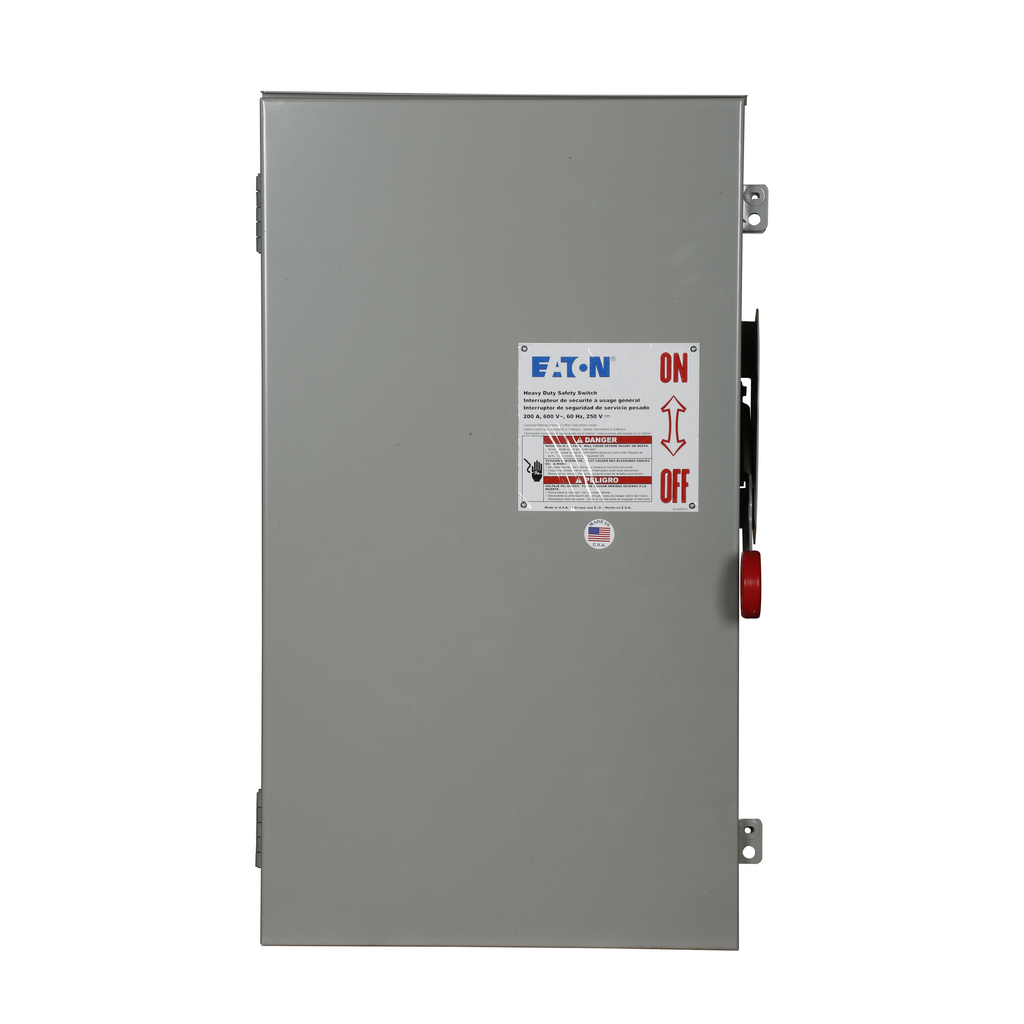

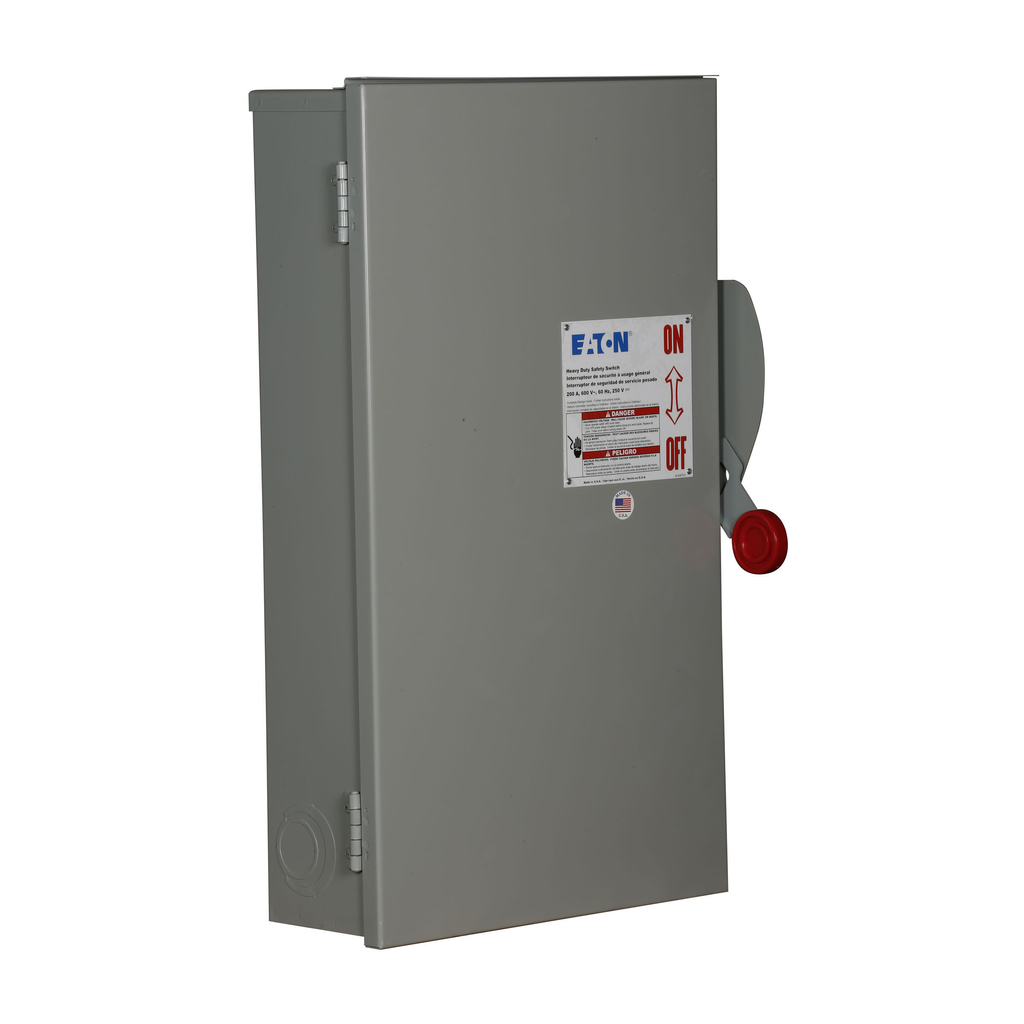

Cutler-Hammer DH364NRK Heavy Duty Fusible Safety Switch 200A 600V Three-Pole Four-Wire Class H NEMA 3R Painted Galvanized Steel
Engineered for robust performance and safety, this fused safety switch from Cutler-Hammer features a three-pole design that accommodates a 200A amperage rating, making it ideal for significant power management in heavy-duty applications. The visible blade mechanism ensures enhanced operability, allowing users to easily see when the switch is in the ON or OFF position, thereby improving safety during maintenance and operation. With a voltage rating of up to 600V and a four-wire configuration, it provides reliable service while supporting various fuse classes, specifically designed for Class H fuses. Encased in a NEMA 3R enclosure made from painted galvanized steel, this switch is designed to withstand external conditions, extending its longevity and performance in demanding environments.

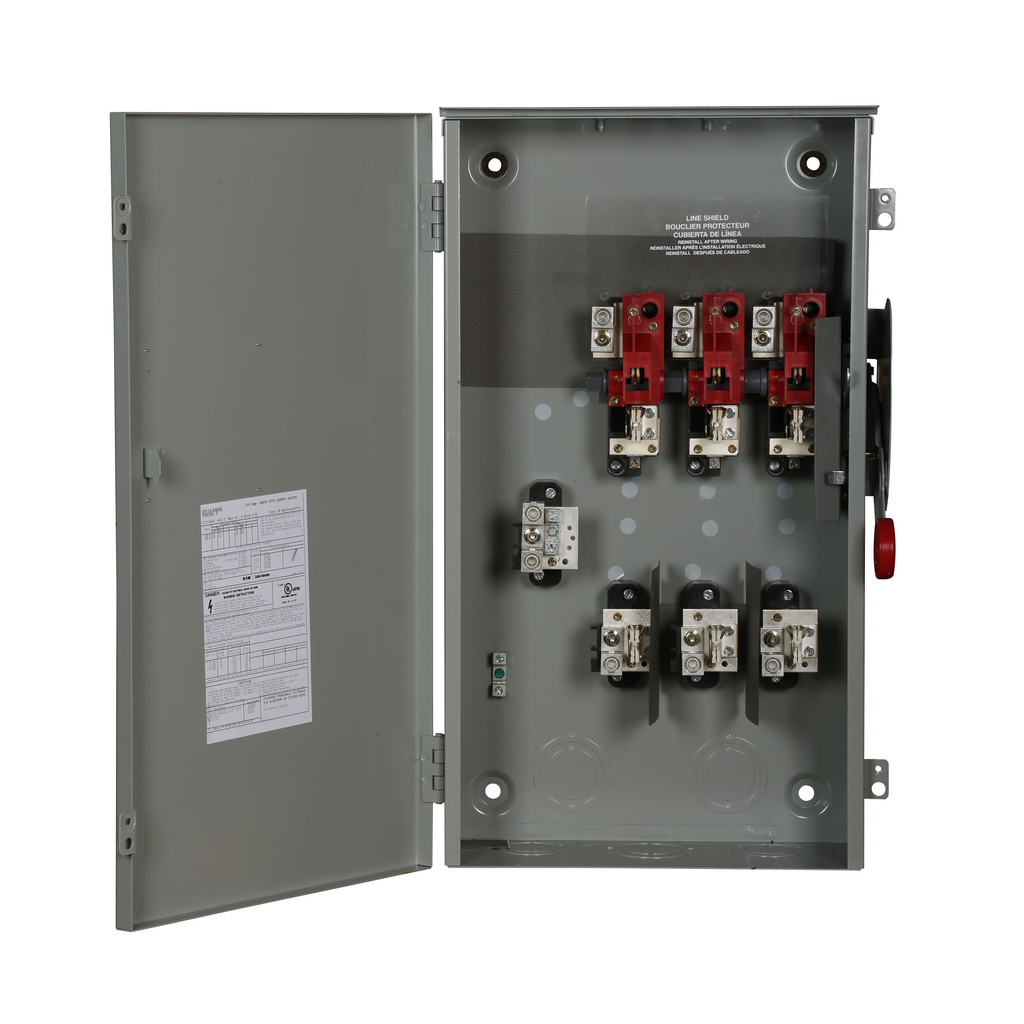

- Visible blade mechanism for enhanced operational safety
- Heavy duty fusible safety switch for robust power management
- Supports Class H fuses for reliable protection
- 200A amperage rating for high current applications
- 600V voltage rating suitable for industrial use
- Three-pole design for comprehensive circuit control
- Four-wire configuration including neutral for versatile wiring
- NEMA 3R enclosure protects against outdoor elements
- Painted galvanized steel enclosure for corrosion resistance
- UL Listed for verified safety and compliance
- Amperage Rating: 200A
- Voltage Rating: 600V
- Max Hp Rating: 50, 50/125, 150 hp (1/3PH @480, 600 V)
- Number Of Poles: Three-pole
- Number Of Wires: Four-wire
- Fuse Configuration: Fusible with neutral
- Fuse Class Provision: Class H
- Type: Heavy duty fusible safety switch
- Height: 9.5 in
- Length: 30 in
- Width: 18 in
- Weight: 52 lb
- Enclosure: NEMA 3R
- Enclosure Material: Painted galvanized steel
- Compliance: UL Listed
