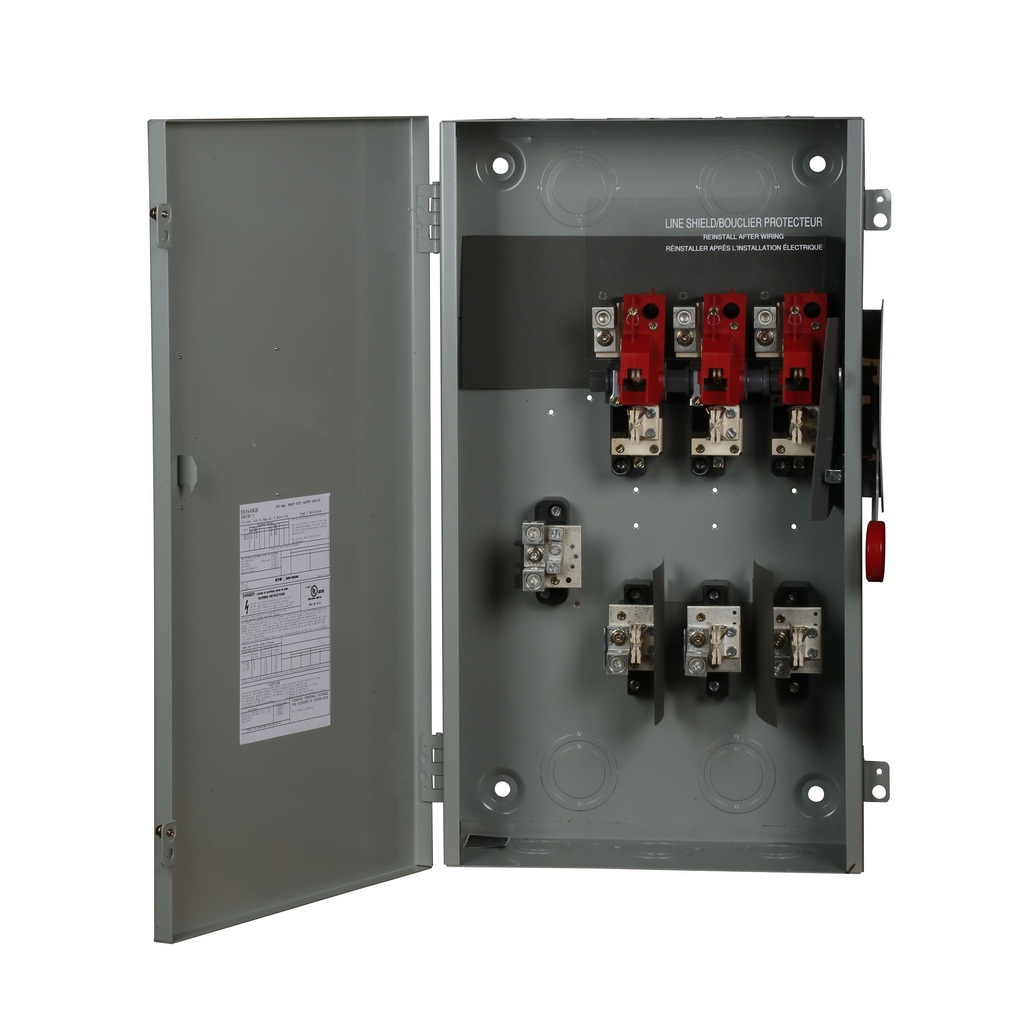

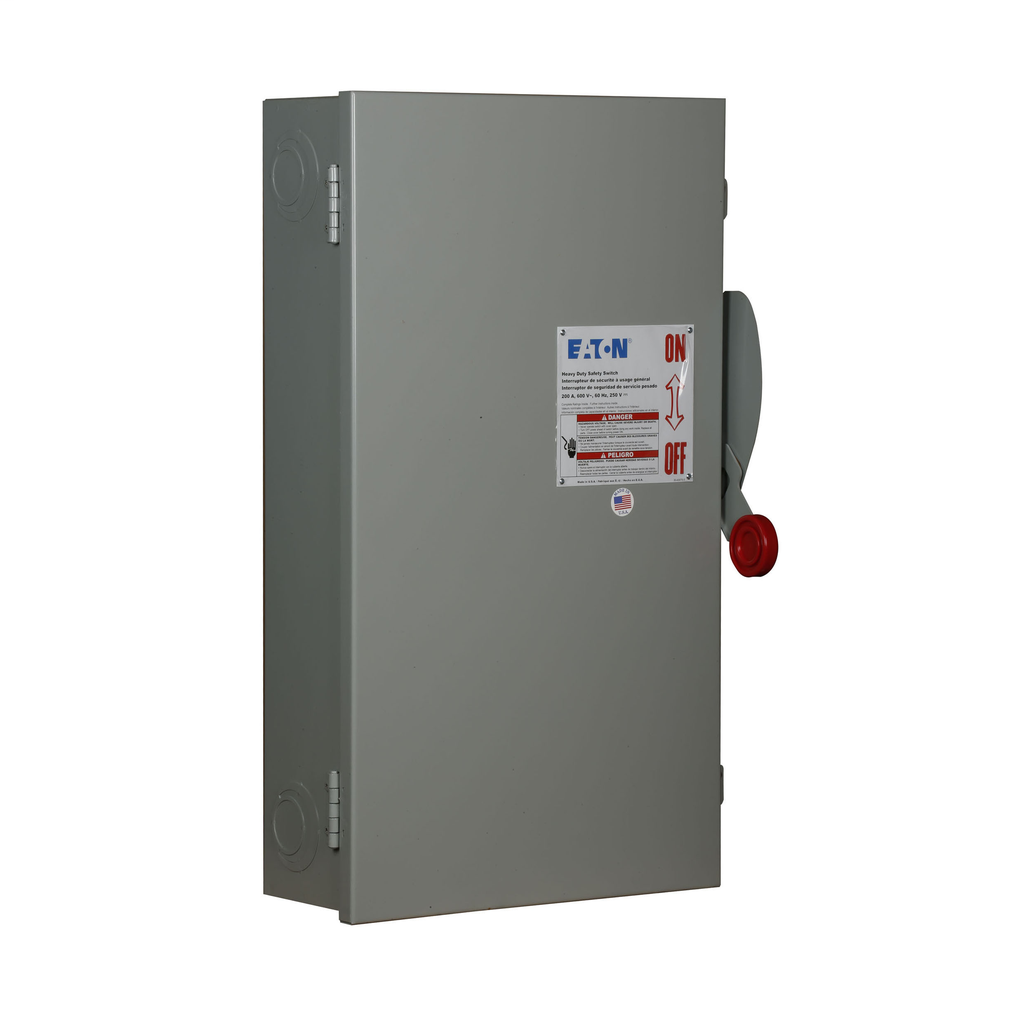

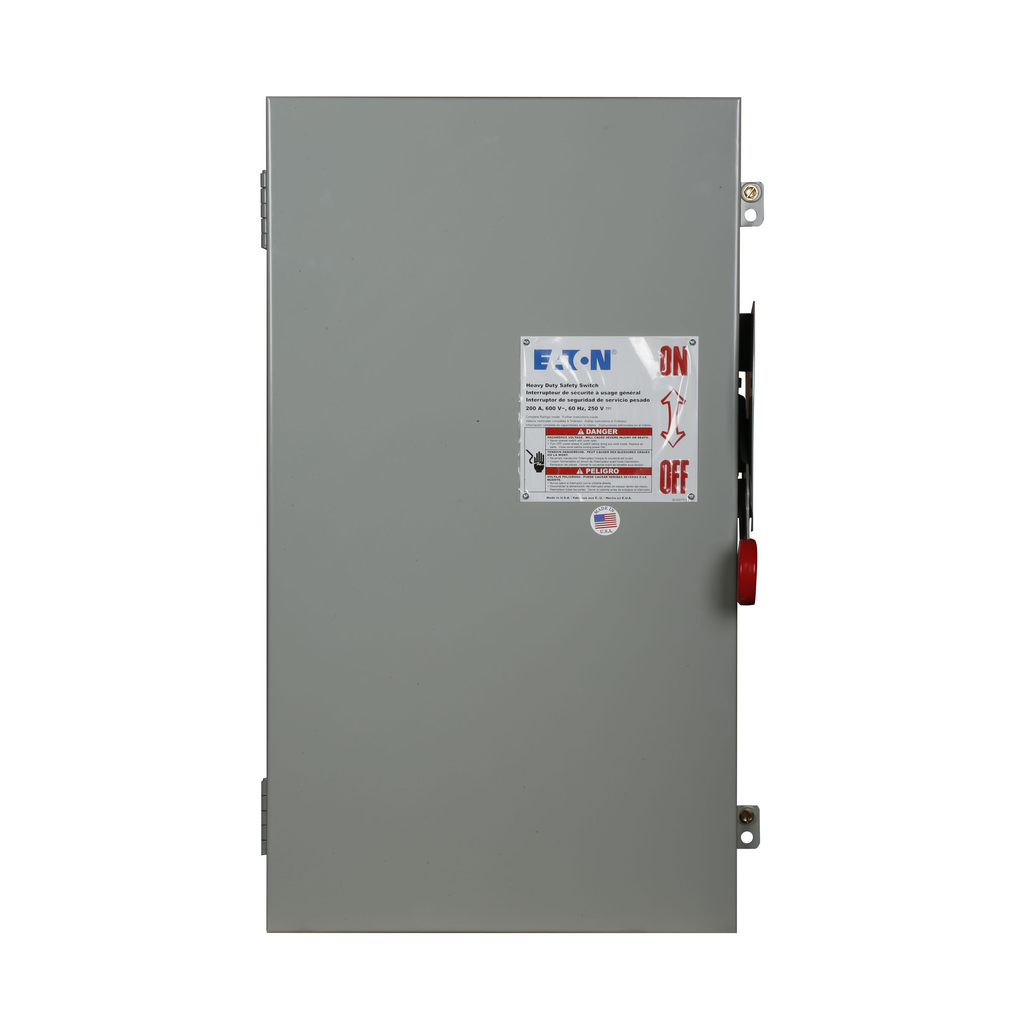

Cutler-Hammer DH364NGK Heavy Duty Fusible Safety Switch 600V 200A Three-pole Fusible with neutral NEMA 1 Painted steel
Featuring robust construction and reliable performance, the Eaton heavy duty single-throw fused safety switch is designed to meet the demanding requirements of modern electrical systems. With a maximum voltage rating of 600V and an impressive 200A amperage rating, this three-pole switch provides critical protection in a variety of applications. Its NEMA 1 enclosure, crafted from durable painted steel, ensures it is well-equipped to handle both indoor environments and diverse industrial settings. This switch not only boasts a fusible configuration with a neutral but is also compatible with various fuse classes, making it an essential component for maintaining safe and efficient operations. Ideal for applications that require dependable switching, this heavy-duty safety switch stands out for its versatility and enhanced safety features.
- UL Listed certification assuring compliance with safety standards
- Fusible with neutral setup enhances electrical safety management
- 200A amperage rating for high current capacity
- Rated to 600V for reliable industrial voltage applications
- Three-pole configuration providing comprehensive three-phase switching
- Four-wire design for improved neutral and grounding capabilities
- NEMA 1 painted steel enclosure suitable for indoor use and industrial environments
- Heavy-duty fusible design for robust circuit protection
- Compatible with Class H fuses for effective overcurrent protection
- Supports motors up to 150 hp at 480-600V for versatile heavy machinery use
- Amperage: 200A
- Voltage: 600V
- Max Hp Rating: 50, 50/125, 150 hp (1/3PH @480, 600 V)
- Length: 30 in.
- Width: 18 in.
- Height: 9.5 in.
- Weight: 38 lb
- Number of Poles: Three-pole
- Number of Wires: Four-wire
- Type: Heavy duty fusible safety switch
- Enclosure: NEMA 1
- Material: Painted steel
- Fuse Class: Class H
- Fuse Configuration: Fusible with neutral
- Compliance: UL Listed
