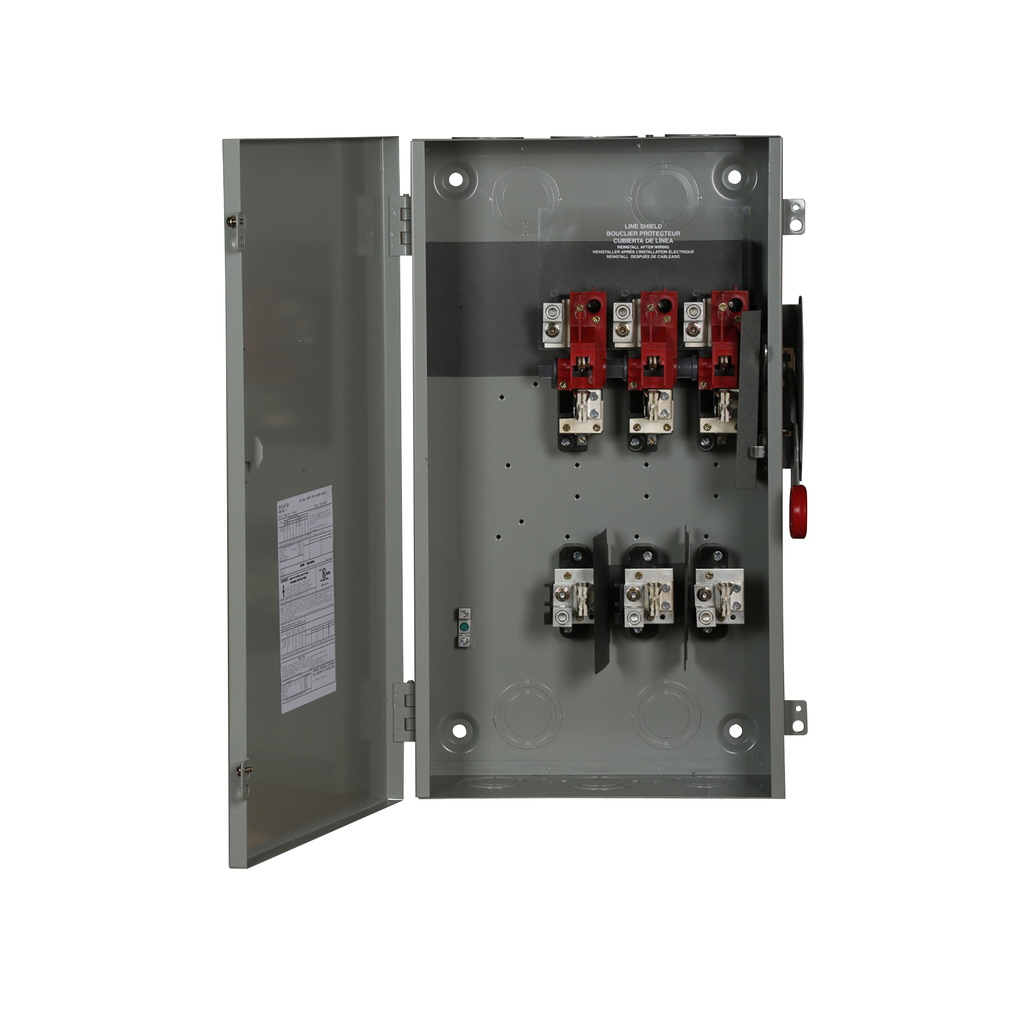

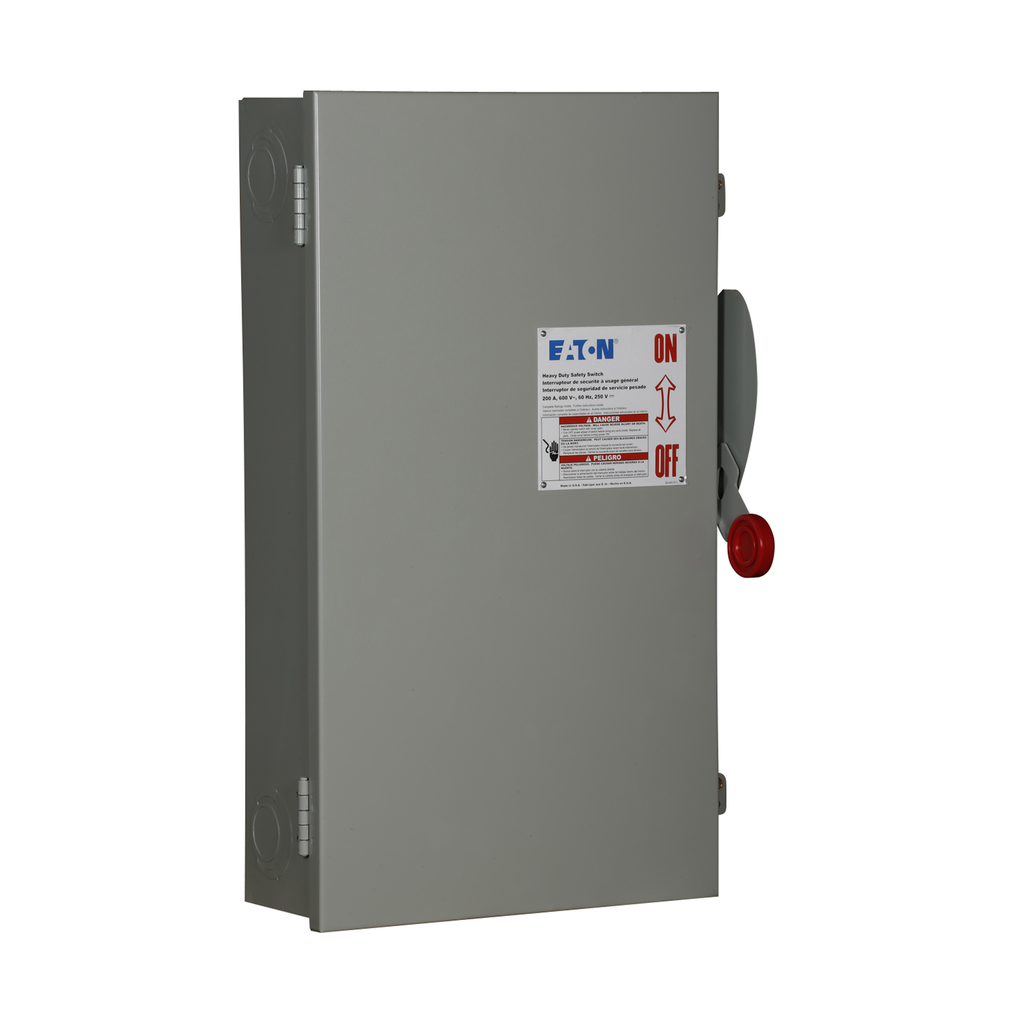

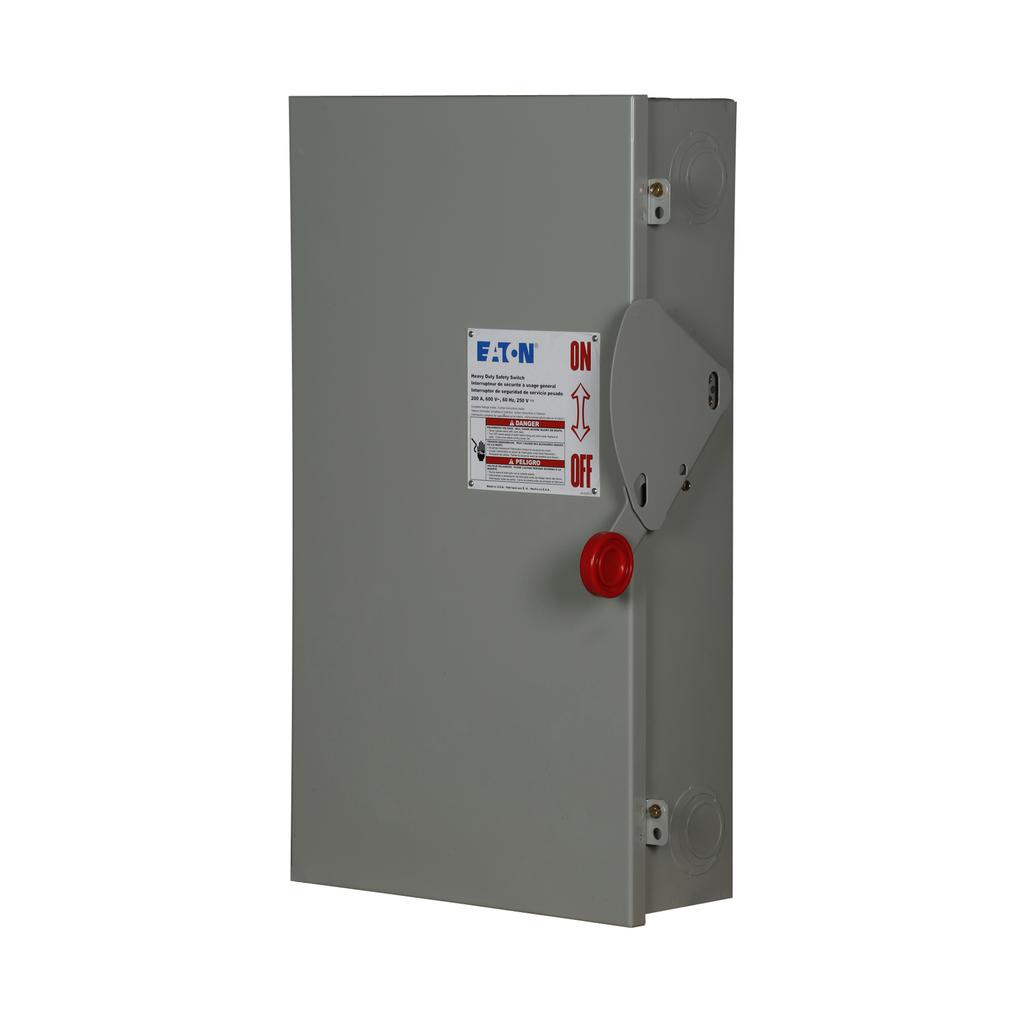

Cutler-Hammer DH364FGK Heavy Duty Fusible Safety Switch 200A 600V Three-Pole Class H NEMA 1 Painted Steel
Engineered for reliability in demanding environments, this heavy-duty safety switch is an essential component for industrial applications. It features a robust three-pole configuration and provides a maximum horsepower rating of 150 hp, making it adaptable for varied electrical loads. With a durable NEMA 1 enclosure crafted from painted steel, it ensures protection against incidental contact and environmental factors. Designed to handle 200A at a voltage rating of 600V, it includes a fusible configuration that operates without a neutral, catering to your specific service entrance requirements when paired with a compatible Neutral Kit. This safety switch is not just functional, but also a vital safety measure, facilitating efficient operation in electrical systems.
- UL Listed for verified safety and compliance
- Fusible switch design for reliable circuit protection
- Three-pole configuration for balanced power distribution
- Rated 200A and 600V for industrial electrical systems
- 150 hp maximum horsepower rating for versatile applications
- Painted steel NEMA 1 enclosure protects against incidental contact
- Fusible switch without neutral adaptable with Neutral Kit for service entrance use
- Three-wire setup compatible with standard industrial wiring
- Amperage: 200A
- Voltage: 600V
- Max Hp Rating: 50, 50/125, 150 hp (1/3 PH @ 480, 600 V)
- Number Of Poles: Three-pole
- Number Of Wires: Three-wire
- Type: Heavy duty fusible safety switch
- Enclosure: NEMA 1
- Material: Painted steel
- Fuse Class: Class H
- Fuse Configuration: Fusible without neutral
- Height: 9.5 in
- Length: 30 in
- Width: 18 in
- Weight: 48 lb
- Compliance: UL Listed
