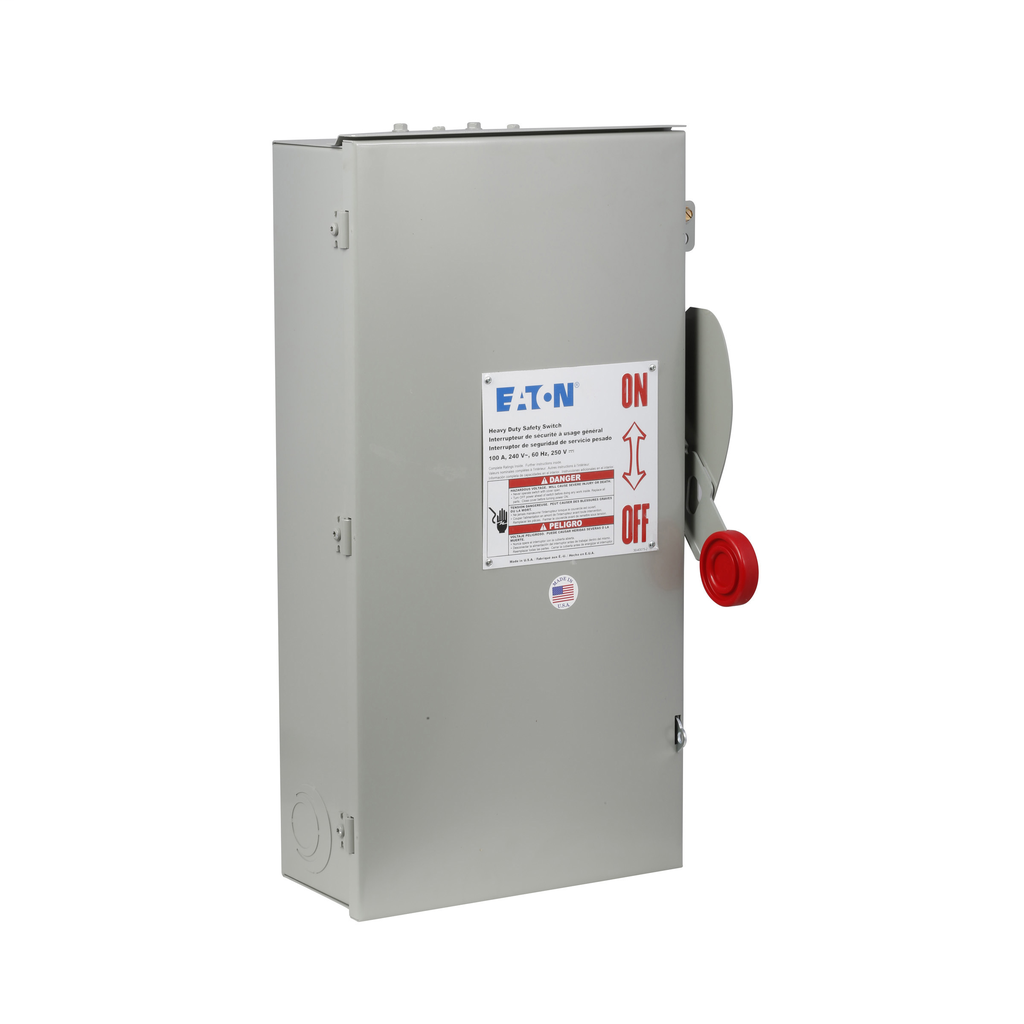

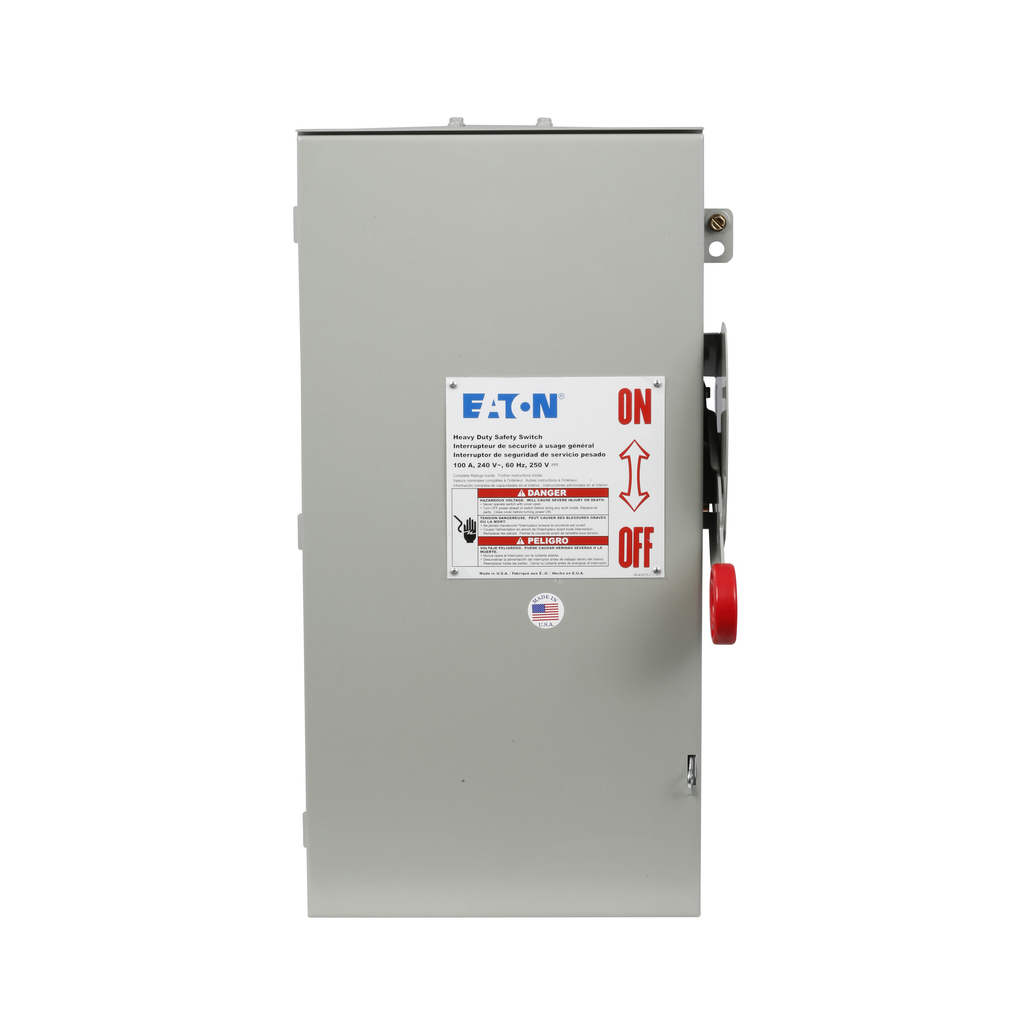

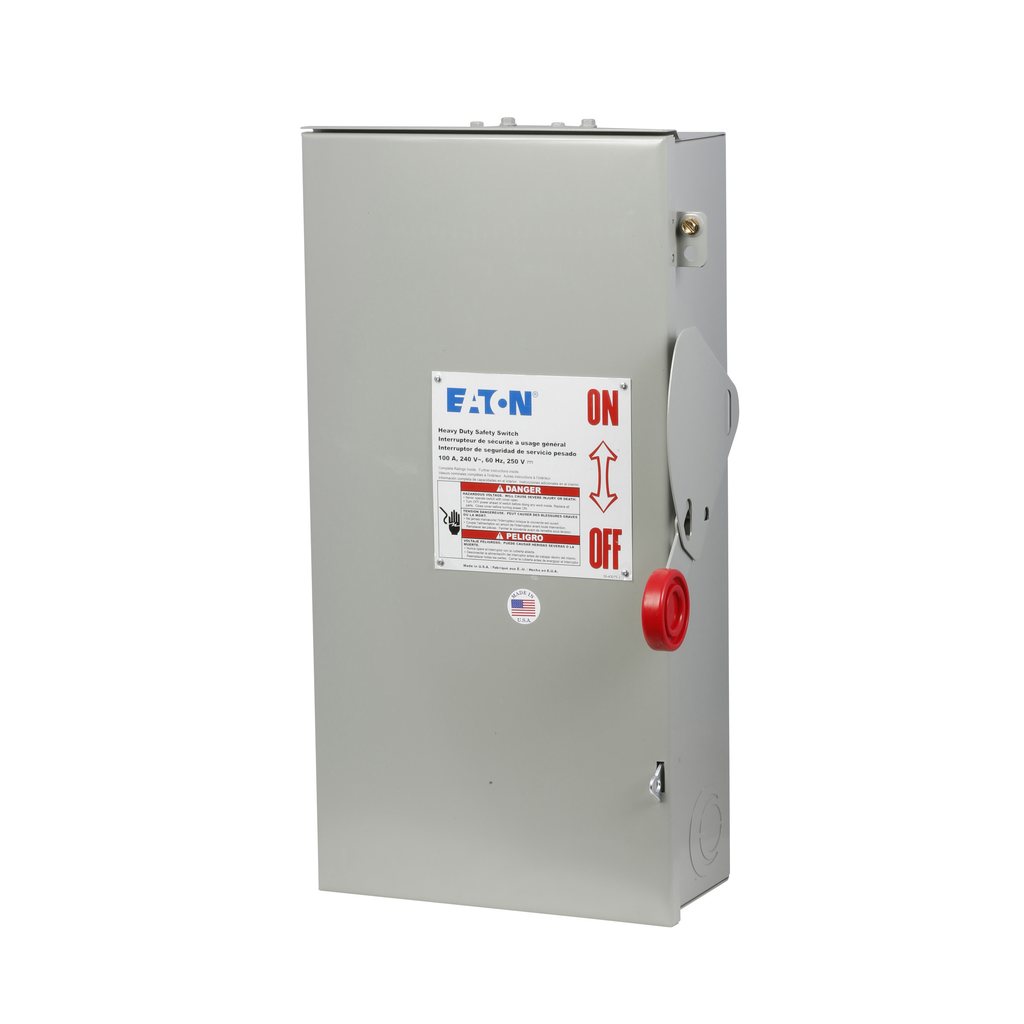

Cutler-Hammer DH363URK Safety Switch 100A 600V Three-Pole Non-Fusible NEMA 3R Painted Galvanized Steel
Engineered for robust performance, the Eaton heavy-duty single-throw non-fused safety switch by Cutler-Hammer stands out with its three-pole configuration designed to enhance electrical service entrance capabilities. With a commendable amperage rating of 100A and a voltage rating up to 600V, this switch is suitable for demanding industrial applications, particularly when equipped with a neutral or ground lug kit. Its NEMA 3R enclosure, made from painted galvanized steel, ensures durability and protection against the elements, making it ideal for outdoor installations. The ability to handle substantial horsepower ratings further elevates its utility for various electrical setups, making it a reliable choice for professionals seeking uncompromised safety and performance.
- UL Listed for safety assurance and compliance
- NEMA 3R enclosure ensures weather and corrosion resistance
- Painted galvanized steel enclosure for durability and rust protection
- Non-fusible design for safe electrical isolation
- Heavy-duty single-throw design for reliable operation
- Three-pole configuration for enhanced electrical control
- 100A amperage rating suitable for industrial use
- Rated up to 600V for high-voltage applications
- Supports high horsepower loads for versatile electrical setups
- Compatible with neutral or ground lug kits for flexible installation
- Amperage: 100A
- Voltage: 600V
- Max HP Rating: 20 at 240 Vac TD 1 Ph, 40 at 480 Vac TD 1 Ph, 50 at 600 Vac TD 1 Ph, 40 at 240 Vac TD 3 Ph, 75 at 480 Vac TD 3 Ph, 100 at 600 Vac TD 3 Ph, 20 at 250 Vdc
- Type: Single-throw
- Number of Poles: Three-pole
- Number of Wires: Three-wire
- Length: 22.5 in
- Width: 12.5 in
- Height: 8.5 in
- Weight: 22 lb
- Material: Painted galvanized steel
- Enclosure: NEMA 3R
- Fuse Configuration: Non-fusible
- Compliance: UL Listed
