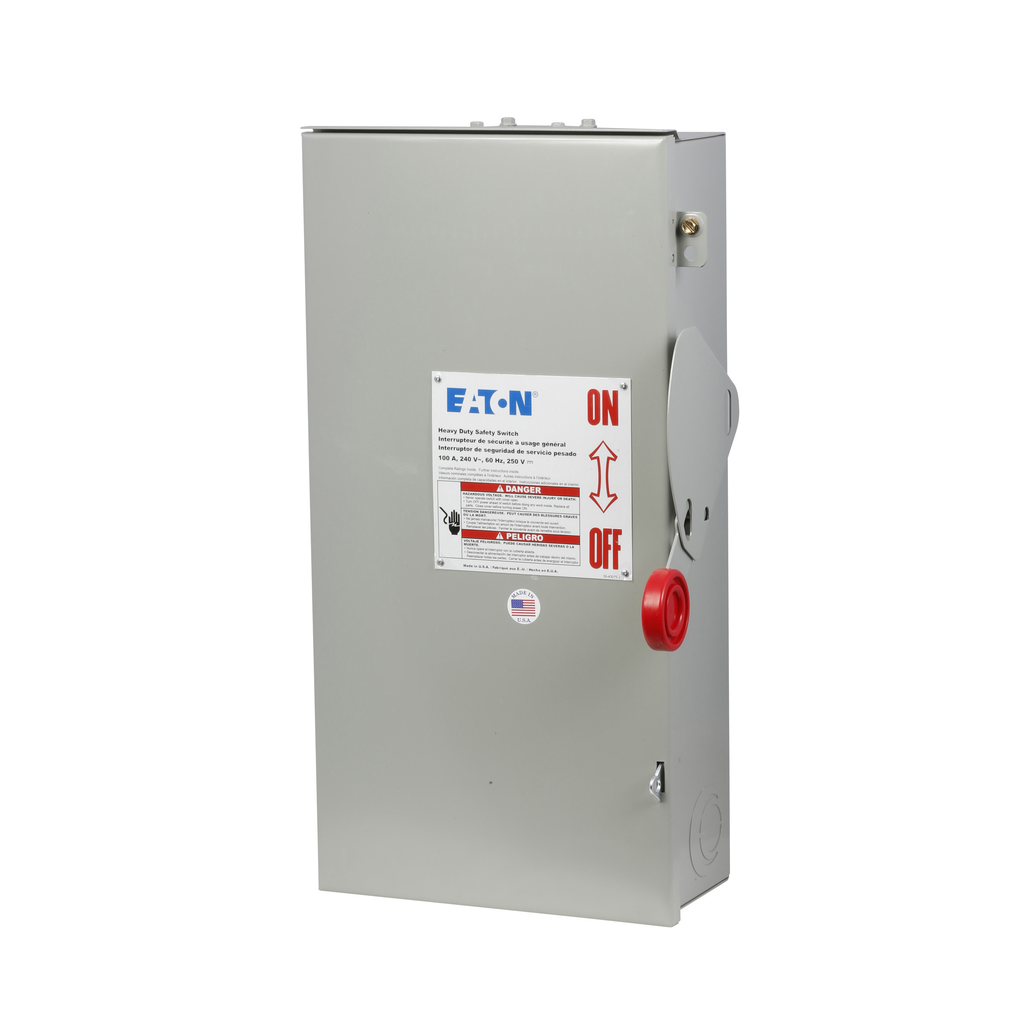

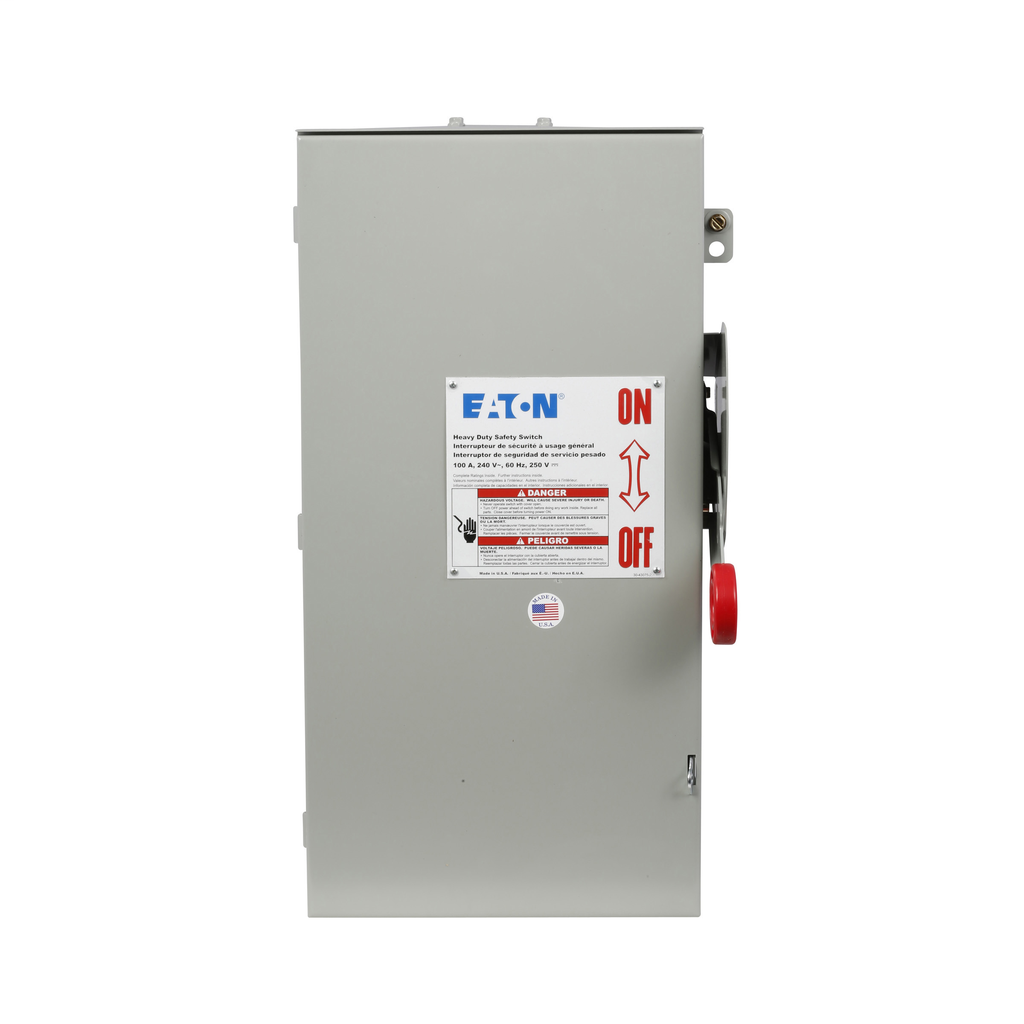

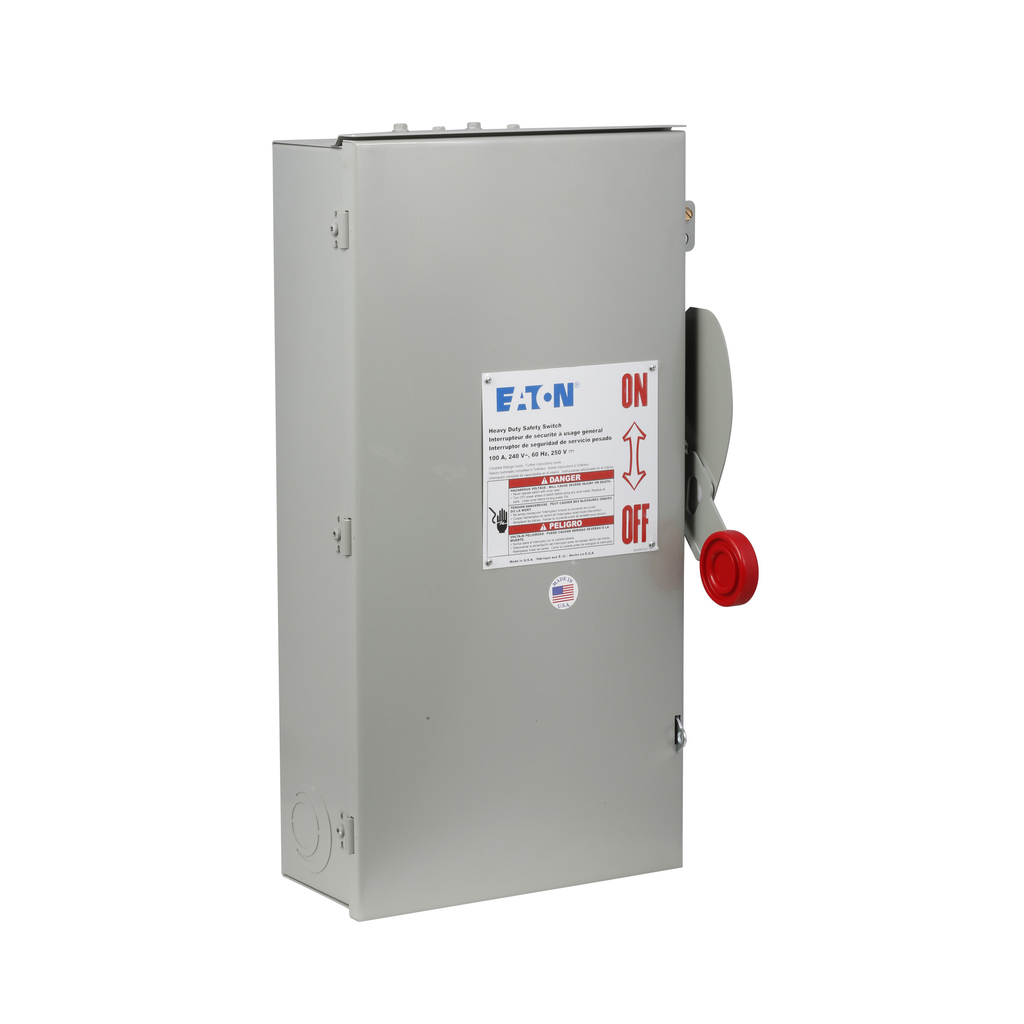

Cutler-Hammer DH363NRK Heavy Duty Fusible Safety Switch 100A 600V 3-Pole NEMA 3R Painted Galvanized Steel
Introducing a reliable solution for heavy-duty electrical systems, the Eaton enhanced visible blade single-throw fused safety switch by Cutler-Hammer is engineered to meet the demanding needs of industrial applications. This robust device, constructed from painted galvanized steel, is designed to house fusible safety configurations with an impressive amperage rating of 100A. Equipped with a NEMA 3R enclosure, it ensures dependable performance in various environments while providing essential protection for three-pole operations. Designed to accommodate up to four wires and a maximum horsepower rating of 75 hp, this safety switch is not only versatile but also highly functional, facilitating efficient management of electrical loads. Whether used for maintenance or as a primary disconnect, its enhanced design emphasizes safety and visibility, making it a critical component for any heavy-duty electrical setup.
- UL Listed for safety and compliance assurance
- Heavy-duty fusible safety switch for industrial use
- Rated for 100A amperage to handle high electrical loads
- Compatible with Class H fuses providing high interrupting capacity
- Fusible with neutral configuration for comprehensive circuit protection
- NEMA 3R rated enclosure suitable for outdoor and harsh environments
- Painted galvanized steel enclosure for corrosion resistance
- Enhanced visible blade for improved safety indication
- Supports three-pole, four-wire electrical connections
- Maximum horsepower rating up to 75 hp for versatile motor control
- Amperage: 100A
- Voltage: 600V
- Max HP Rating: 30, 40/60, 75 hp (1/3PH @480, 600 V)
- Height: 8.5 in
- Length: 22.5 in
- Width: 12.75 in
- Weight: 22 lb
- Number of Poles: Three-pole
- Number of Wires: Four-wire
- Material: Painted galvanized steel
- Enclosure: NEMA 3R
- Fuse Class: Class H
- Fuse Configuration: Fusible with neutral
- Type: Heavy duty fusible safety switch
