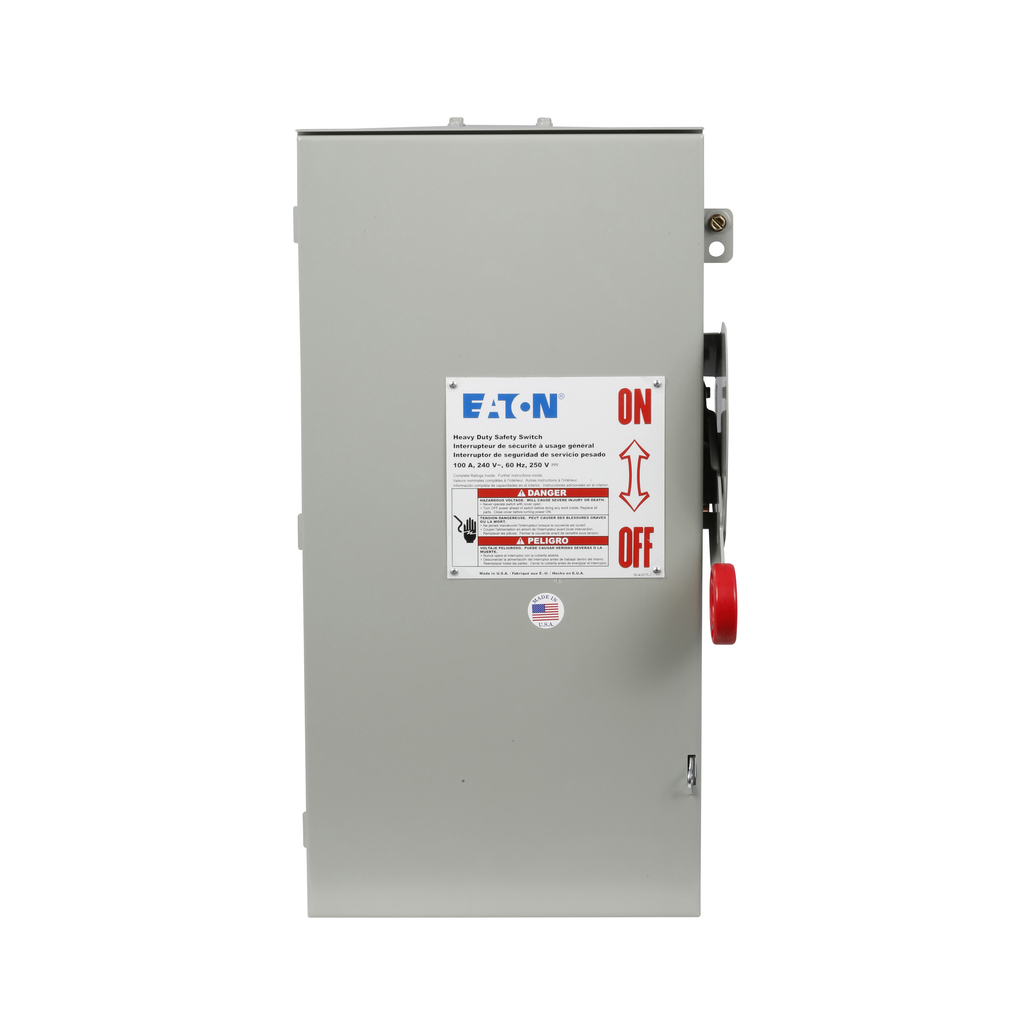

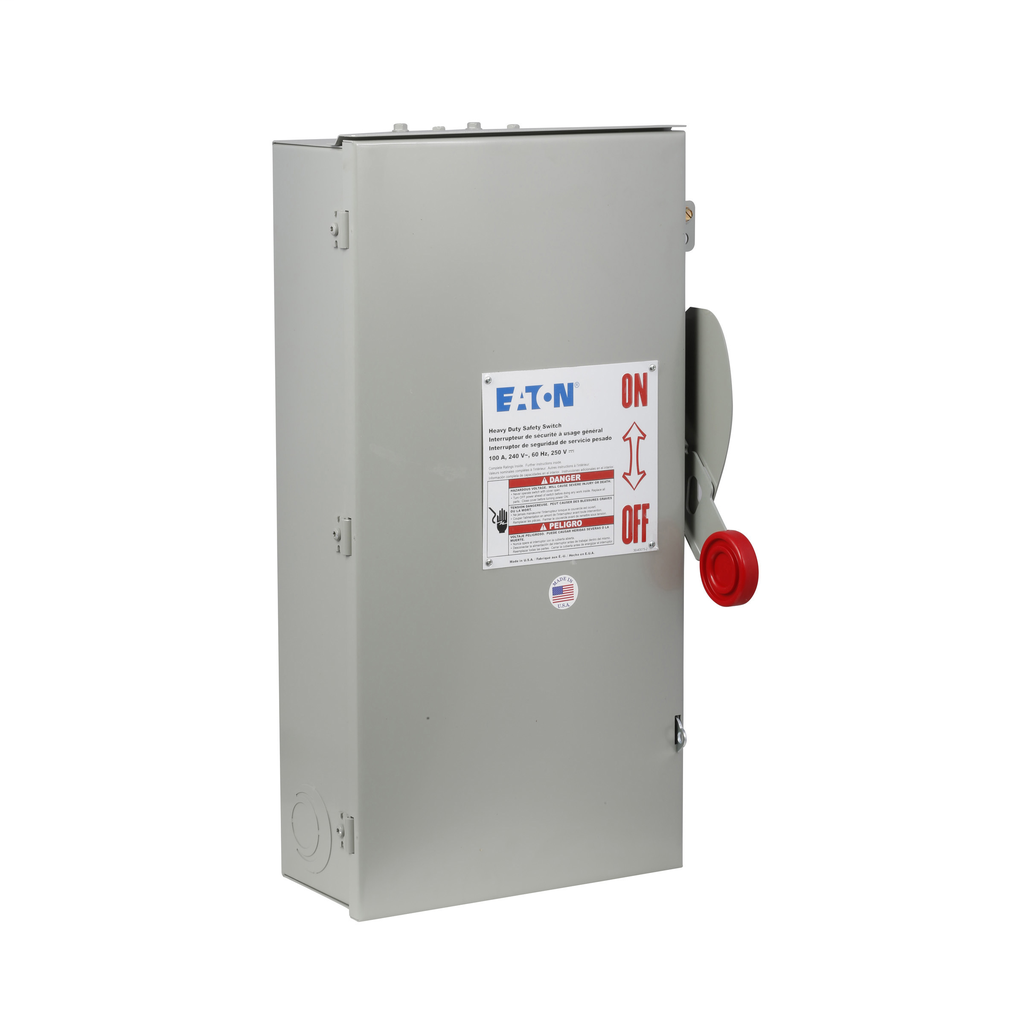

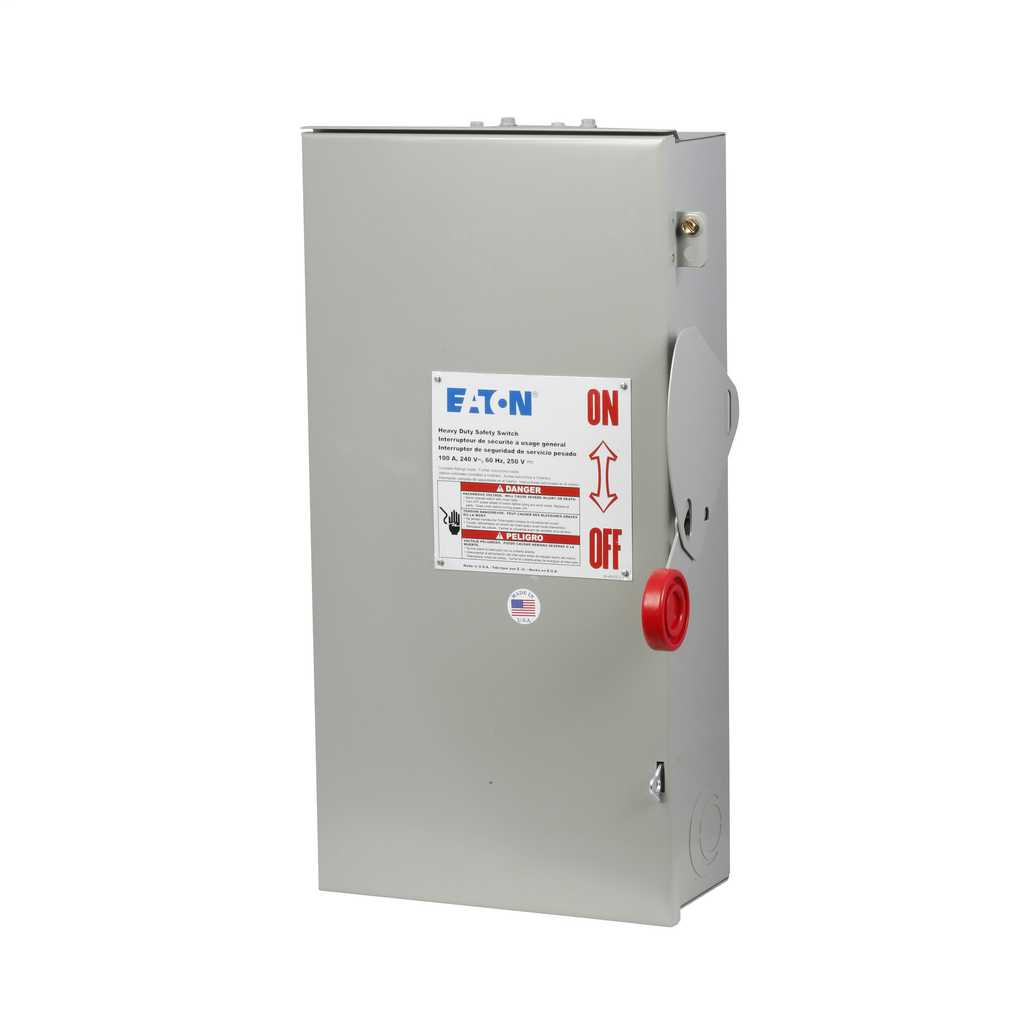

Cutler-Hammer DH363FRK Heavy Duty Fusible Safety Switch 100A 600V Three-pole NEMA 3R Painted Galvanized Steel
Engineered for robust performance, the Eaton enhanced visible blade single-throw fused safety switch by Cutler-Hammer is a reliable solution for heavy-duty applications. This three-pole switch features a 100A amperage rating and a voltage rating of 600V, making it suitable for service entrance use when equipped with a Neutral Kit. Its fusible configuration is designed without a neutral, providing flexibility in various electrical systems. Constructed from painted galvanized steel, the NEMA 3R enclosure ensures durability in outdoor settings while protecting against dust and moisture. With a maximum horsepower rating of up to 75 hp, it is well-suited for both residential and commercial needs. This switch stands out for its visible blade design, allowing for easy identification of the on/off status, enhancing safety and maintenance efficiency.
- UL Listed for safety and compliance assurance
- Enhanced visible blade design for easy on/off status identification
- Heavy-duty fusible switch for reliable overload protection
- 100A amperage rating for robust electrical performance
- 600V voltage rating suitable for industrial applications
- NEMA 3R enclosure provides dust and moisture protection for outdoor use
- Painted galvanized steel enclosure ensures corrosion resistance and durability
- Three-pole, three-wire configuration for versatile electrical setups
- Fusible without neutral design for flexible wiring options
- Supports up to 75 hp motor loads for commercial and residential use
- Amperage: 100A
- Voltage: 600V
- Max Horsepower: 30, 40/60, 75 hp (1/3PH @480, 600V)
- Number of Poles: Three-pole
- Number of Wires: Three-wire
- Type: Heavy duty fusible safety switch
- Fuse Class: Class H
- Fuse Configuration: Fusible without neutral
- Enclosure: NEMA 3R
- Enclosure Material: Painted galvanized steel
- Length: 22.5 in
- Height: 9 in
- Width: 12.75 in
- Weight: 21 lb
- Compliance: UL Listed
