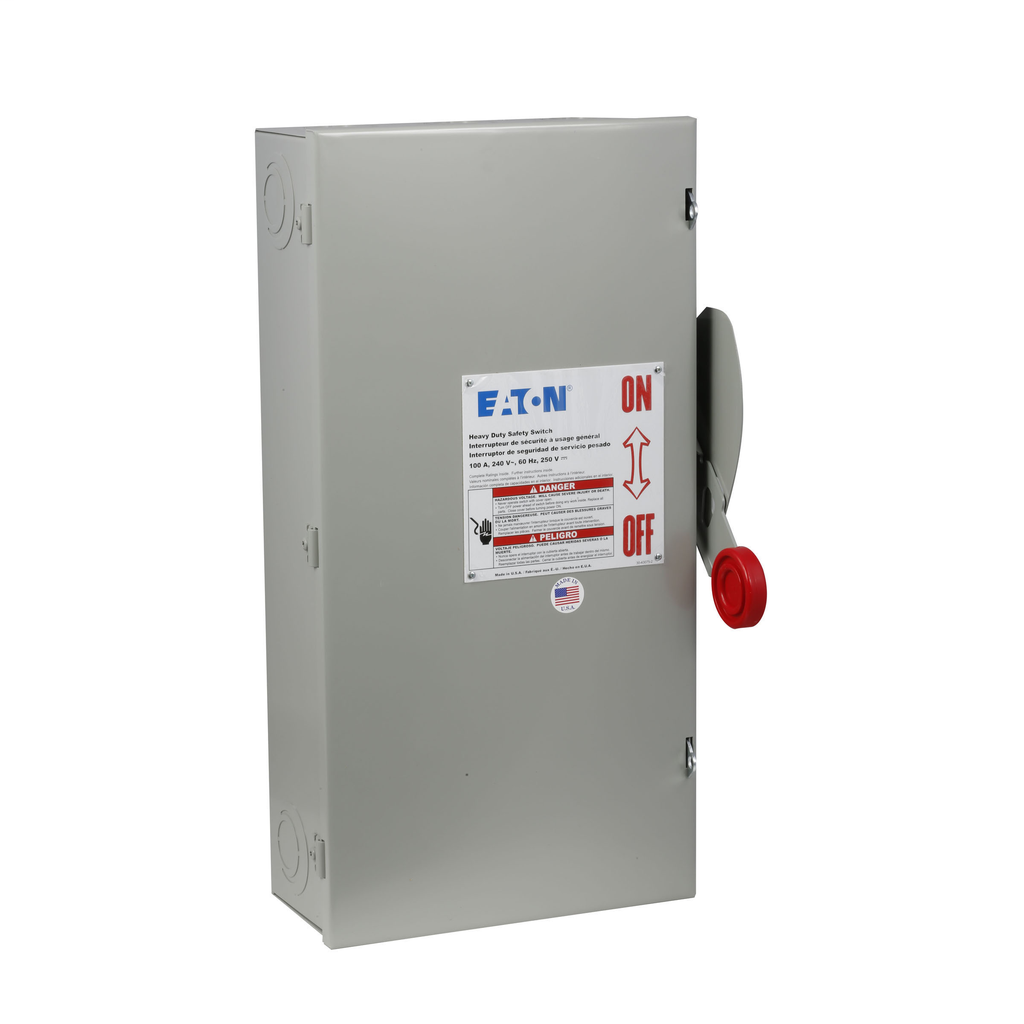

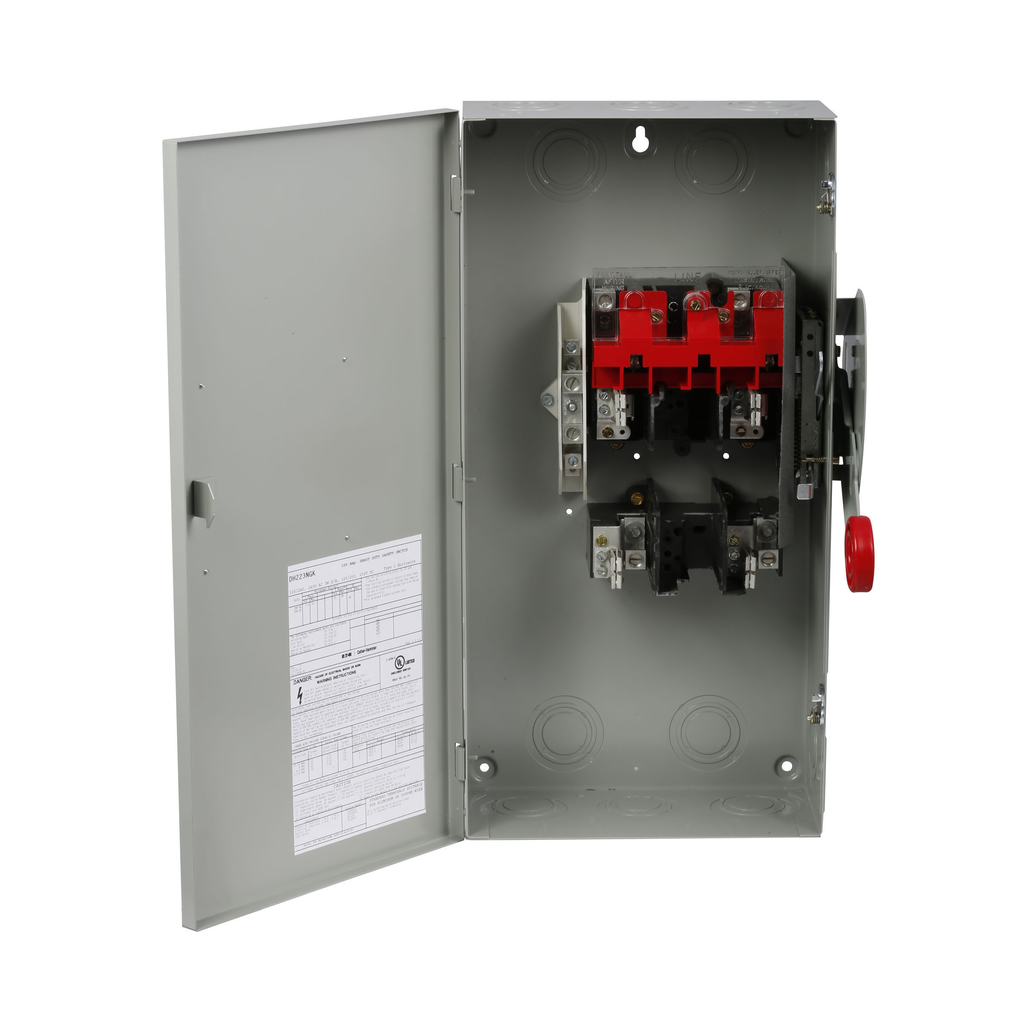

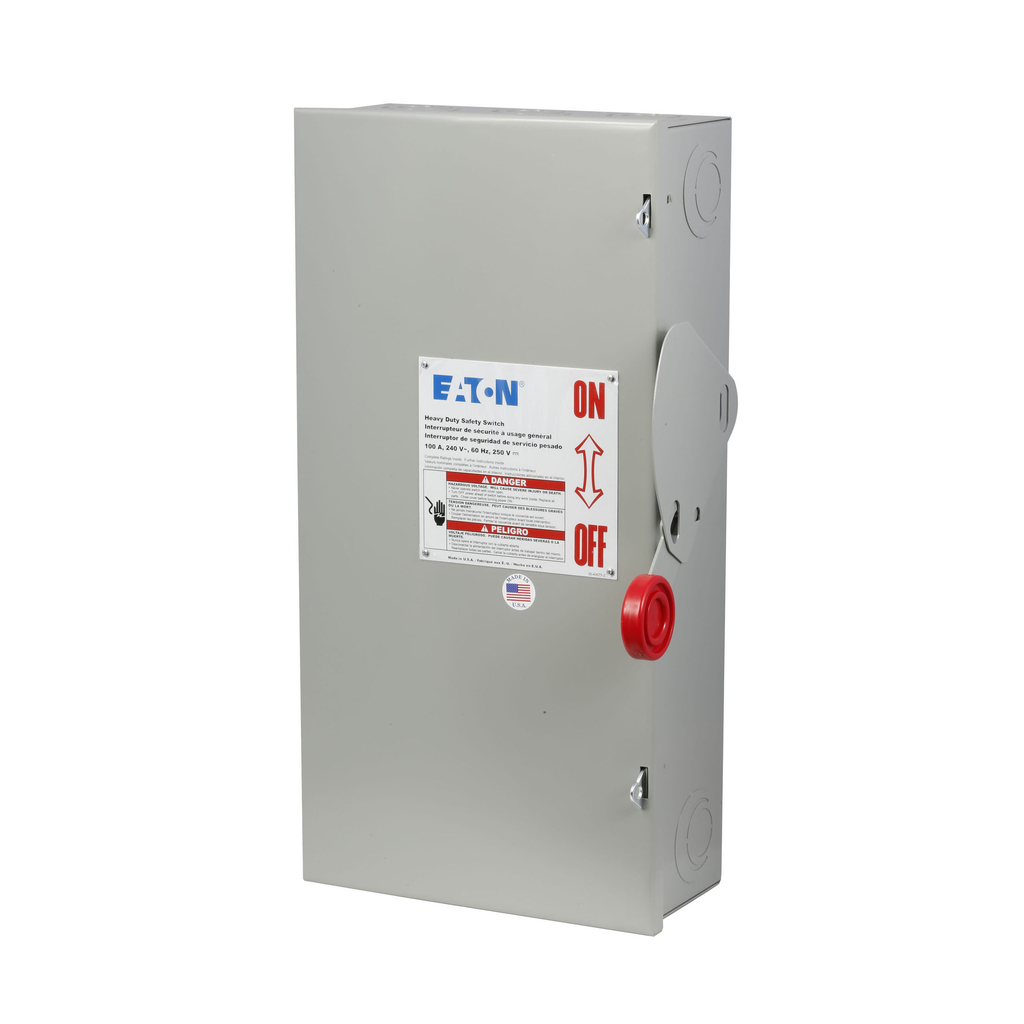

Cutler-Hammer DH363FGK Heavy Duty Fusible Safety Switch 100A 600V Three-Pole NEMA 1 Painted Steel Class H
Cutler-Hammer offers a reliable solution with their heavy-duty fused safety switch, designed for demanding electrical systems. This single-throw switch is configured for fusible operation without a neutral, accommodating three-wire setups with a robust amperage rating of 100A and a voltage rating of up to 600V. Engineered to handle significant power loads, including a maximum horsepower rating of 75 hp for three-phase applications, it’s suitable for service entrance use when equipped with a neutral kit. Encased in durable painted steel and featuring a NEMA 1 enclosure, this switch not only ensures safety and performance but also withstands the rigors of industrial environments. Whether for installation in commercial settings or heavy-duty applications, this safety switch is built to deliver steadfast protection and reliability.
- UL Listed for safety assurance and regulatory compliance
- Class H fuse provision for reliable overcurrent protection
- Heavy-duty fusible safety switch for industrial applications
- Rated for 100A amperage to handle high power loads
- 600V voltage rating suitable for commercial electrical systems
- Supports up to 75 hp at 480/600V for three-phase motors
- Three-pole design for three-wire setups
- Fusible without neutral configuration for simplified installation
- NEMA 1 painted steel enclosure offers durability and protection
- Suitable for service entrance use when installed with neutral kit
- Amperage Rating: 100A
- Voltage Rating: 600V
- Max Horsepower Rating: 30, 40/60, 75 hp (1/3 PH @480, 600 V)
- Number of Poles: Three-pole
- Number of Wires: Three-wire
- Fuse Configuration: Fusible without neutral
- Fuse Class Provision: Class H
- Enclosure: NEMA 1
- Enclosure Material: Painted steel
- Length: 22.5 in
- Width: 12.5 in
- Height: 8.5 in
- Weight: 21 lb
- Type: Heavy duty fusible safety switch
