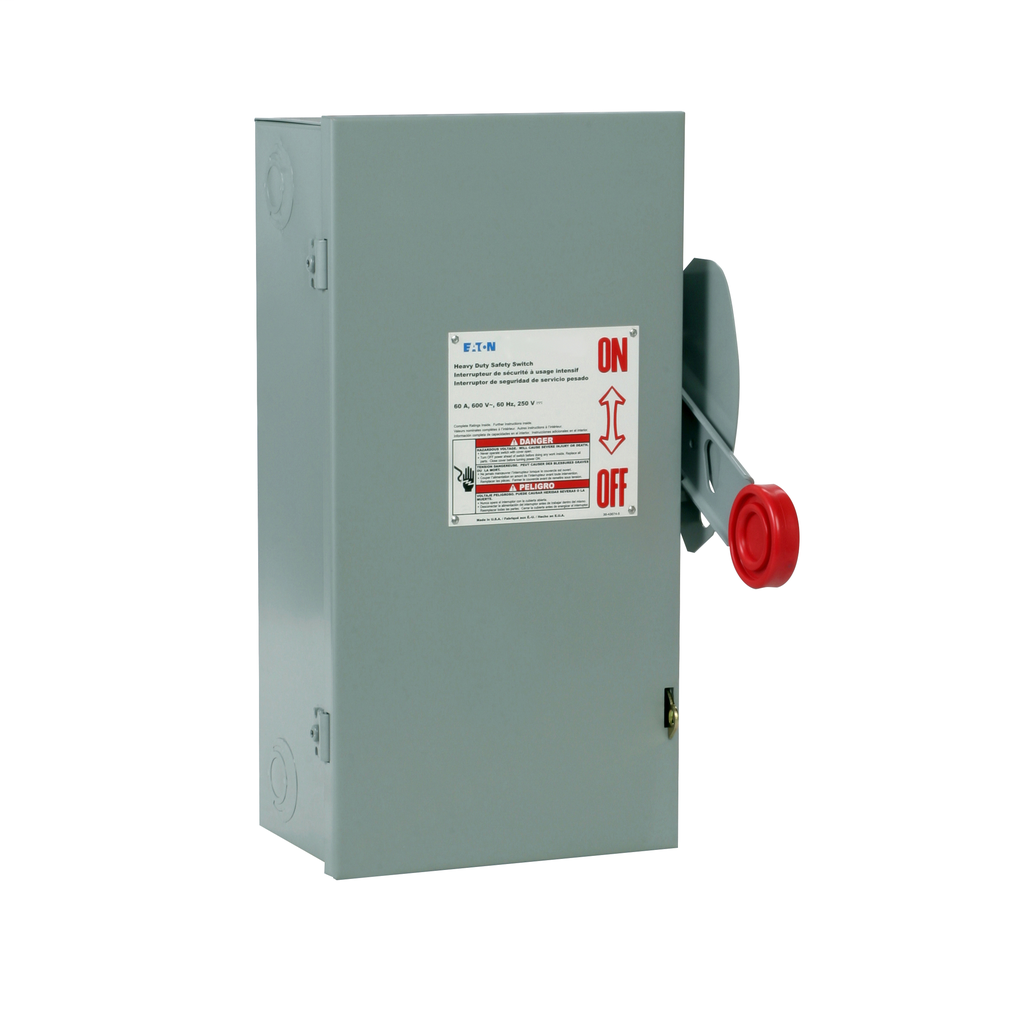

Cutler-Hammer DH362UGK Safety Switch 60A 600V Three-Pole Single-Throw Painted Steel
This Eaton heavy duty single-throw non-fused safety switch by Cutler-Hammer is engineered for optimal performance in demanding environments, particularly suited for service entrance applications when equipped with an appropriate neutral or ground lug kit. Designed with a robust painted steel enclosure, it ensures durability and resistance against daily wear and tear. The three-pole configuration and a maximum voltage rating of 600V make it versatile enough to handle a range of electrical loads, accommodating up to 60 amps with various horsepower ratings depending on the phase and voltage conditions. This switch's thoughtful design combines safety and efficiency, providing essential control in electrical installations.
- UL Listed for safety and compliance assurance
- Non-fusible switch for safe circuit isolation
- Rated to 600V for high-voltage applications
- 60 amp capacity for substantial current control
- Three-pole configuration for versatile electrical load handling
- Single-throw switch type for straightforward operation
- Painted steel enclosure for durability and wear resistance
- NEMA 1 enclosure suitable for indoor use
- Heavy duty design for demanding environments
- Compatible with neutral or ground lug kits for service entrance use
- Voltage: 600V
- Amperage: 60A
- Max Hp Rating: 10 at 240 Vac TD 1 Ph, 20 at 480 Vac TD 1 Ph, 25 at 600 Vac TD 1 Ph, 20 at 240 Vac TD 3 Ph, 50 at 480 Vac TD 3 Ph, 60 at 600 Vac TD 3 Ph, 10 at 250 Vdc
- Type: Single-throw
- Number Of Poles: Three-pole
- Number Of Wires: Three-wire
- Height: 8.31 in
- Length: 16.5 in
- Width: 9.12 in
- Weight: 15 lb
- Enclosure: NEMA 1
- Enclosure Material: Painted steel
- Fuse Configuration: Non-fusible
- Compliance: UL Listed
