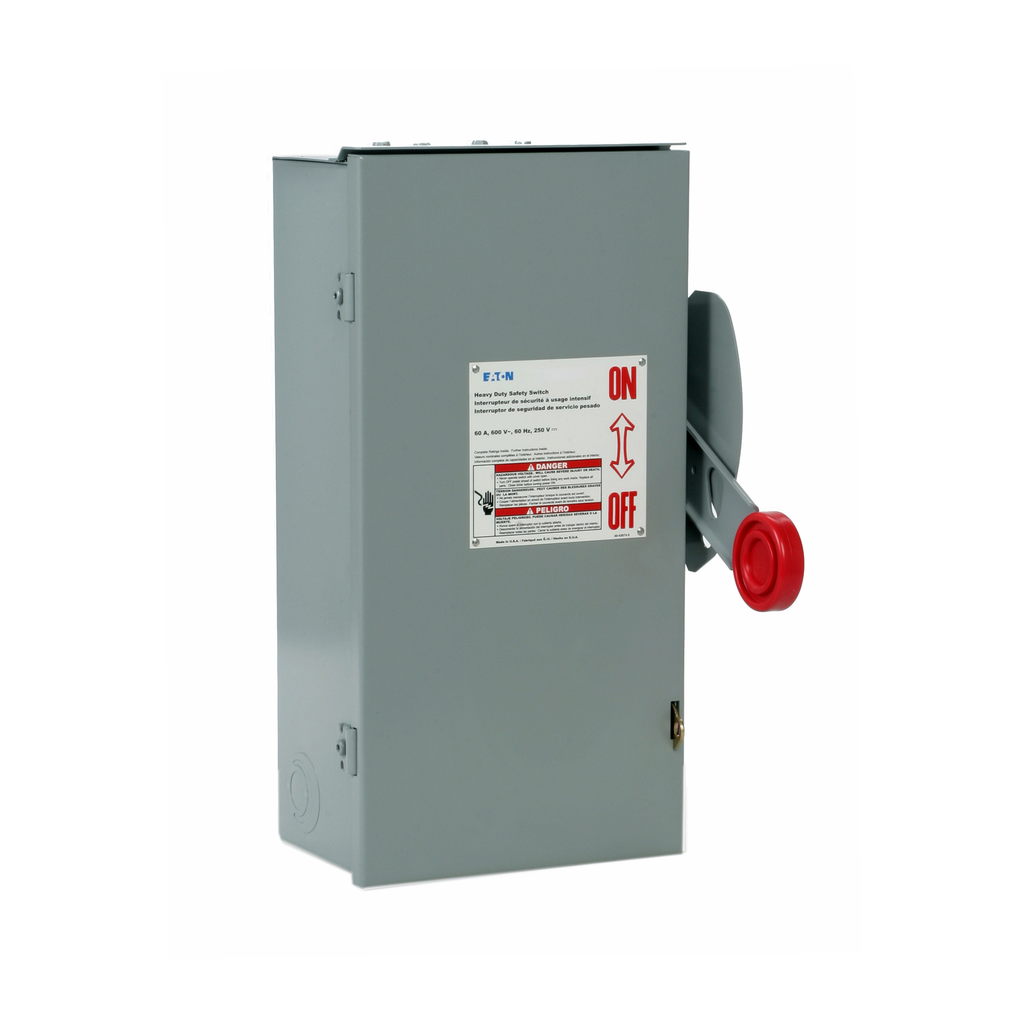

Cutler-Hammer DH362NRK Heavy Duty Fusible Safety Switch 60A 600V 3-Pole Fusible With Neutral NEMA 3R Painted Galvanized Steel
This heavy-duty fused safety switch from Cutler-Hammer is engineered for dependable protection and control in industrial applications. Featuring a robust fusible configuration with a neutral and designed to accommodate a variety of motor horsepower ratings up to 50 hp, it efficiently meets the demands of modern electrical systems. The three-pole design and a NEMA 3R enclosure made from painted galvanized steel ensure durability and suitability for outdoor or wet environments, enhancing both safety and longevity. With an amperage rating of 60A and a voltage capability of up to 600V, this switch provides reliable performance across various operational settings, making it an essential component for effective electrical management.
- Heavy-duty fusible safety switch for industrial protection
- Fusible with neutral for enhanced electrical safety
- Three-pole design for multi-phase electrical systems
- NEMA 3R enclosure suitable for outdoor and wet environments
- Durable painted galvanized steel enclosure for corrosion resistance
- 60A amperage rating for reliable current handling
- 600V voltage rating for versatile industrial use
- Supports motor horsepower ratings up to 50 hp
- Class H fuse provision for high interrupting capacity
- Four-wire configuration for neutral and ground connections
- Amperage: 60A
- Voltage: 600V
- Max Hp Rating: 20, 25/30, 50 hp (1/3 PH @480, 600 V)
- Number of Poles: Three-pole
- Number of Wires: Four-wire
- Fuse Configuration: Fusible with neutral
- Fuse Class Provision: Class H
- Height: 8.25 in.
- Length: 16.5 in.
- Width: 9.25 in.
- Weight: 20 lb
- Enclosure: NEMA 3R
- Material: Painted galvanized steel
- Type: Heavy duty fusible safety switch
