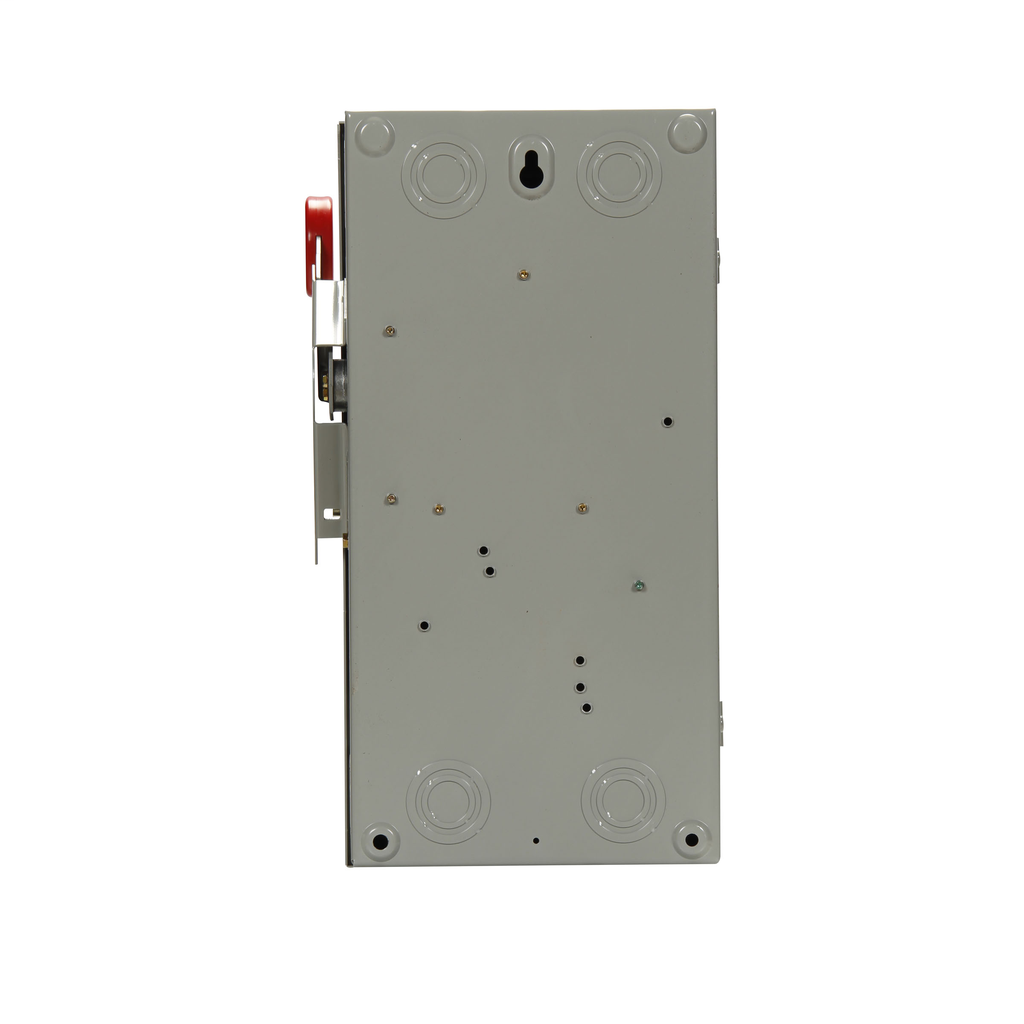

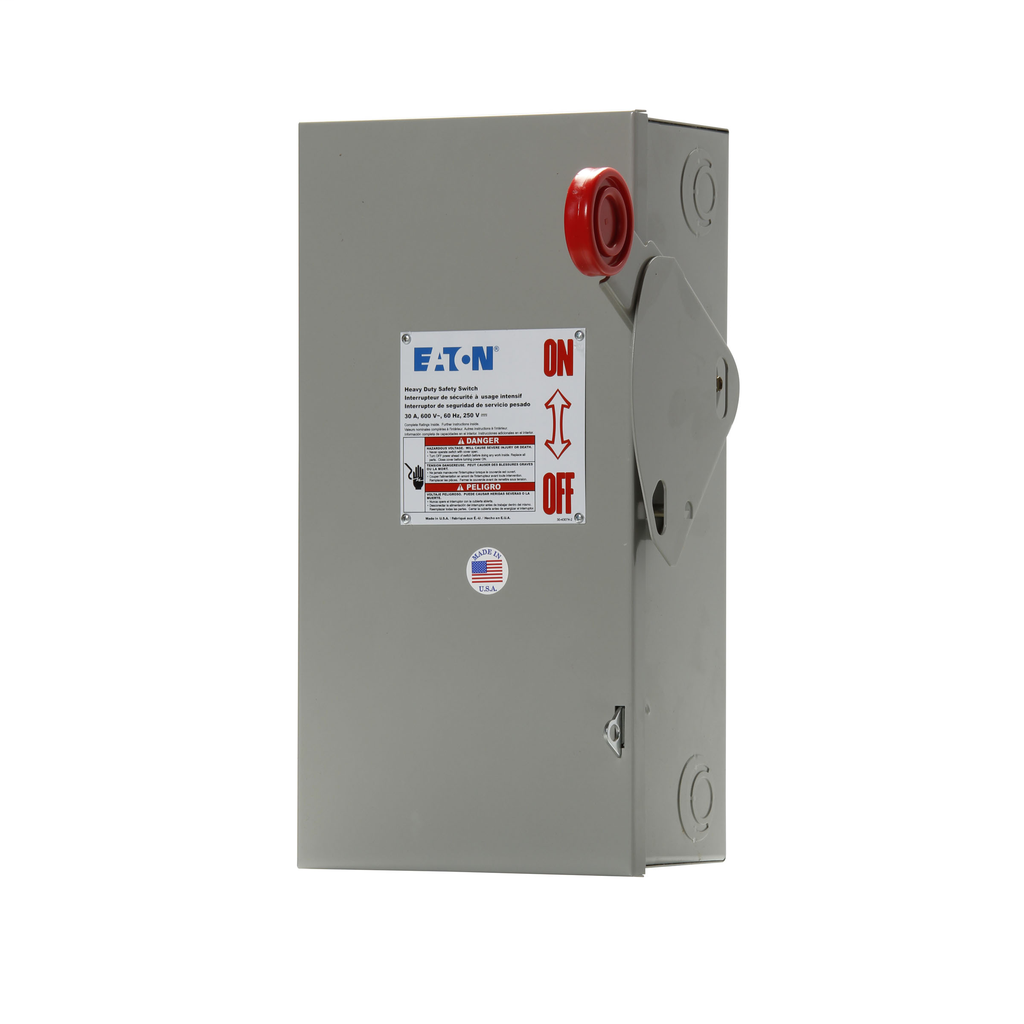

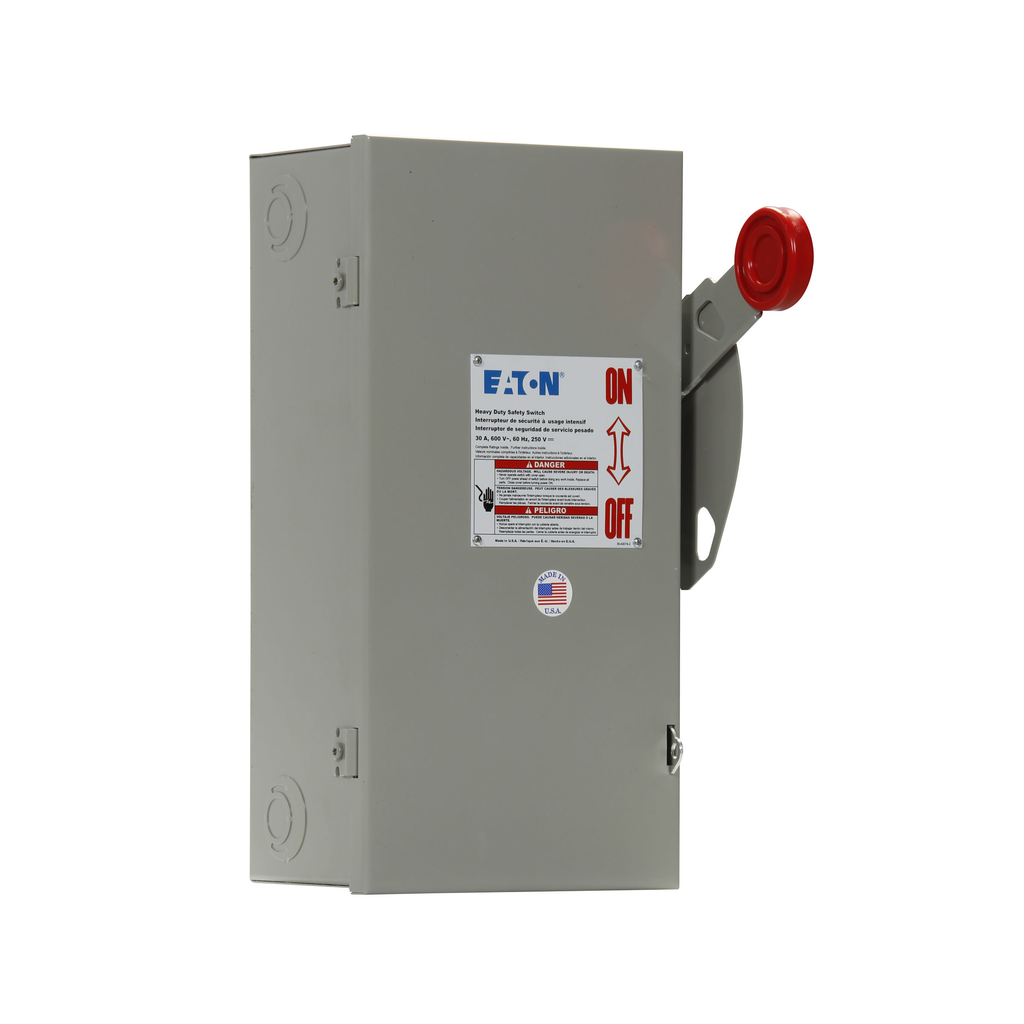

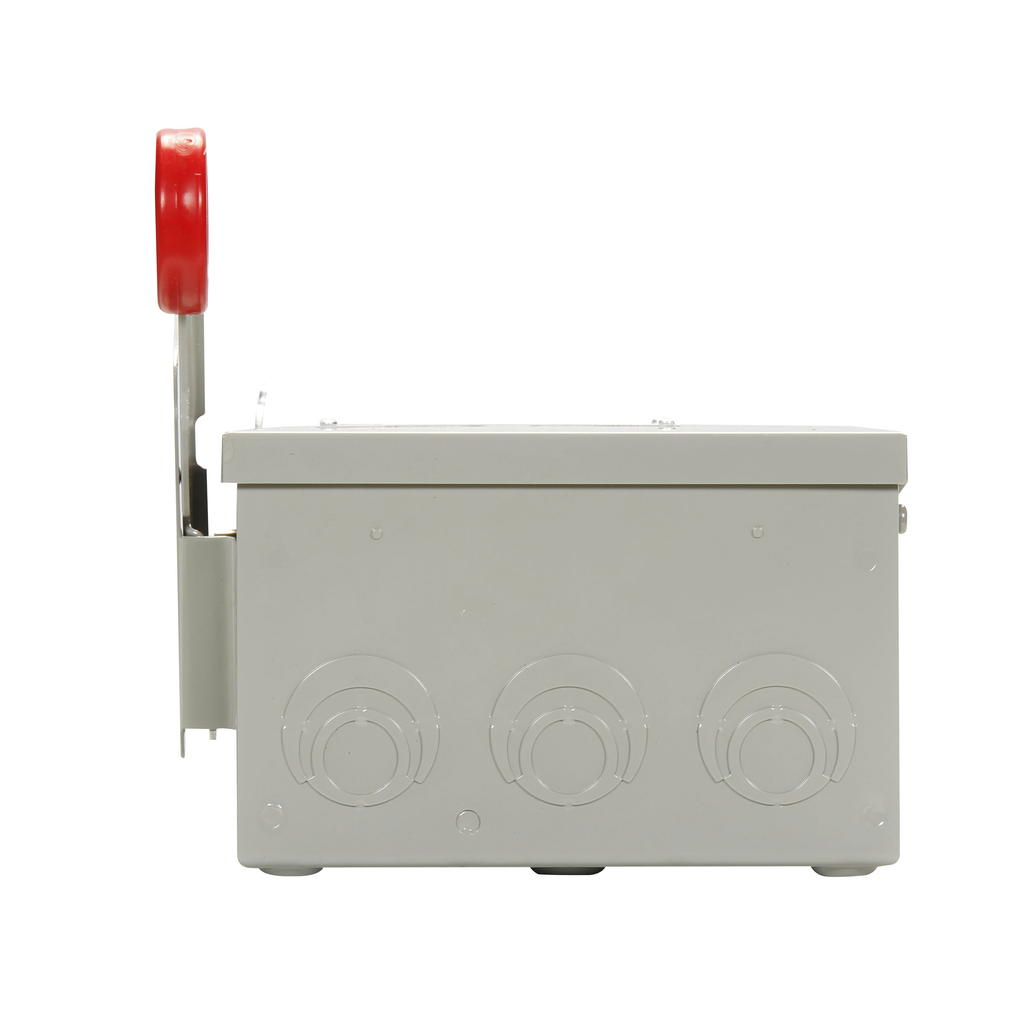

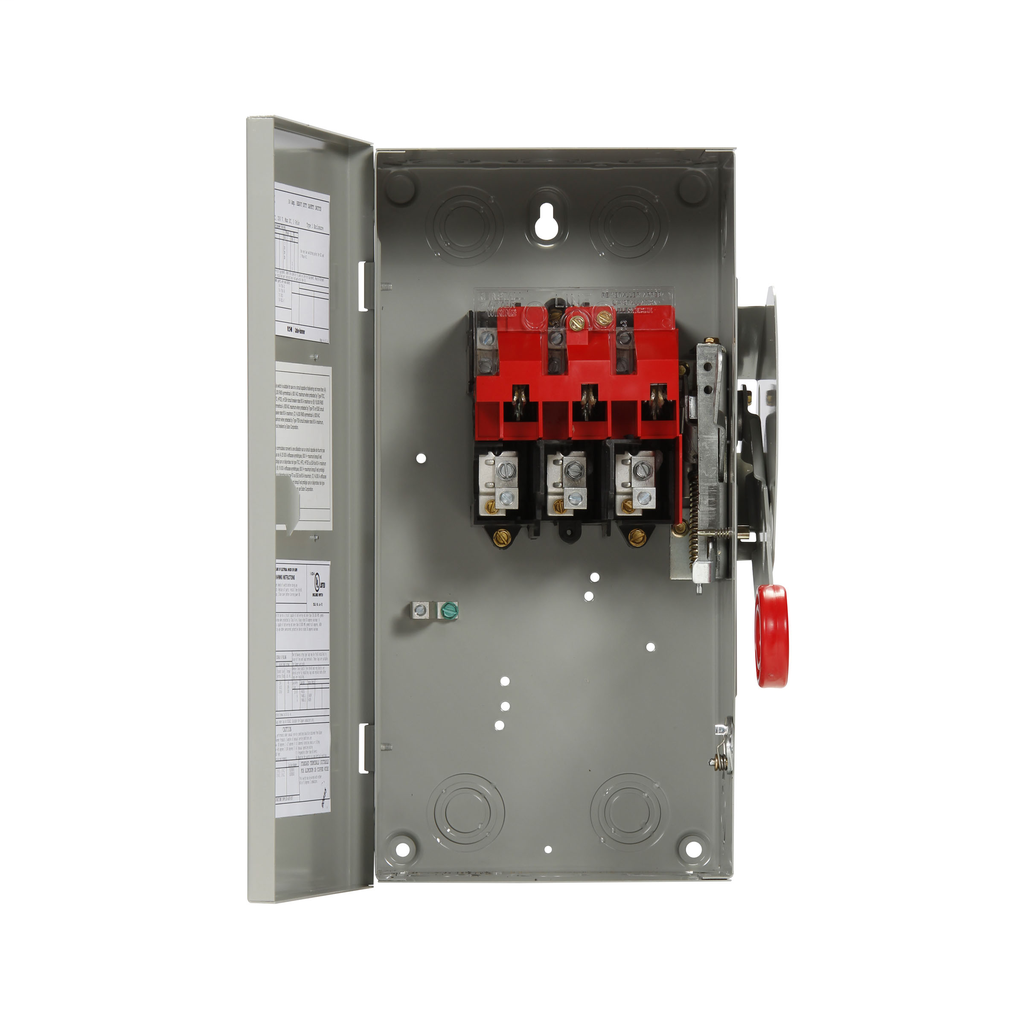

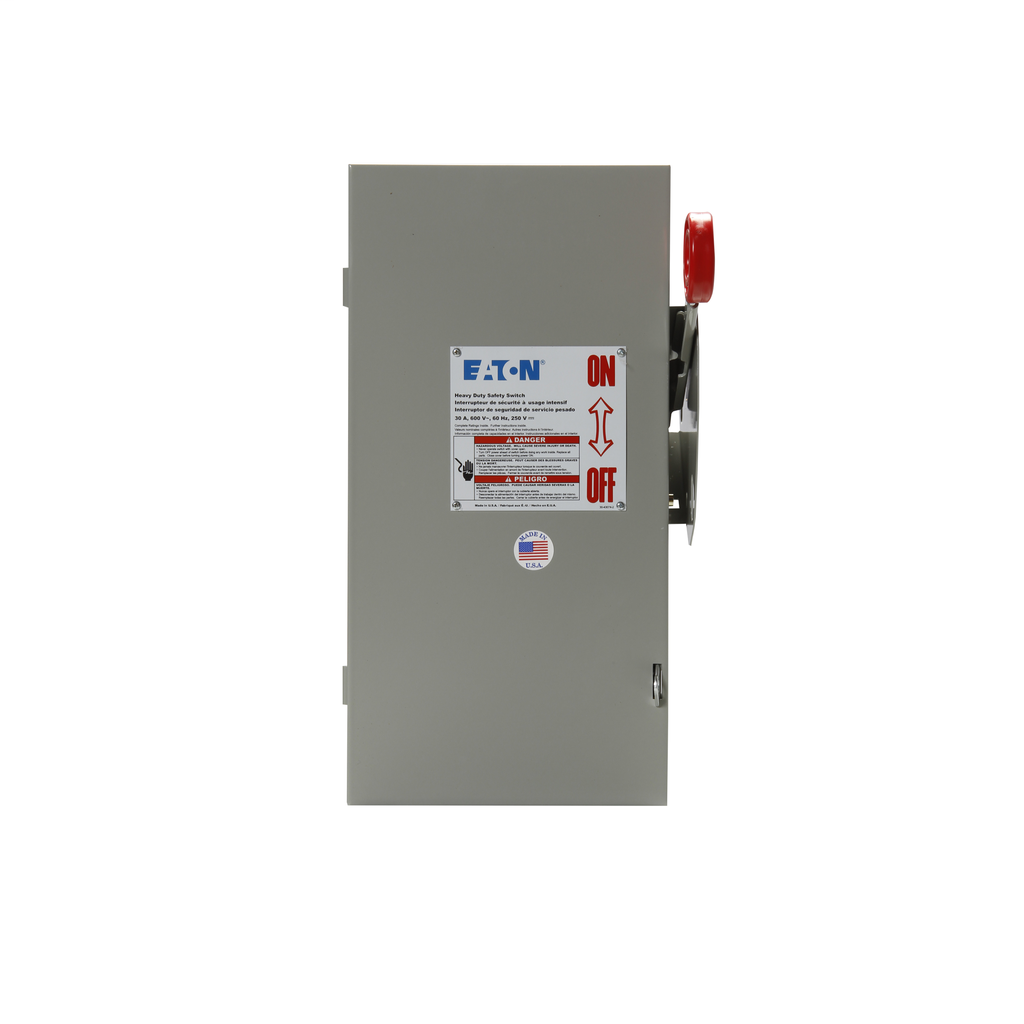

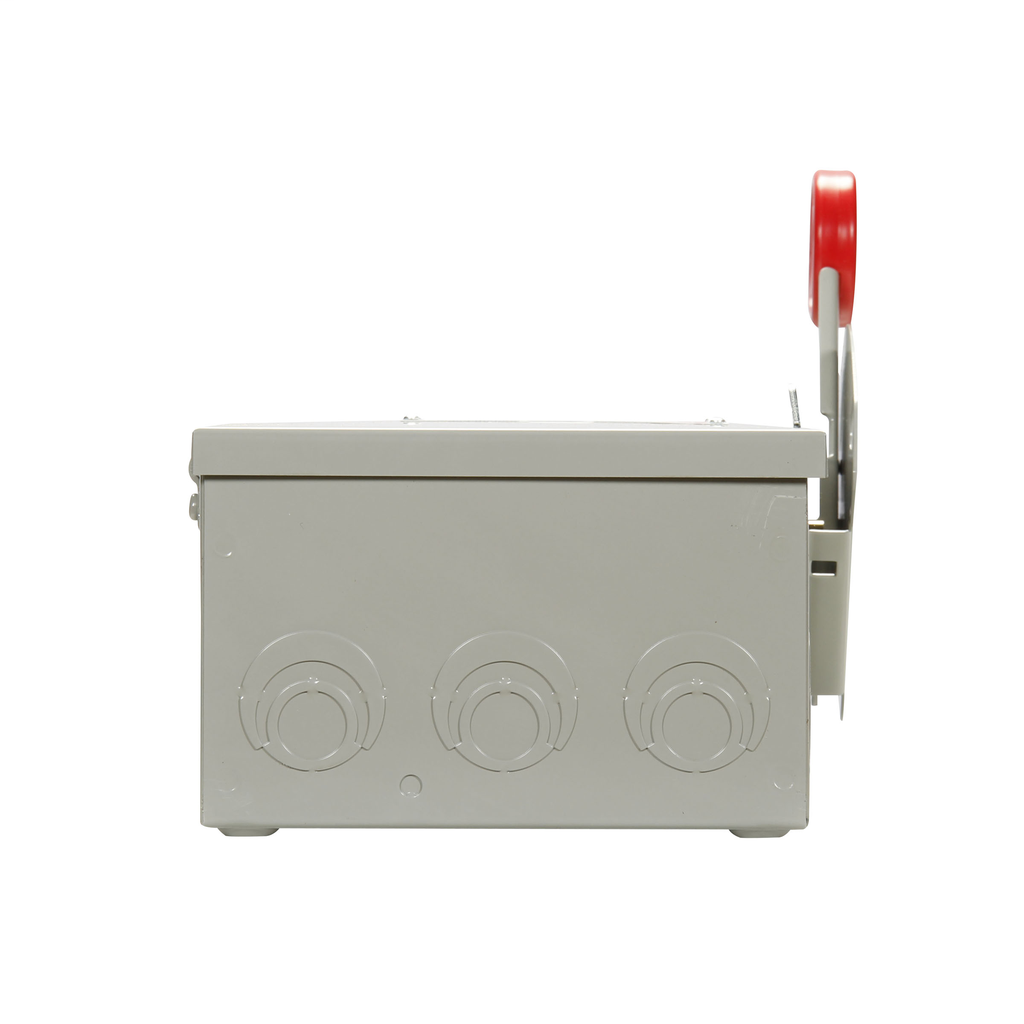

Cutler-Hammer DH361UGK Safety Switch Non-Fusible Three-Pole 30A 600V NEMA 1 Painted Steel
Engineered for reliable operation in demanding environments, the Eaton heavy duty single-throw non-fused safety switch from Cutler-Hammer offers a robust solution for managing electrical power. With a three-pole configuration and a substantial amperage rating of 30A, it efficiently supports various applications while providing a maximum horsepower rating for both single-phase and three-phase systems. Its NEMA 1 painted steel enclosure ensures protection within indoor settings, making it well-suited for service entrance use when paired with a neutral or ground lug kit. Ideal for those seeking durability and safety, this switch integrates functionality with a strong build, ensuring it meets the rigorous needs of modern electrical systems.
- Heavy-duty design for demanding electrical environments
- 30A amperage rating for substantial current handling
- Non-fusible switch for reliable power management
- NEMA 1 painted steel enclosure providing indoor protection
- Supports high horsepower loads for single and three-phase systems
- Three-pole configuration supporting versatile applications
- Single-throw mechanism for straightforward operation
- Suitable for service entrance use with neutral or ground lug kit
- Amperage Rating: 30A
- Voltage Rating: 600V
- Max Horsepower Rating: 7.5 at 480 Vac TD 1 Ph, 10 at 600 Vac TD 1 Ph, 10 at 240 Vac TD 3 Ph, 20 at 480 Vac TD 3 Ph, 30 at 600 Vac TD 3 Ph, 5 at 250 Vdc
- Fuse Configuration: Non-fusible
- Number of Poles: Three-pole
- Number of Wires: Three-wire
- Type: Single-throw
- Length: 16.5 in.
- Width: 9.12 in.
- Height: 8.31 in.
- Weight: 16 lb
- Enclosure: NEMA 1
- Enclosure Material: Painted steel
- Notes: Suitable for service entrance use with neutral or ground lug kit
