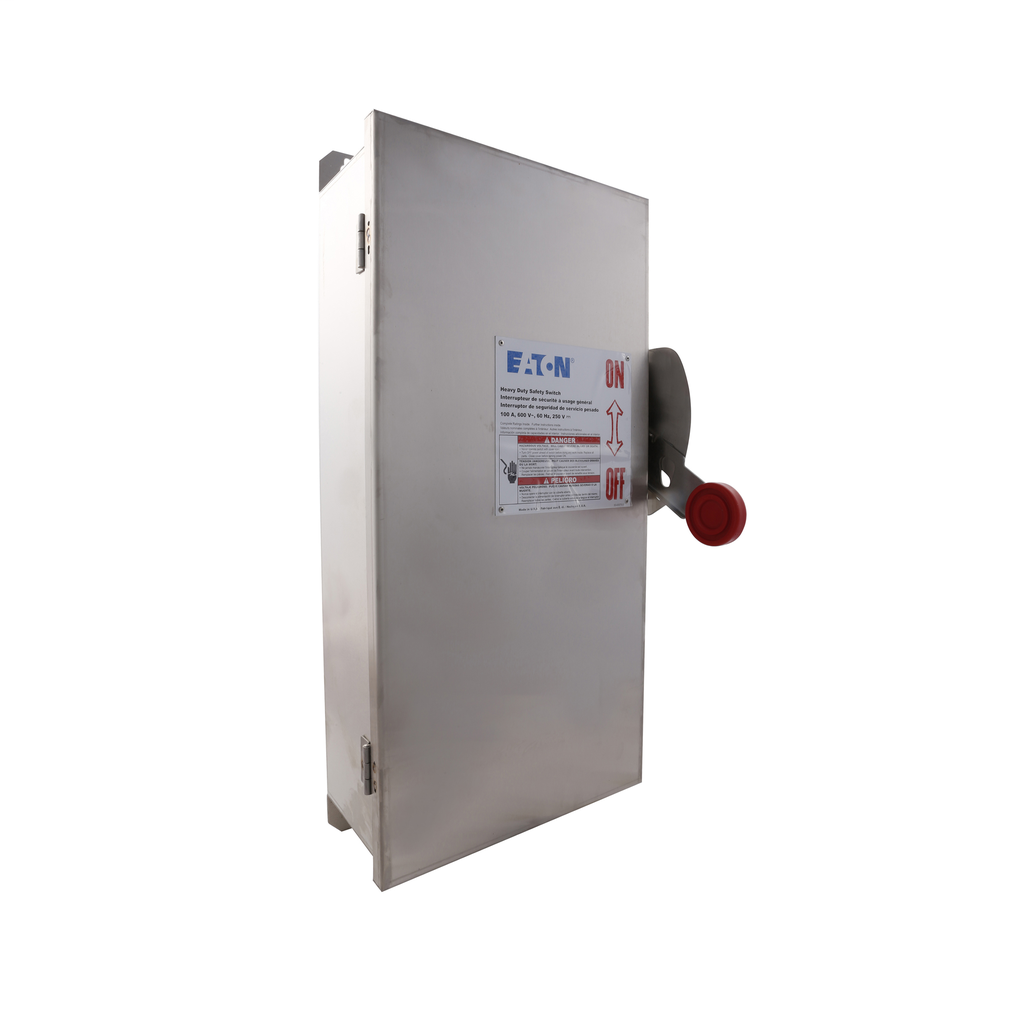

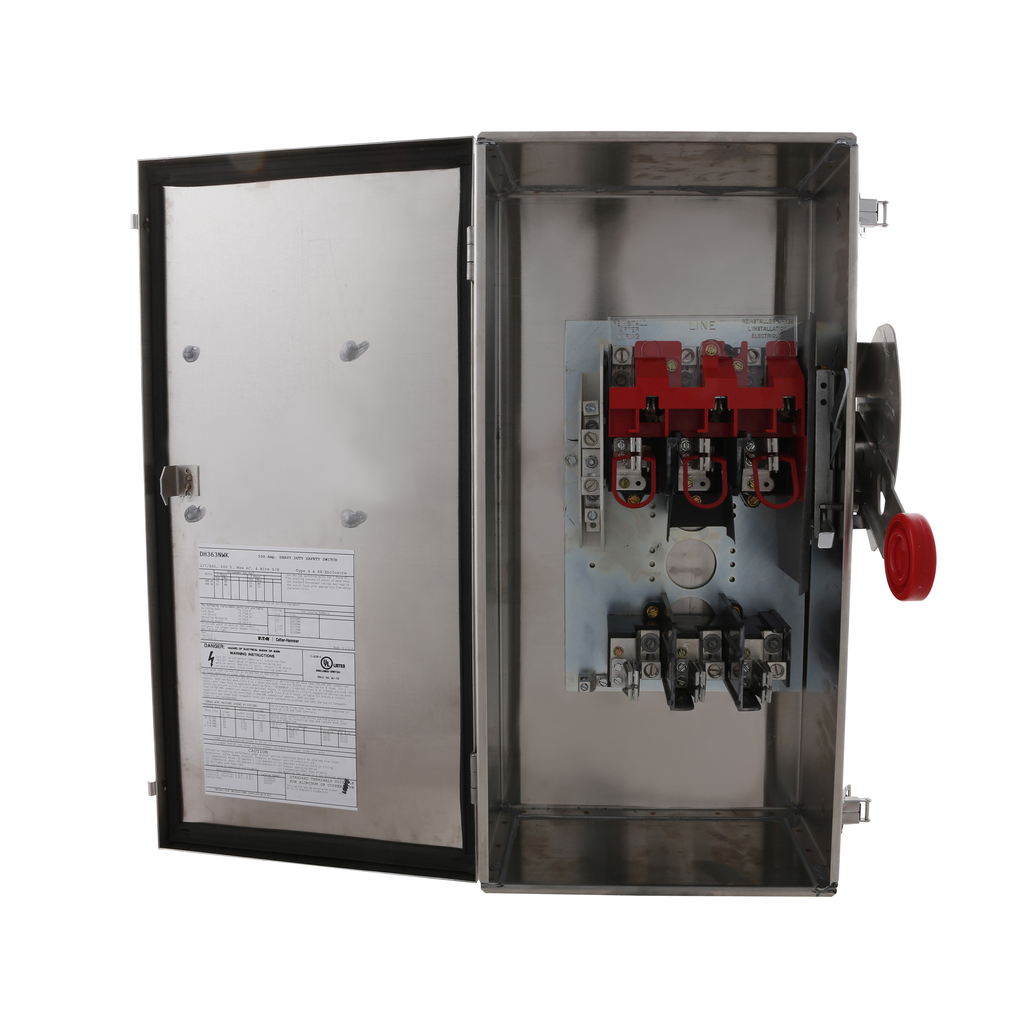

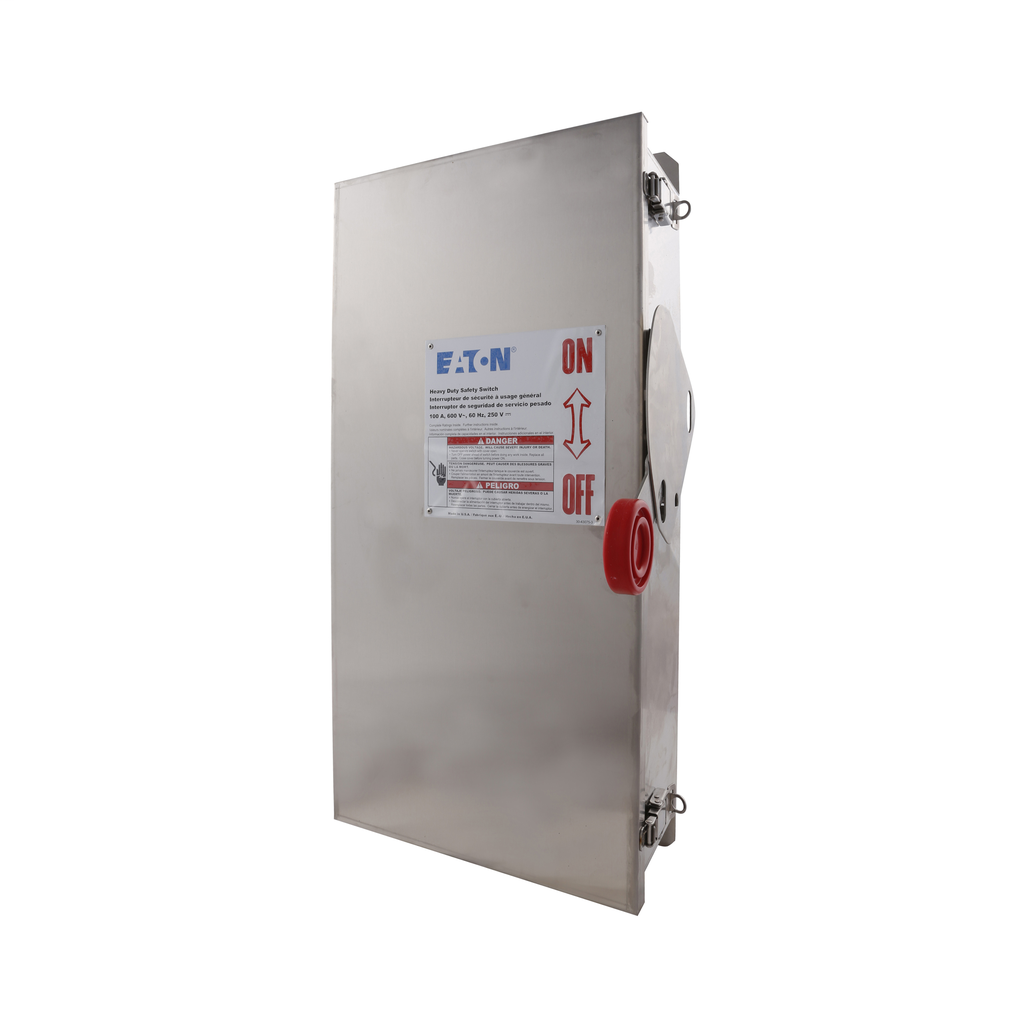

Cutler-Hammer DH323NWK Heavy Duty Fusible Safety Switch 100A 240V Three-pole Fusible with Neutral Class H 304 Stainless Steel NEMA 4X
Engineered for robust performance, this enhanced visible blade single-throw fused safety switch exemplifies heavy-duty reliability. With a 100A amperage rating and a versatile fuse configuration that includes a neutral, it accommodates a wide range of applications, handling up to 30 horsepower in three-phase systems. Constructed from corrosion-resistant 304 stainless steel, the enclosure is designed to meet NEMA 4X standards, ensuring durability in challenging environments. This safety switch is particularly suited for industrial settings, providing not only safety features but also necessary protection for your electrical systems.
- UL Listed for safety and compliance assurance
- Fusible design with neutral for enhanced protection
- Class H fuse provision for high interrupting capacity
- 100A amperage rating for high current capacity
- Three-pole design for three-phase systems
- Supports up to 30 horsepower in three-phase applications
- Heavy-duty construction for industrial reliability
- Corrosion-resistant 304 stainless steel enclosure
- NEMA 4X rated for protection against harsh environments
- Enhanced visible blade for clear operation status
- Amperage: 100A
- Voltage: 240V
- Max Hp Rating: 7.5, 15/15, 30/20 hp (1,3PH @Std/TD/250 Vdc)
- Number of Poles: Three-pole
- Number of Wires: Four-wire
- Wire Size: #14-1/0 AWG Cu/Al
- Type: Heavy duty fusible safety switch
- Height: 9 in
- Length: 25.5 in
- Width: 13.25 in
- Weight: 30 lb
- Material: 304 stainless steel
- Enclosure: NEMA 4X
- Fuse Class Provision: Class H
- Fuse Configuration: Fusible with neutral
- Special Features: Corrosion resistant
- Compliance: UL Listed
