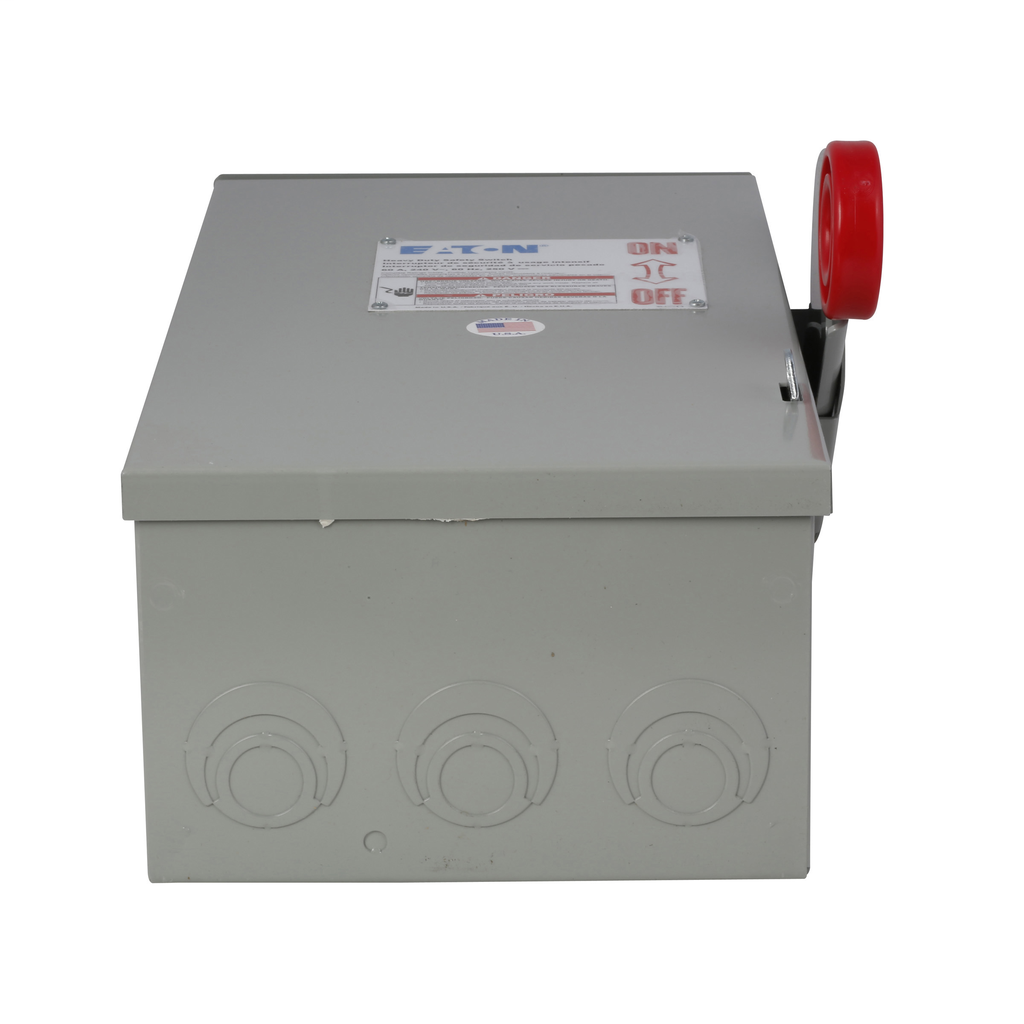

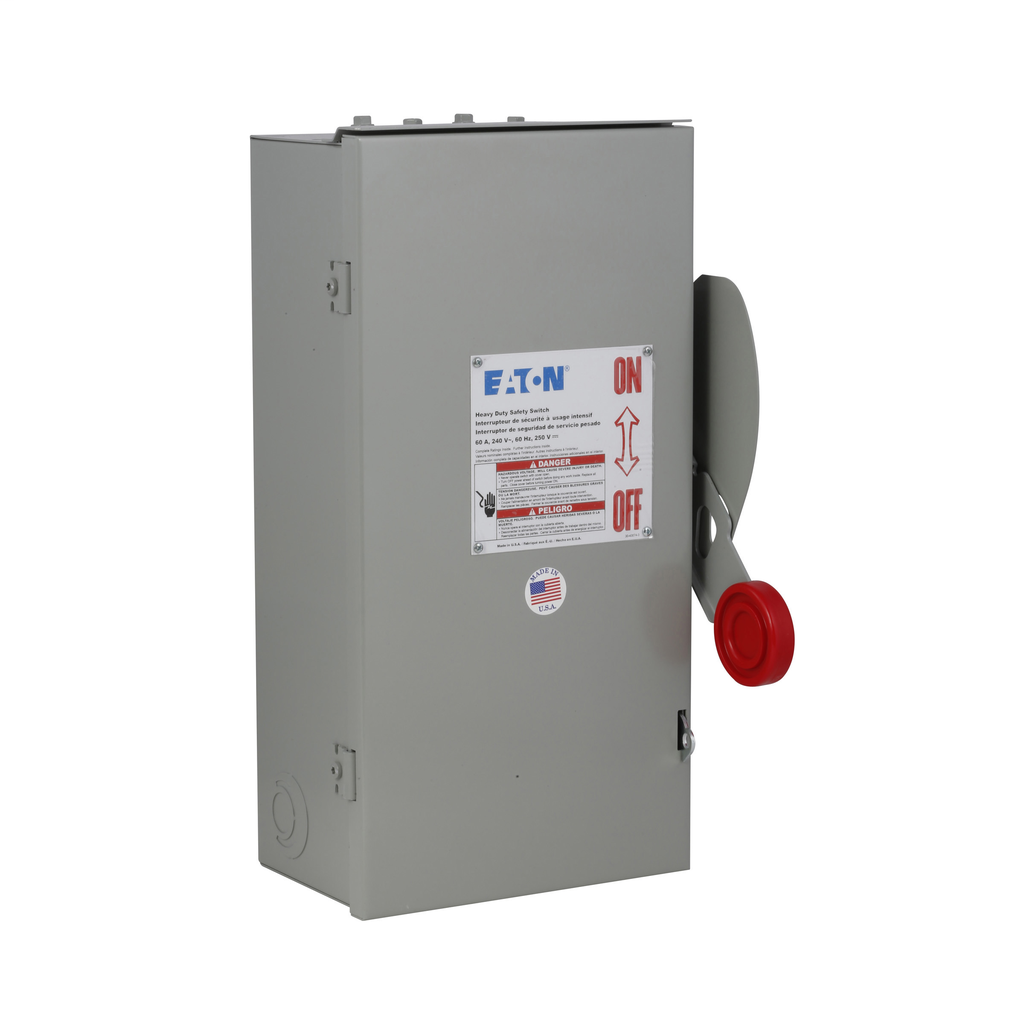

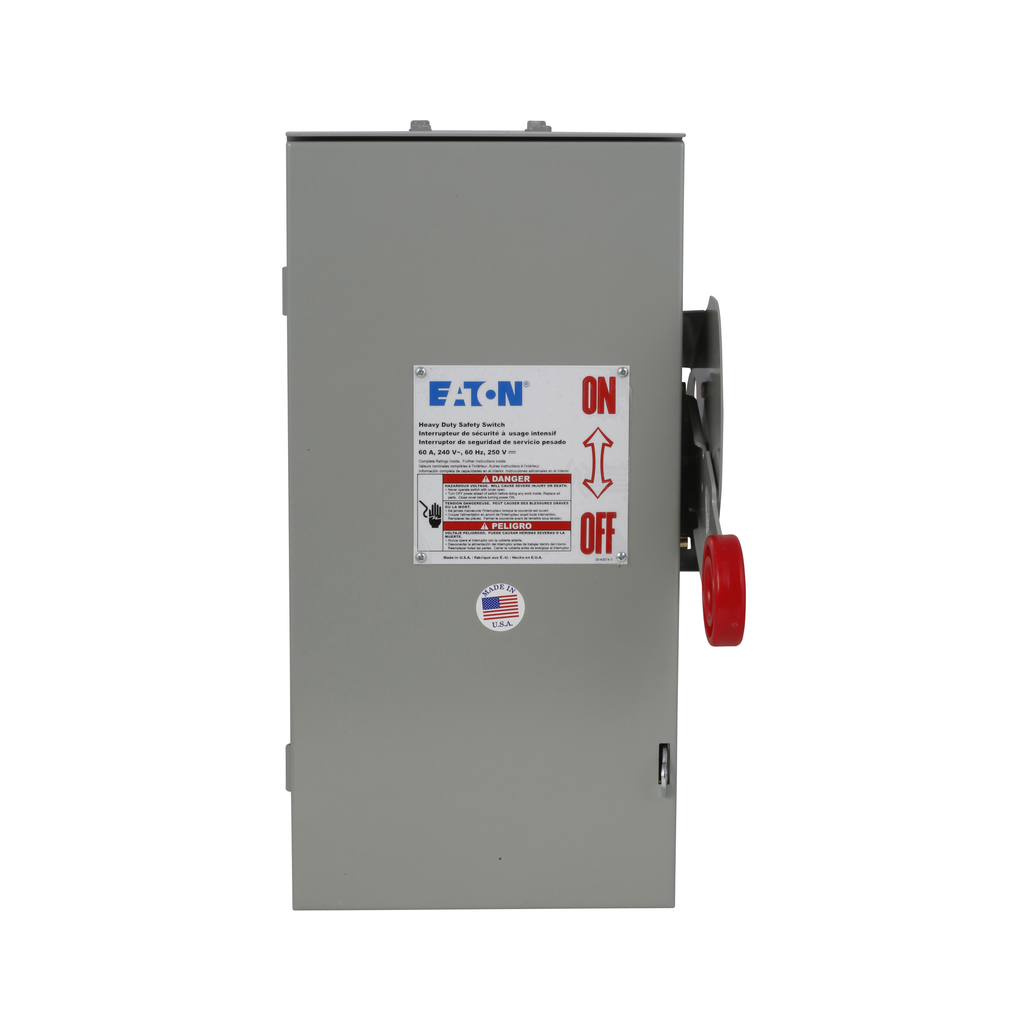

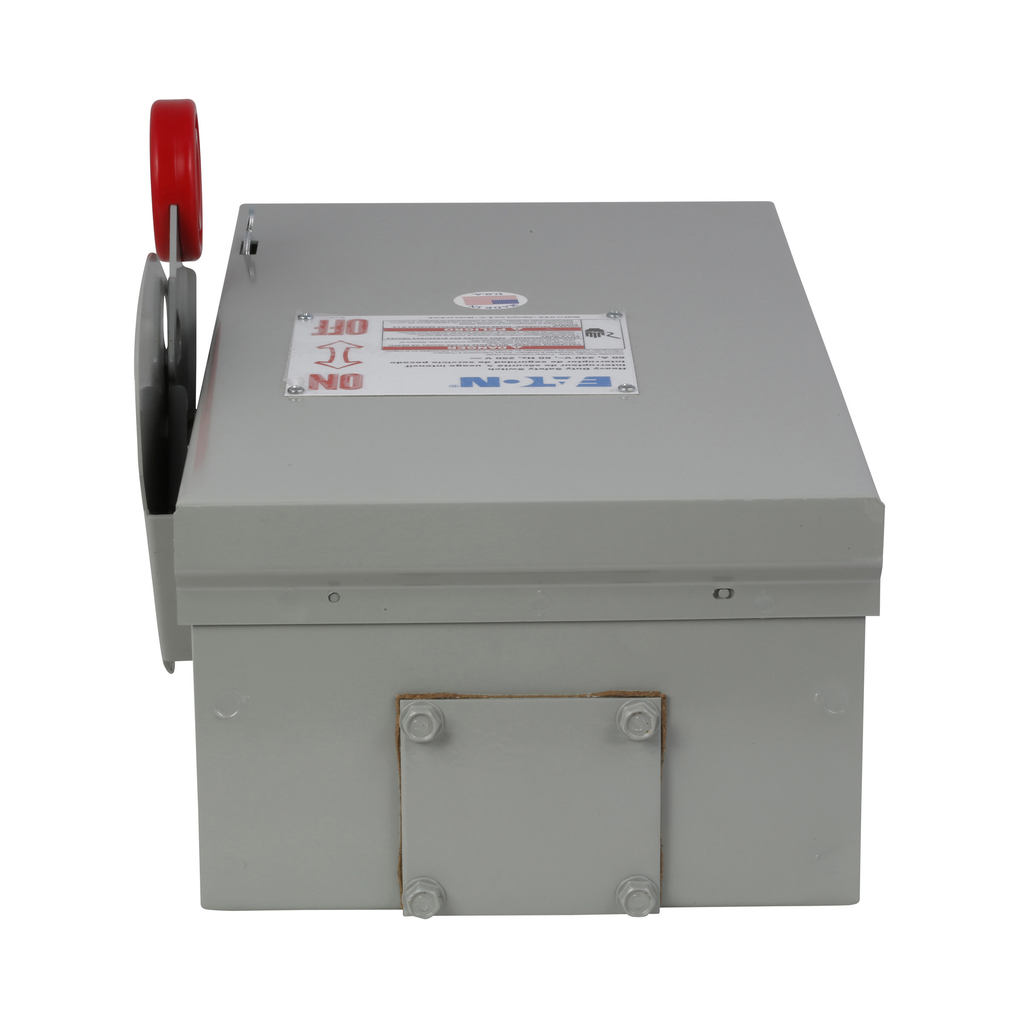

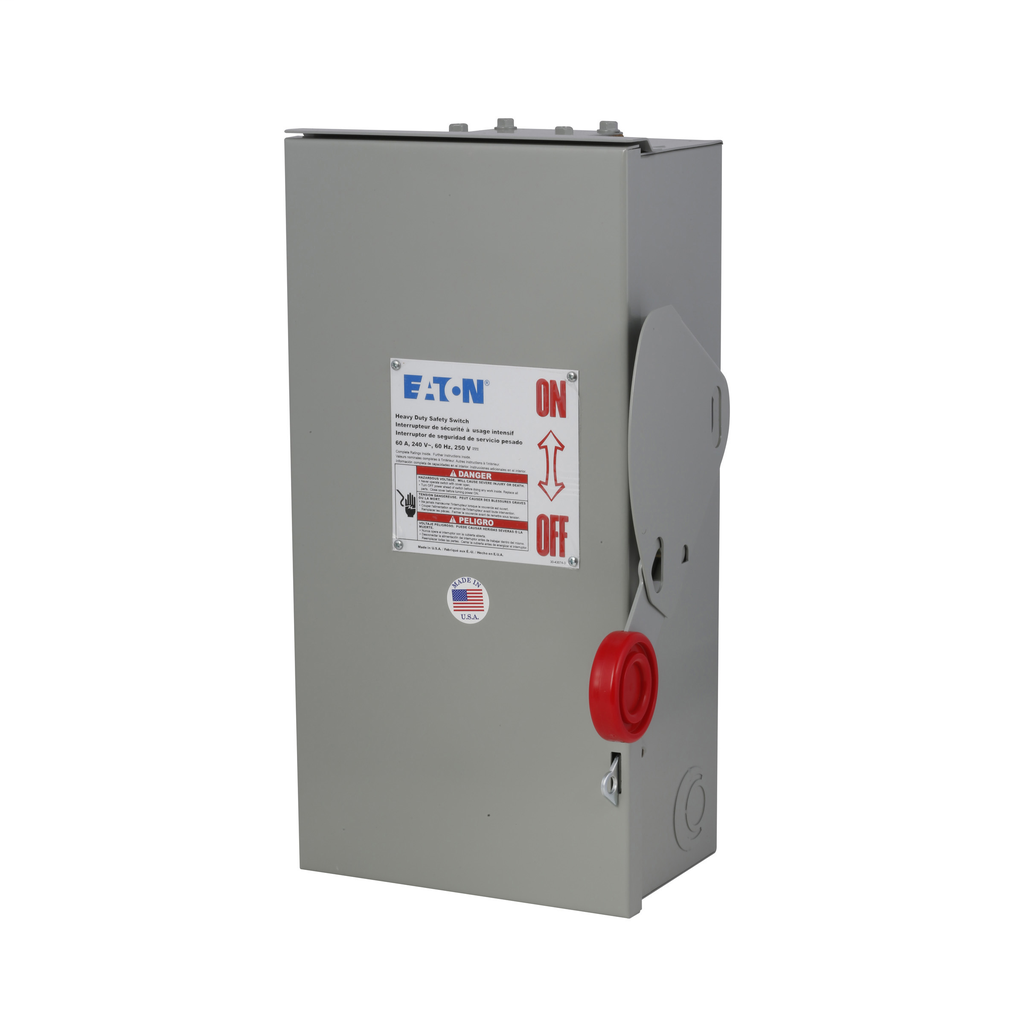

Cutler-Hammer DH322NRK Heavy Duty Fusible Safety Switch 3-Pole 60A 240V Fusible with neutral Painted galvanized steel
Engineered for heavy-duty applications, the Eaton enhanced visible blade single-throw fused safety switch from Cutler-Hammer combines robust performance with user-friendly features. This reliable three-pole switch is designed with a fusible configuration that includes a neutral, making it suitable for various circuits and enhancing both safety and convenience during maintenance. With a maximum horsepower rating of up to 15hp at 240V, it accommodates a wide range of wire sizes from #14 to #2 AWG for both copper and aluminum connections. The enclosure made from painted galvanized steel ensures durability and protection against environmental conditions, complying with NEMA 3R standards. With an amperage rating of 60A, it is well-suited for demanding industrial applications, providing peace of mind with its effective fuse class provision and visible blade operation, which allows for clear indication of the switch position.
- Fusible safety switch for enhanced overload protection
- Three-pole design with neutral for improved circuit safety
- 60A amperage rating for heavy-duty industrial applications
- Visible blade operation for clear switch position indication
- Painted galvanized steel enclosure resists corrosion
- NEMA 3R rated enclosure protects against rain and dust
- Class H fuse provision ensures effective fuse protection
- Supports wire sizes from #14 to #2 AWG copper/aluminum
- Maximum horsepower rating up to 15 hp at 240V
- Four-wire configuration allows versatile wiring options
- Amperage: 60A
- Voltage: 240V
- Max Hp Rating: 3, 7.5/10, 15/10 hp (1,3PH @Std/TD/250 Vdc)
- Height: 16.27 in
- Length: 16.5 in
- Width: 9.5 in
- Weight: 15 lb
- Number of Poles: Three-pole
- Number of Wires: Four-wire
- Wire Size: #14-2 AWG Cu/Al
- Fuse Configuration: Fusible with neutral
- Fuse Class: Class H
- Enclosure: NEMA 3R
- Material: Painted galvanized steel
