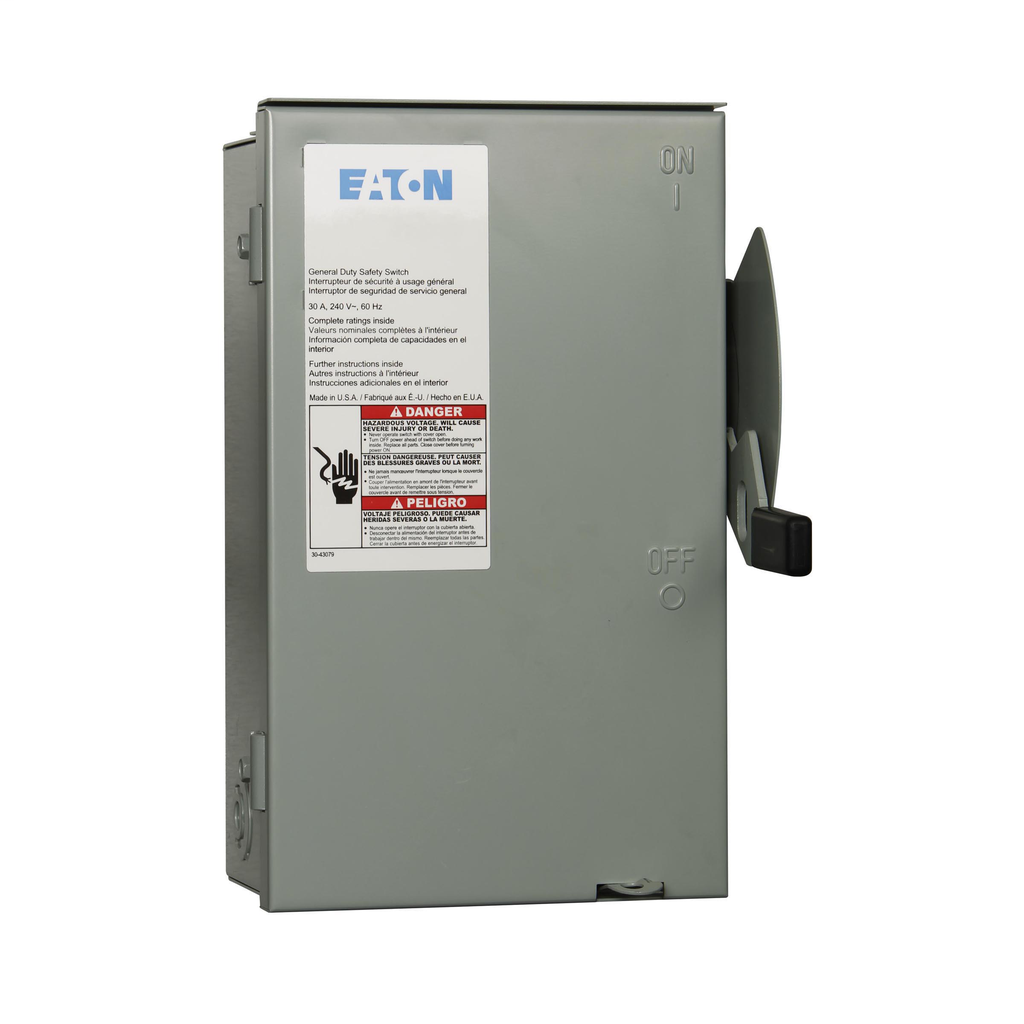

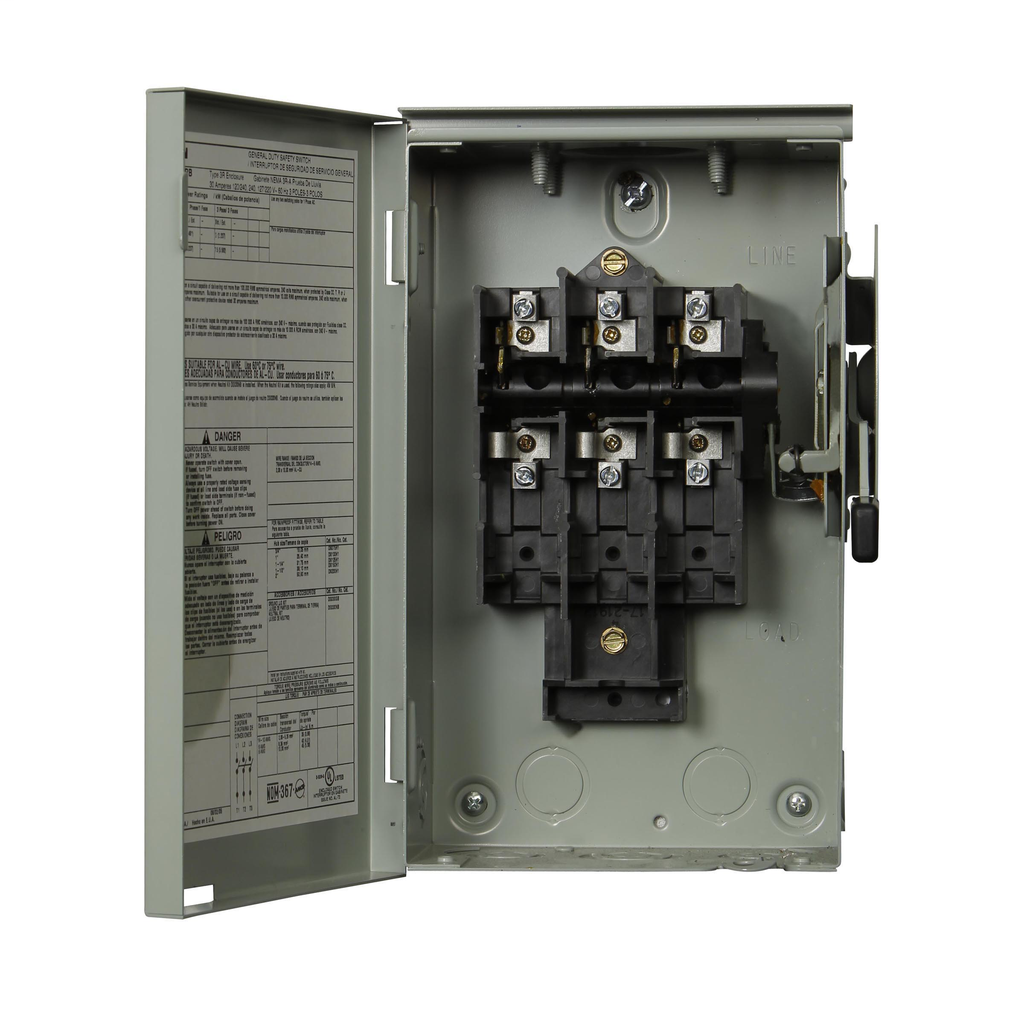

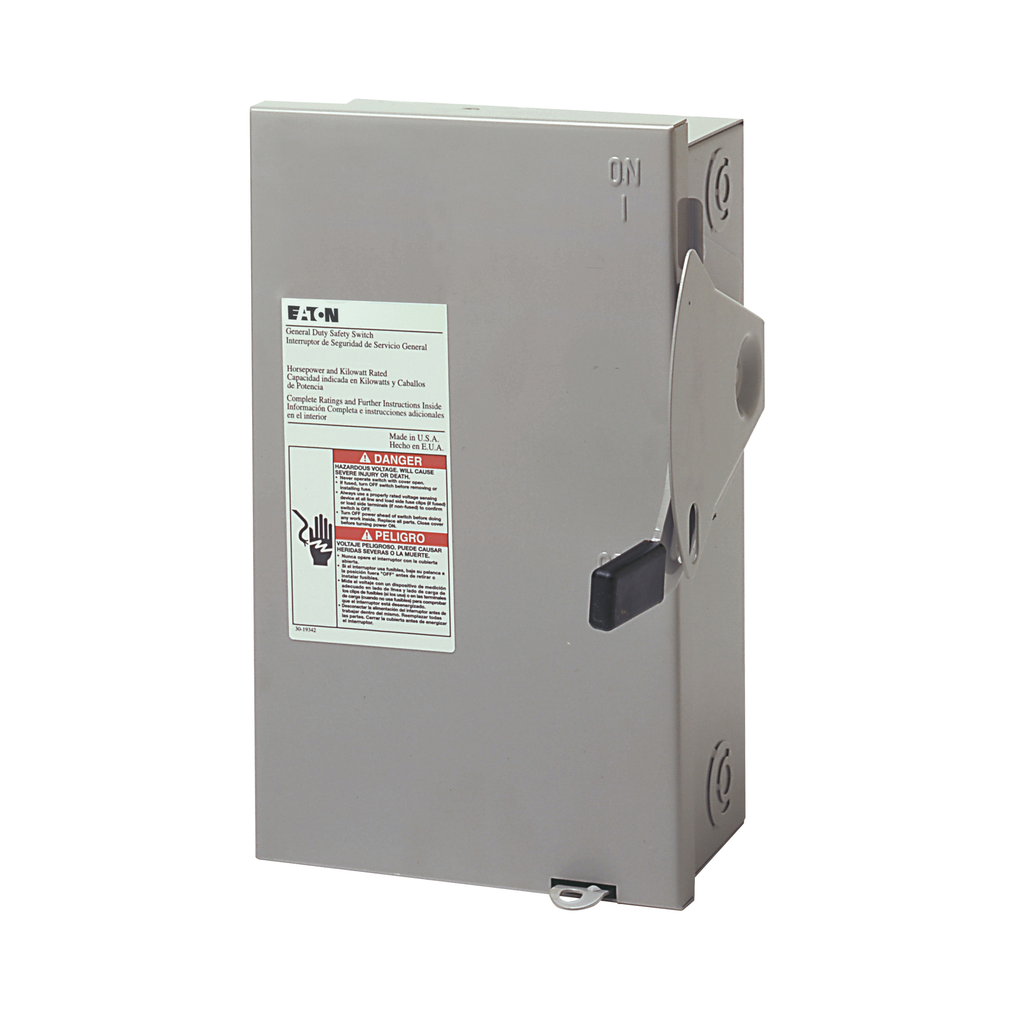

Cutler-Hammer DG321URB Safety Switch Three-pole 30A 240V NEMA 3R Painted Galvanized Steel
Eaton's general duty non-fusible safety switch is expertly designed to provide reliable operation in a variety of electrical applications, with a voltage rating of 240V and a three-pole configuration that accommodates up to 30A. Constructed with a durable painted galvanized steel enclosure, this rainproof switch meets NEMA 3R requirements, ensuring robust protection against environmental factors. Notably, it features a non-fusible design that simplifies installation and usage for safe circuit interruption. With three-wire functionality, this switch is an essential component for effective power management in demanding settings, though it should be noted that it is not approved for service entrance unless paired with a neutral kit.
- UL Listed for safety and regulatory compliance
- Non-fusible design for simplified safe circuit interruption
- NEMA 3R rainproof enclosure ensuring outdoor durability
- Painted galvanized steel enclosure for corrosion resistance
- Three-pole configuration supporting 30A current
- 240V voltage rating suitable for varied electrical applications
- Three-wire capability for reliable power management
- Not approved for service entrance without neutral kit
- Voltage: 240V
- Amperage: 30A
- Number of Poles: Three-pole
- Enclosure: NEMA 3R, Rainproof
- Number of Wires: Three-wire
- Fuse Configuration: Non-fusible
- Type: Non-fusible, single-throw
- Length: 6.88 in.
- Width: 6.38 in.
- Height: 10.81 in.
- Weight: 6 lb
- Material: Painted galvanized steel
- Compliance: UL Listed
