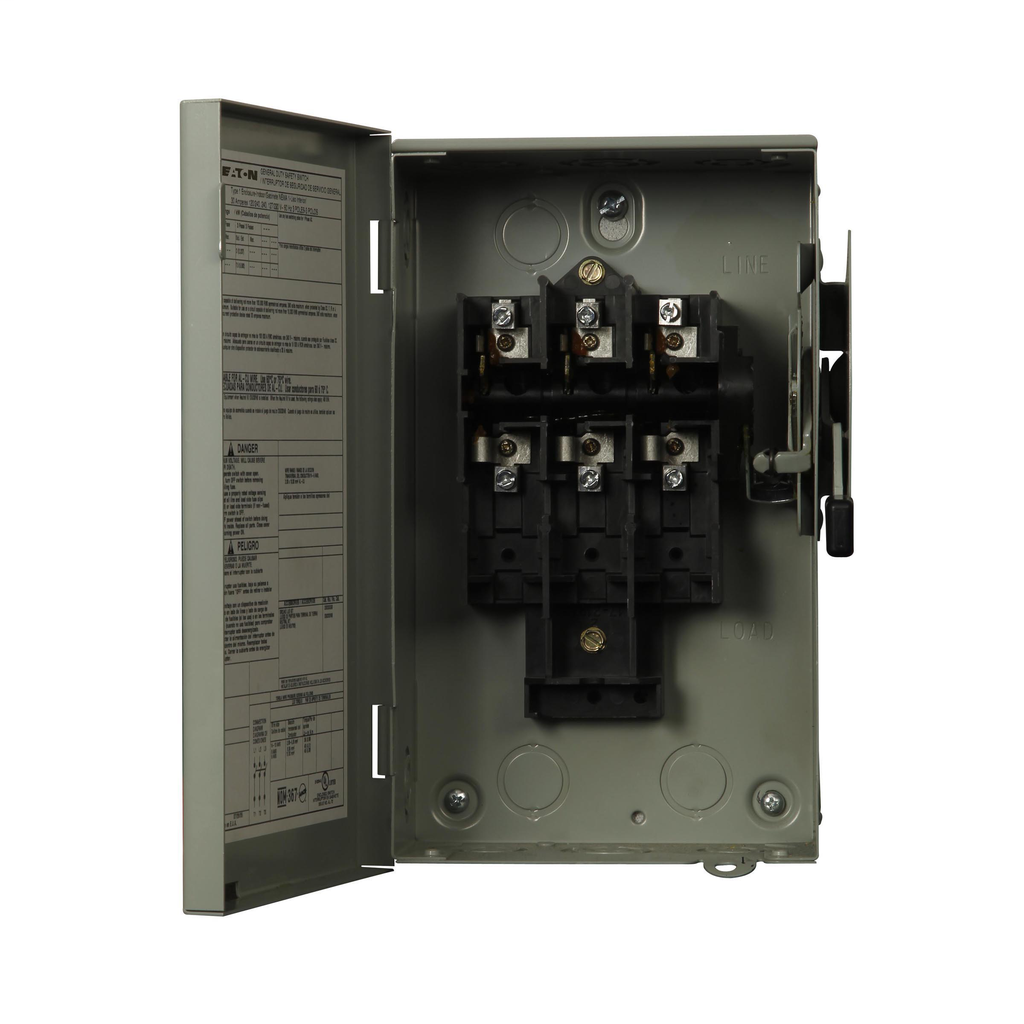

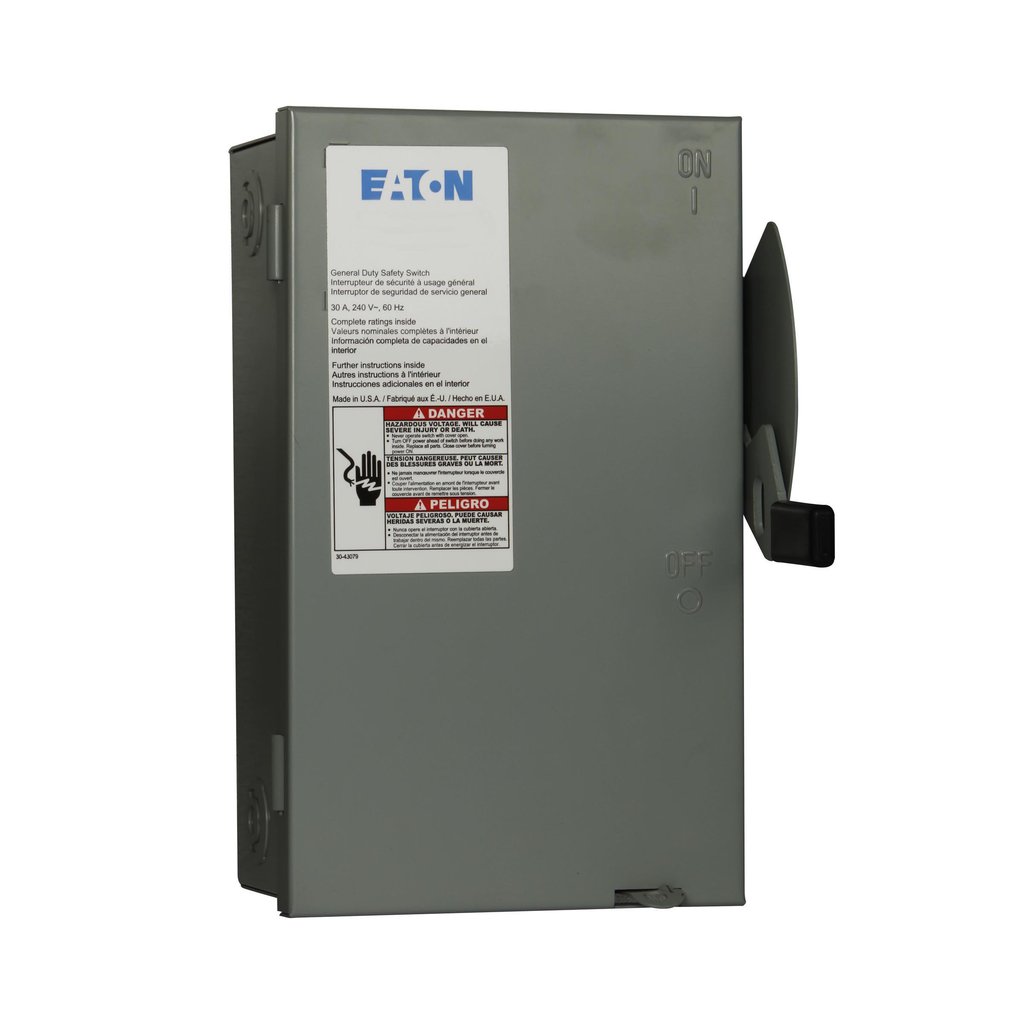

Cutler-Hammer DG321UGB General Duty Safety Switch Non-fusible Three-pole 30A 240V NEMA 1 Painted Steel
This Eaton general duty non-fusible safety switch from Cutler-Hammer is engineered for reliable performance in various electrical applications. Designed as a three-pole switch with a 30A amperage rating, it ensures safe and effective operation up to 240V. Its durable enclosure, made of painted steel, is suitable for indoor environments, providing essential protection against incidental contact. It's important to note that this switch is not approved for service entrance unless a neutral kit is installed, making it crucial for users to adhere to this guidance for optimal safety.
- UL Listed for safety and regulatory compliance
- Non-fusible design for simplified safety switching
- Single-throw switch mechanism for clear on/off control
- Three-pole configuration for multi-phase circuit control
- 30 amp rating for moderate electrical load applications
- Three-wire setup compatible with standard electrical wiring
- Painted steel enclosure offering durable indoor protection
- NEMA 1 rating suitable for indoor use environments
- Compact size facilitating installation in confined spaces
- Amperage: 30A
- Voltage: 240V
- Number of Poles: Three-pole
- Number of Wires: Three-wire
- Type: Non-fusible, single-throw
- Height: 10.69 in
- Length: 6.88 in
- Width: 6.38 in
- Weight: 6 lb
- Enclosure: NEMA 1, Indoor
- Enclosure Material: Painted steel
- Fuse Configuration: Non-fusible
- Compliance: UL Listed
- Product Category: General duty safety switch
