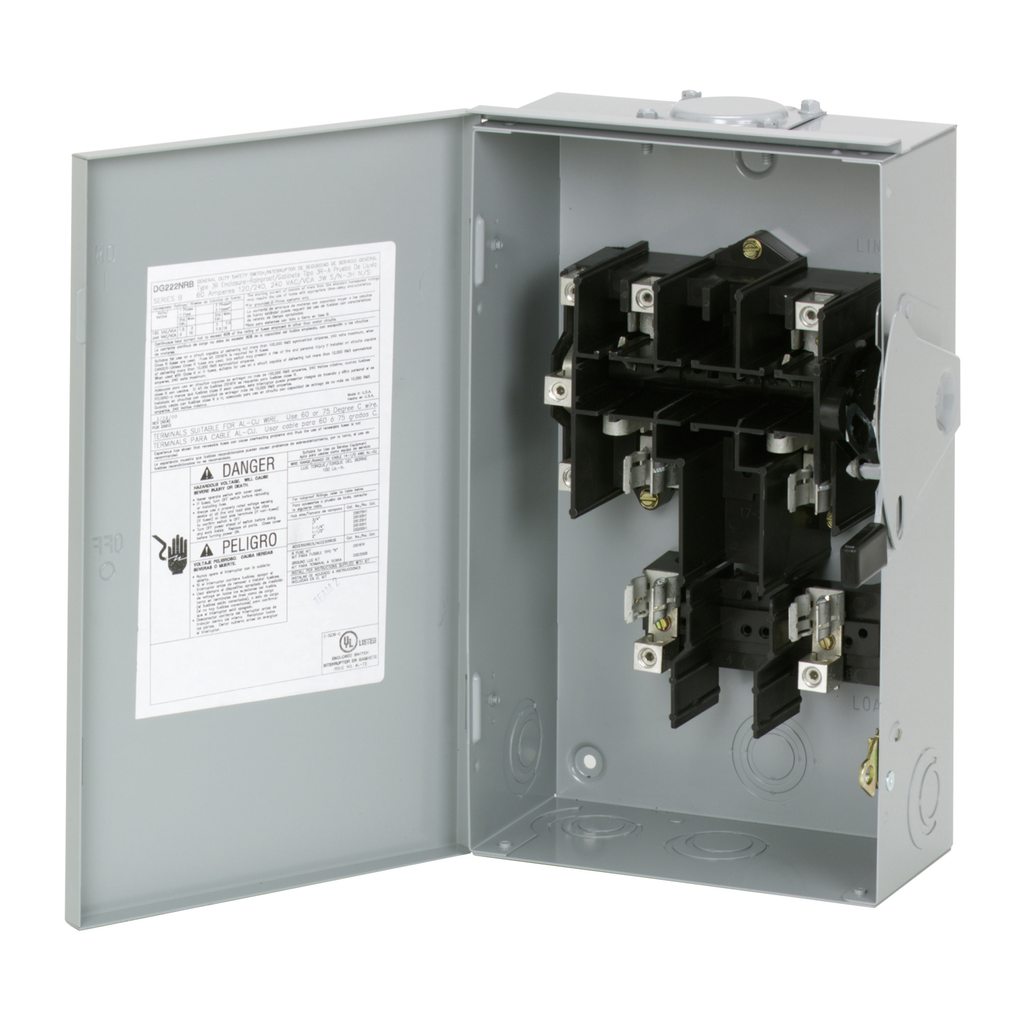

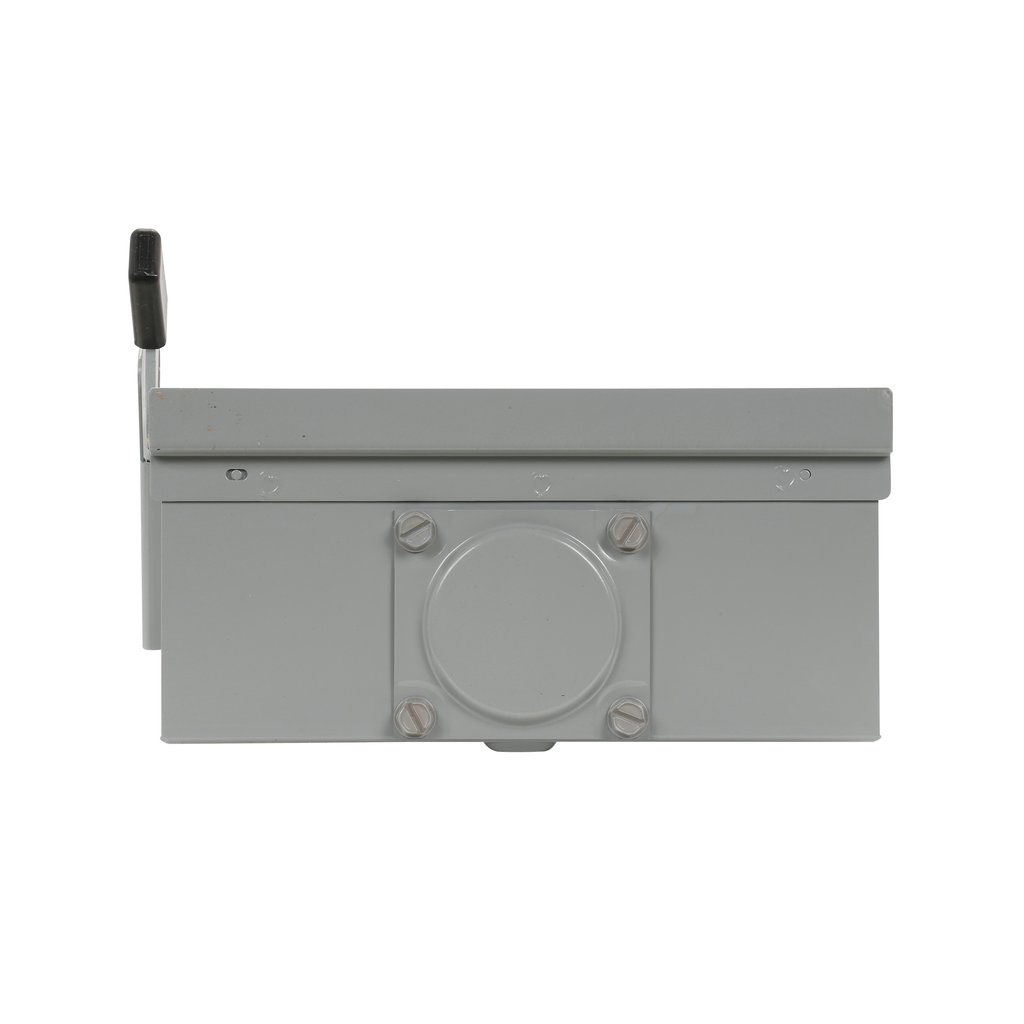

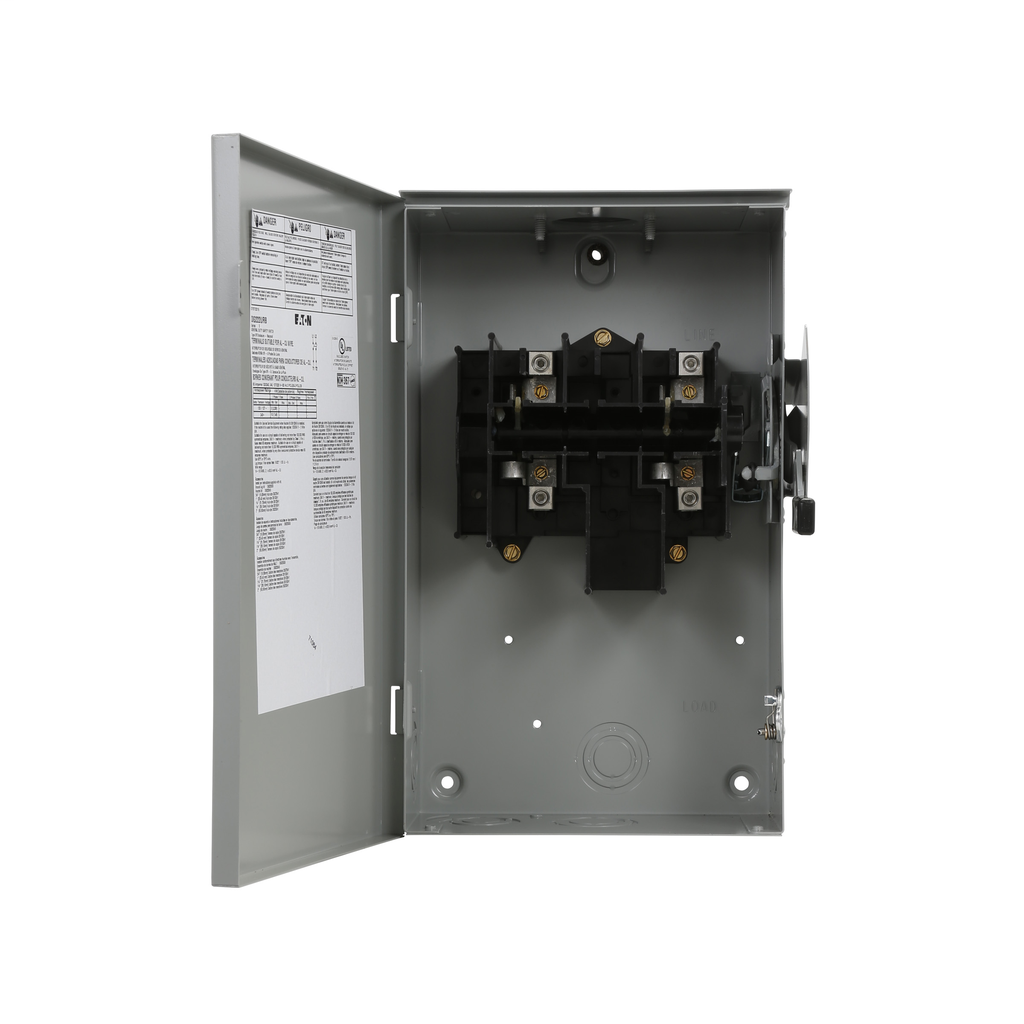

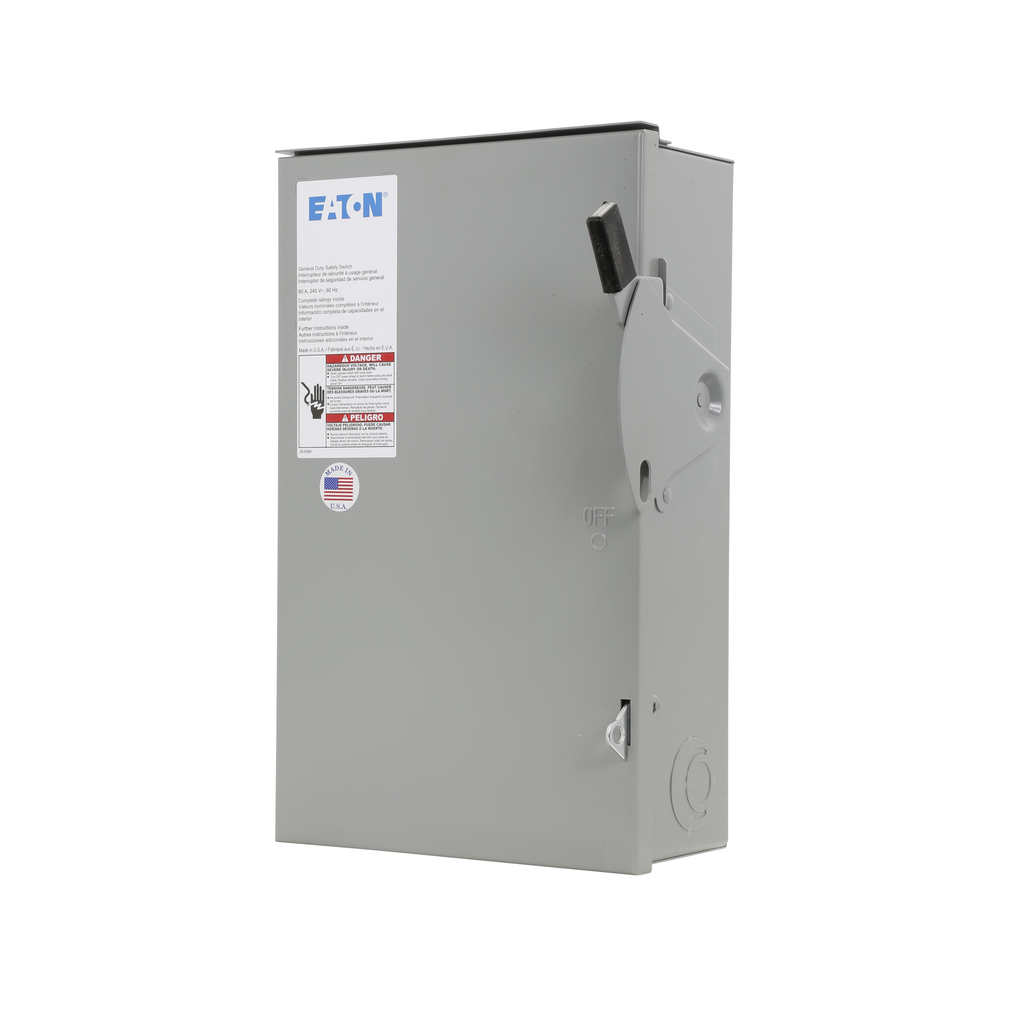

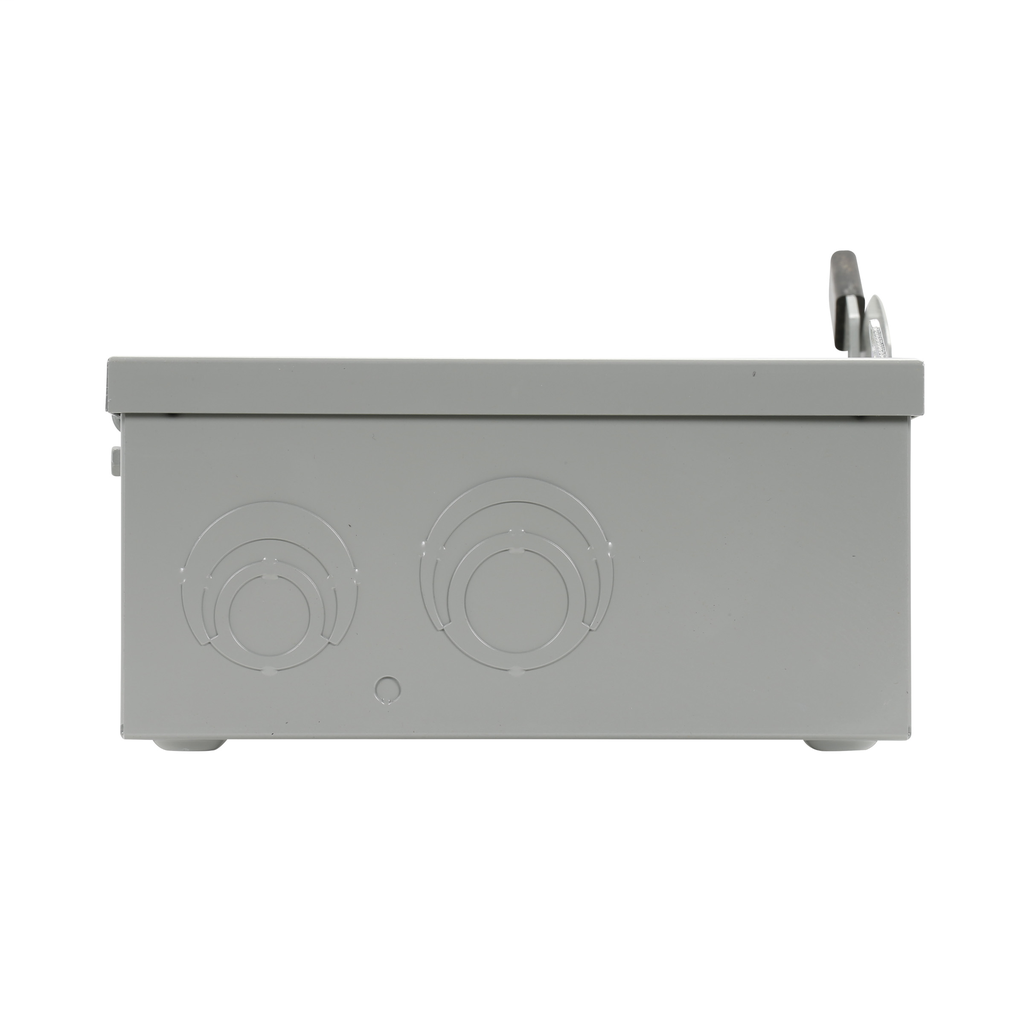

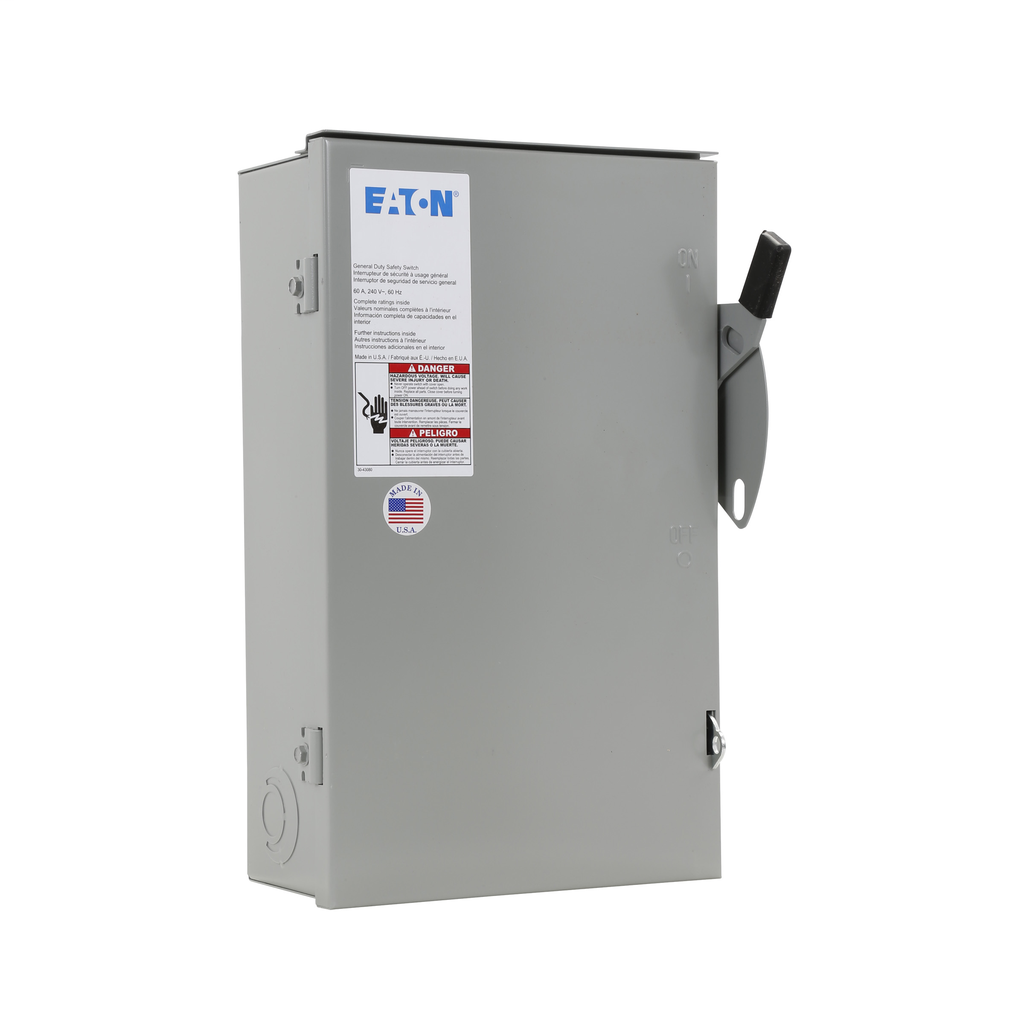

Cutler-Hammer DG222URB Safety Switch 60A 240V Two-Pole Two-Wire NEMA 3R Painted Galvanized Steel
Engineered for reliable operation, the Eaton general duty non-fusible safety switch by Cutler-Hammer is a robust solution for managing electrical circuits safely. With a amperage rating of 60A and a voltage rating of 240V, this two-pole switch accommodates two-wire configurations, ensuring efficient connectivity in a variety of applications. Constructed from painted galvanized steel and designed with a NEMA 3R enclosure, it offers rainproof protection, making it suitable for outdoor use. This straightforward, single-throw switch is essential for protecting your electrical systems, but note that it is not approved for service entrance without the installation of a neutral kit.
- UL Listed certification ensuring safety compliance
- NEMA 3R rainproof enclosure for outdoor durability
- Painted galvanized steel construction for corrosion resistance
- 60A amperage rating for moderate electrical loads
- 240V voltage rating suitable for standard applications
- Two-pole design for double-pole circuit control
- Two-wire configuration for common electrical setups
- Non-fusible, single-throw switch for straightforward operation
- Not approved for service entrance without neutral kit installation
- Amperage: 60A
- Voltage: 240V
- Type: Non-fusible, single-throw
- Number of Poles: Two-pole
- Number of Wires: Two-wire
- Enclosure: NEMA 3R, Rainproof
- Length: 7.38 in
- Width: 8.69 in
- Height: 14.38 in
- Weight: 9 lb
- Material: Painted galvanized steel
- Fuse Configuration: Non-fusible
- Compliance: UL Listed
