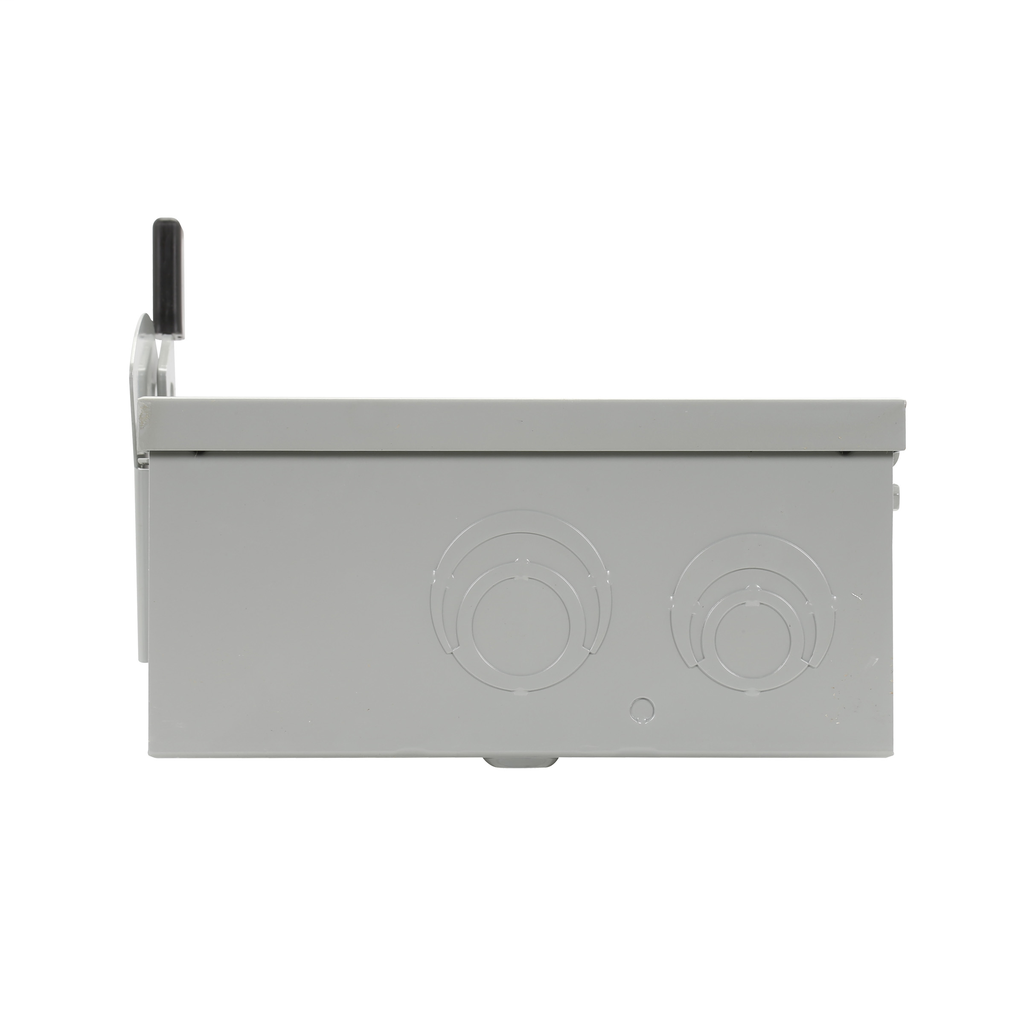

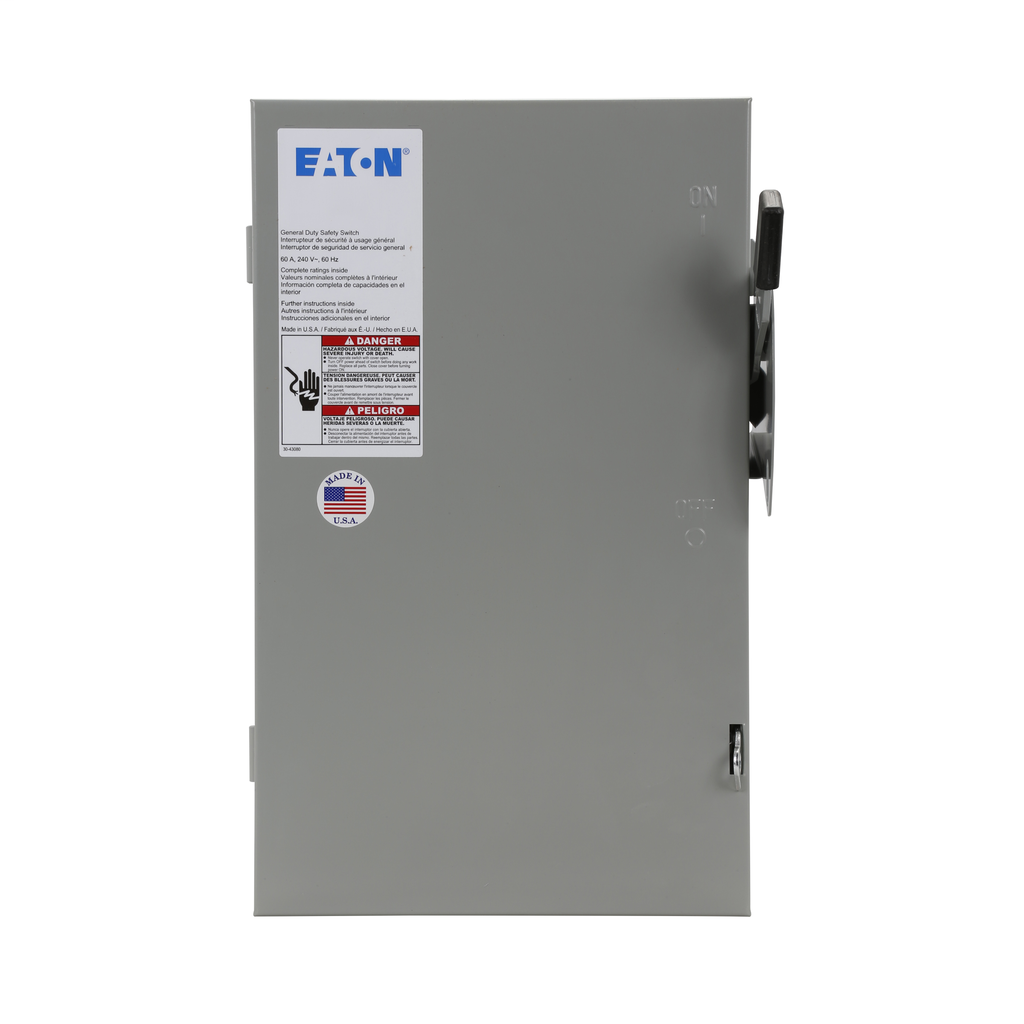

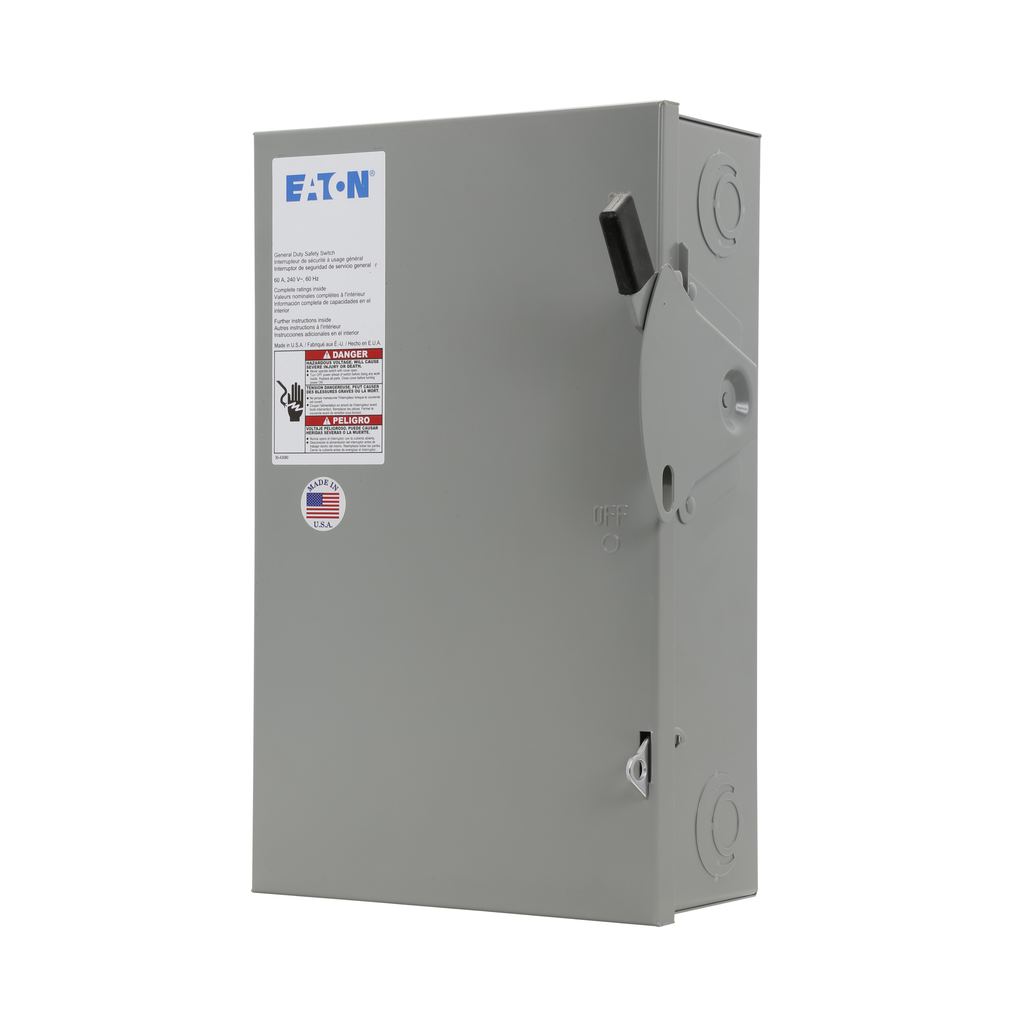

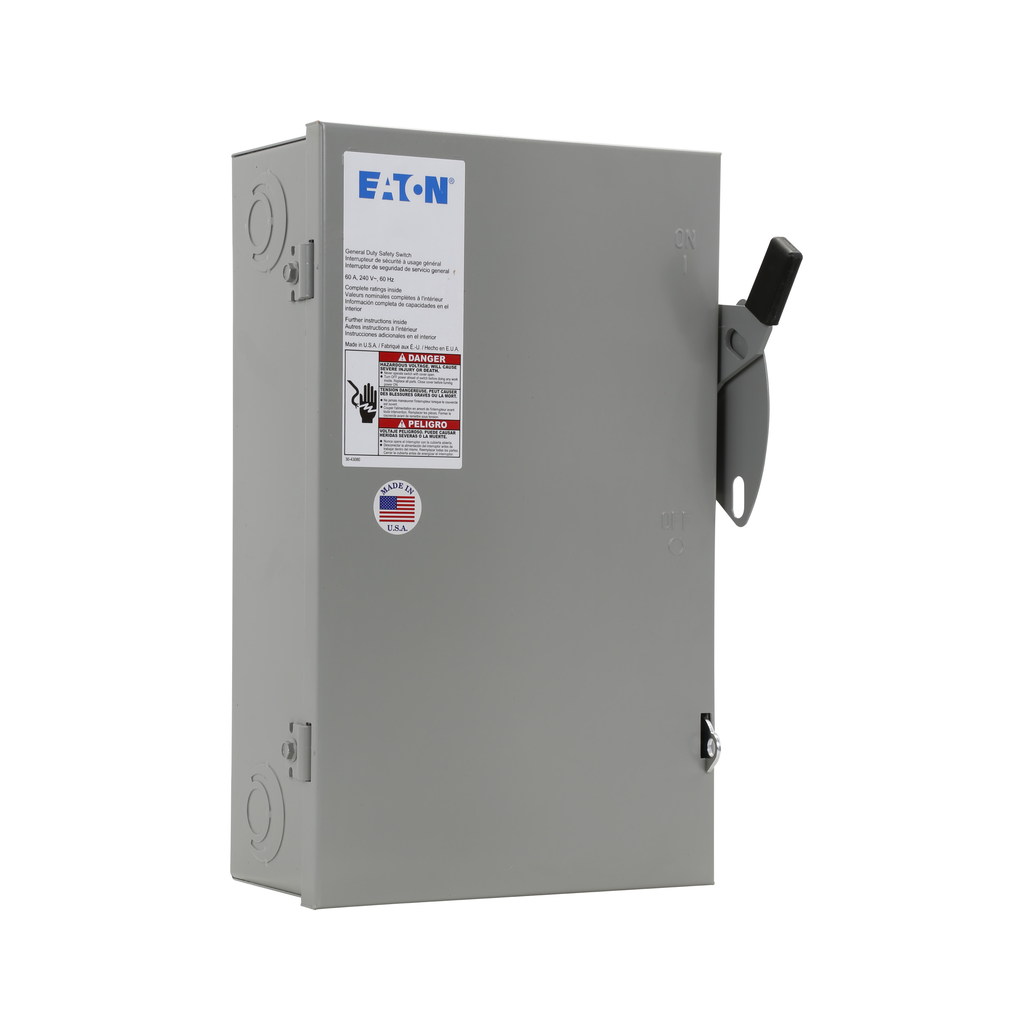

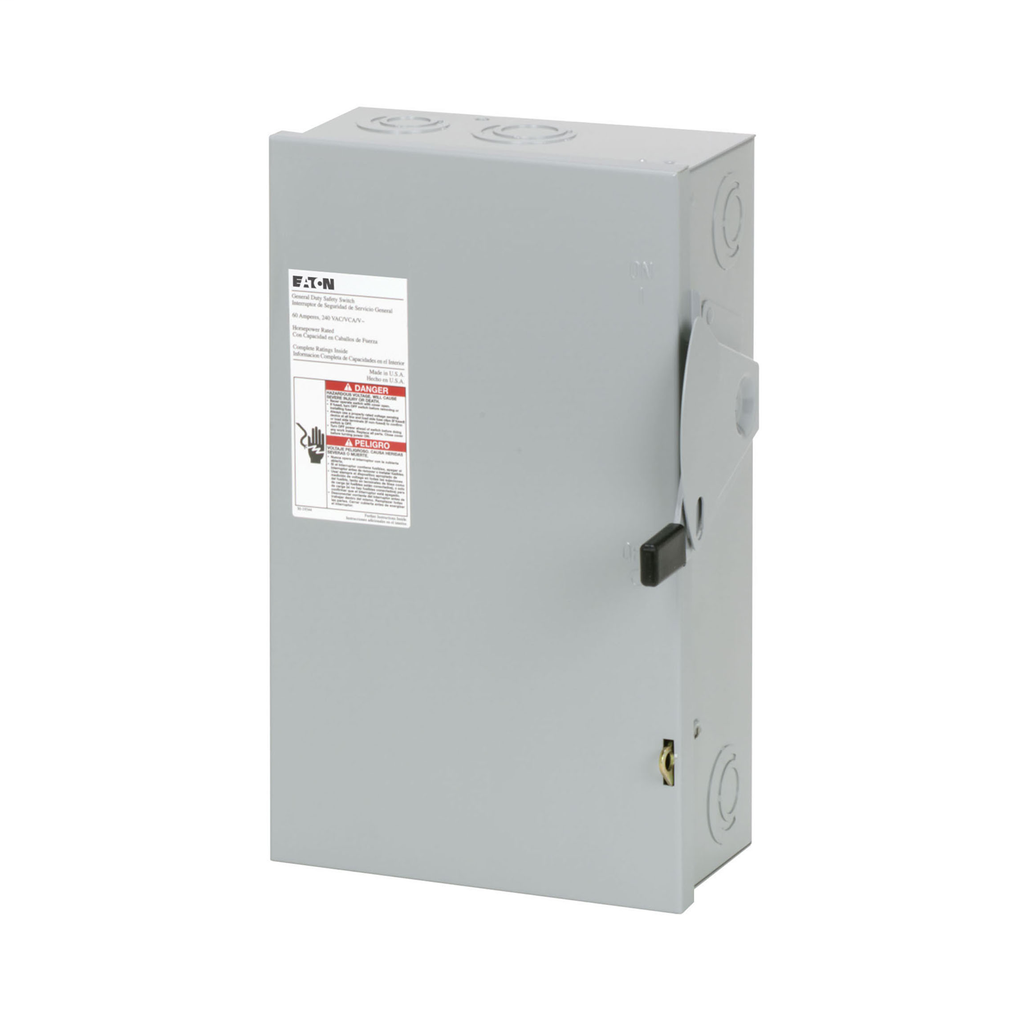

Cutler-Hammer DG222UGB Safety Switch Two-Pole 60A 240V Non-Fusible Painted Steel NEMA 1 Indoor
The Eaton general duty non-fusible safety switch, crafted by Cutler-Hammer, is designed for effective electrical management in various applications. With a two-pole and two-wire configuration, this switch is rated for 60 amps at 240 volts, providing reliable performance in indoor environments characterized by NEMA 1 enclosure specifications. Its painted steel construction not only contributes to durability but also ensures safety across different installations. Notably, it is essential to note that the switch is not approved for service entrance without the installation of a neutral kit, making it crucial for users to adhere to safety guidelines when integrating this component into their electrical systems.
- UL Listed for safety assurance
- Non-fusible design for reliable electrical isolation
- Painted steel construction for durability and corrosion resistance
- NEMA 1 enclosure designed for indoor use
- Two-pole, two-wire configuration suitable for general duty applications
- 60 amp rating for moderate electrical loads
- 240V rating for standard indoor electrical systems
- Single-throw switch type for straightforward operation
- Not approved for service entrance without neutral kit installation
- Amperage: 60A
- Voltage: 240V
- Type: Non-fusible, single-throw
- Number of Poles: Two-pole
- Number of Wires: Two-wire
- Height: 14.19 IN
- Length: 7.38 IN
- Width: 8.69 IN
- Weight: 9 LB
- Material: Painted steel
- Enclosure: NEMA 1, Indoor
- Fuse Configuration: Non-fusible
- Product Category: General duty safety switch
- Compliance: UL Listed
