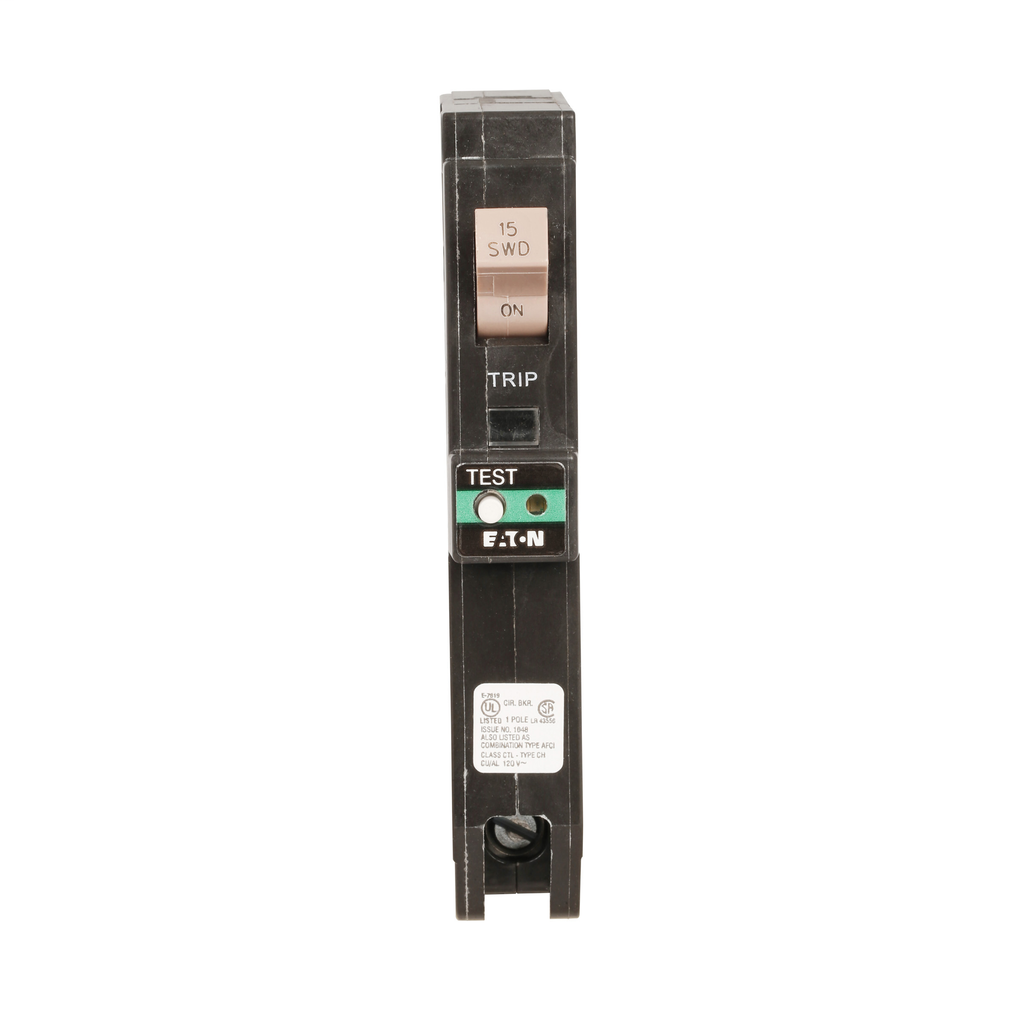

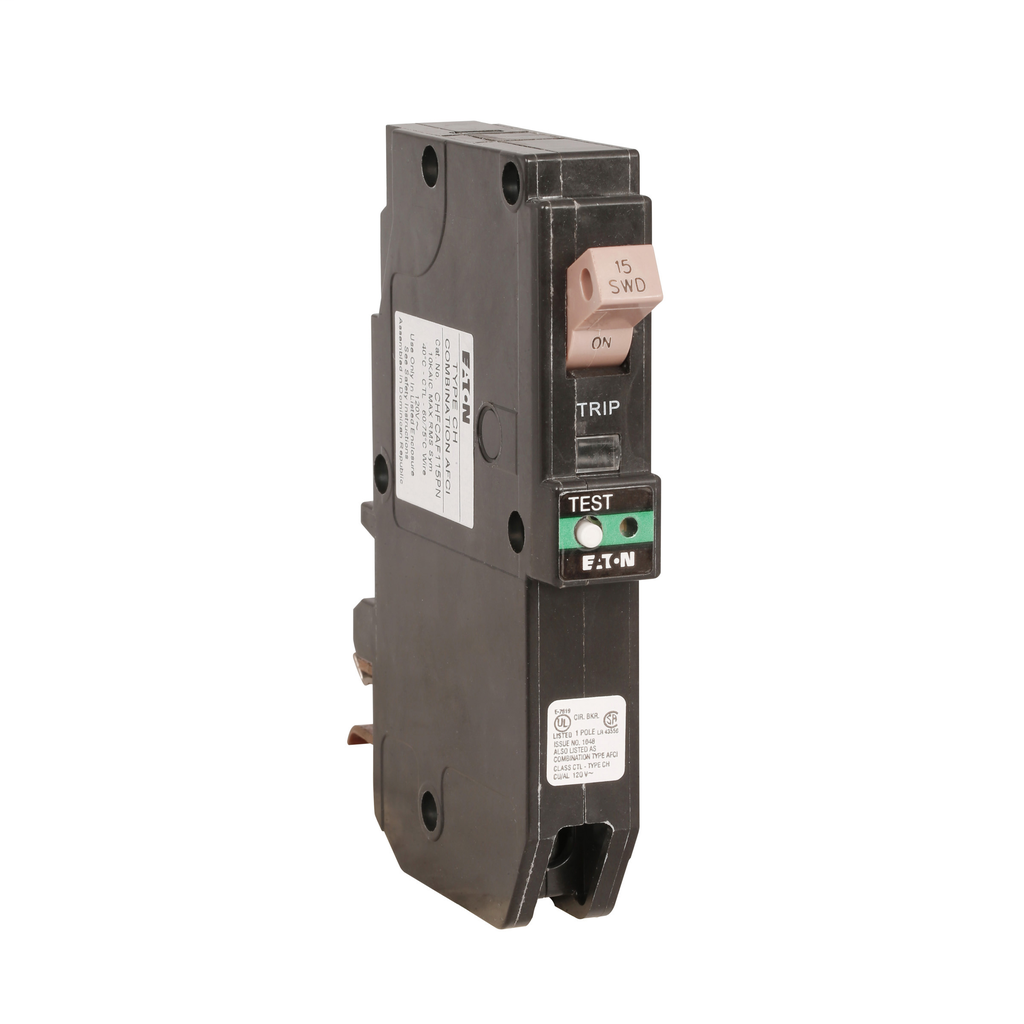

Cutler-Hammer CHFCAF120PN AFCI Plug-On Branch Feeder Circuit Breaker 20A 120/240V Single-pole 10 kAIC Plug-on Neutral Pigtail

The Type CH AFCI Plug-On Branch Feeder Circuit Breaker from Cutler-Hammer is an essential component for ensuring electrical safety in residential and commercial applications. Featuring a 20A amperage rating and designed with a single-pole configuration, this circuit breaker is specifically engineered to protect against arc faults, which can pose significant fire hazards. Its compact size, measuring 3.5 inches in length and 1 inch in width, allows for easy installation in tight spaces, while the plug-on mounting and pigtail connection facilitate straightforward setup. With a robust interrupt rating of 10 kAIC, this breaker efficiently handles overload conditions, ensuring reliable performance under various circumstances. Ideal for a variety of environments, it offers a plug-on neutral feature, enhancing convenience during the installation process.

• Protects against arc faults for fire hazard prevention
• UL Listed for safety assurance
• 10 kAIC interrupt rating for safely handling overloads
• 20A amperage rating for standard residential and commercial use
• Single-pole design for focused circuit protection
• HACR rated for HVAC and refrigeration equipment compatibility
• Plug-on mounting for quick and tool-free installation
• Pigtail connection simplifies wiring setup
• Plug-on neutral enhances installation convenience
• Compact size for easy installation in tight spaces

• Voltage: 120/240V
• Amperage: 20A
• Interrupt Rating: 10 kAIC
• Number of Poles: Single-pole
• Mounting: Plug-on
• Connection: Pigtail
• Neutral: Plug-on neutral
• Length: 3.5 in
• Height: 3 in
• Width: 1 in
• Weight: 0.5 lb
• Compliance: UL Listed, HACR Rated
