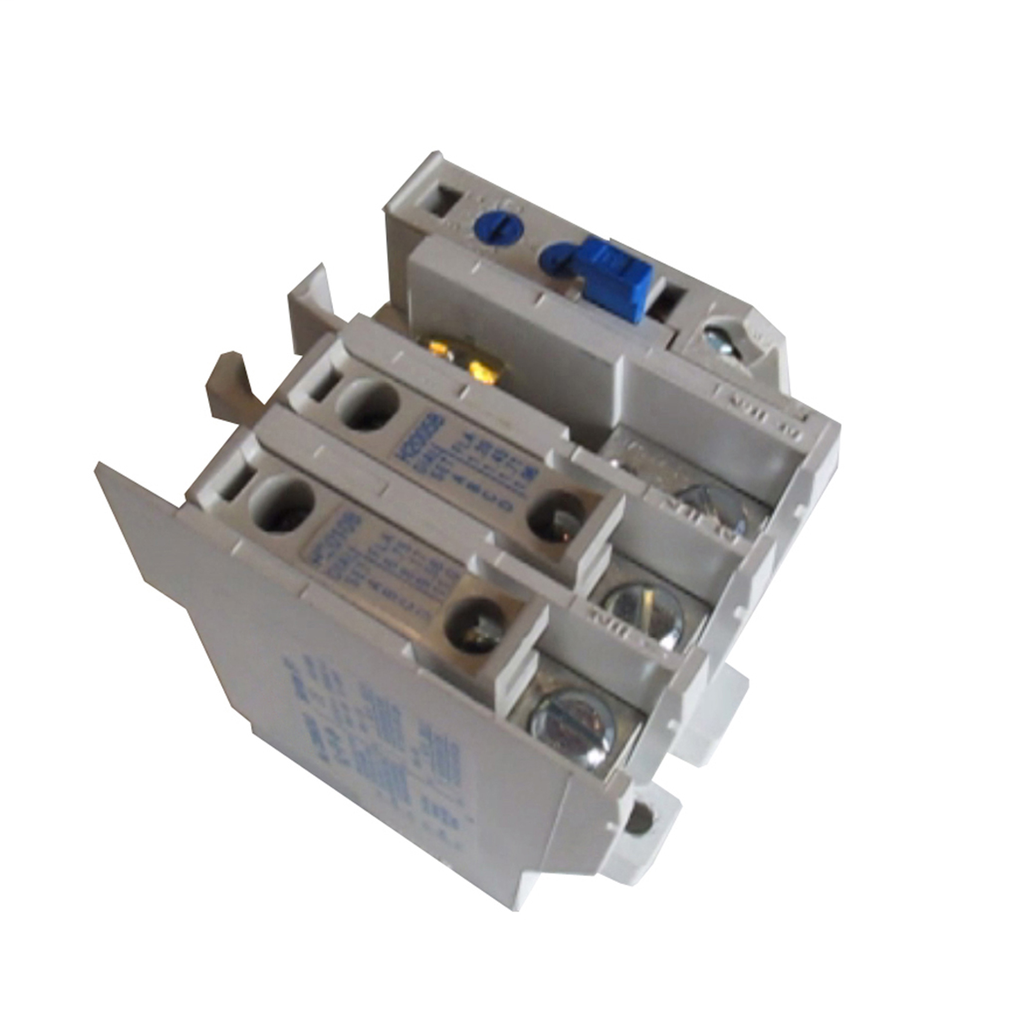

Cutler-Hammer C306DN3B Thermal Overload Relay 20-39A Three-pole NEMA Size 00 DIN Rail Panel
Engineered to provide exceptional thermal protection, the NEMA Freedom Thermal Overload Relay from Cutler-Hammer is designed to safeguard your electrical systems effectively. With an amperage rating of 20-39A and a three-pole configuration, this relay ensures reliable operation in various industrial applications. It features a thermal trip type and requires specific heater packs, making it essential for precise overcurrent protection. This relay is adaptable for different mounting options, including DIN rail and panel installations, allowing for flexible integration into your existing setups. Additionally, the built-in load lugs streamline installation, making it compatible with Series B heater packs only. Notably, its robust design adheres to both NEMA and IEC standards, ensuring it meets the rigorous demands of modern electrical environments.
- Thermal trip type for precise overcurrent protection
- Amperage rating of 20-39A for mid-range loads
- Three-pole design for balanced three-phase protection
- Compatible with Series B heater packs for accurate thermal response
- Mountable on DIN rail or panel for flexible installation
- Built-in load lugs simplify wiring and installation
- Complies with NEMA and IEC standards for industrial compatibility
- Designed to integrate with GST00-160 contactors for motor protection
- Amperage Rating: 20-39A
- Number of Poles: Three-pole
- Trip Type: Thermal
- Frame Size: NEMA Size 00, 0, IEC Size A-F
- Design: NEMA, IEC
- Mounting: DIN rail, panel
- Special Features: Heaters required
- Used With: GST00-160
