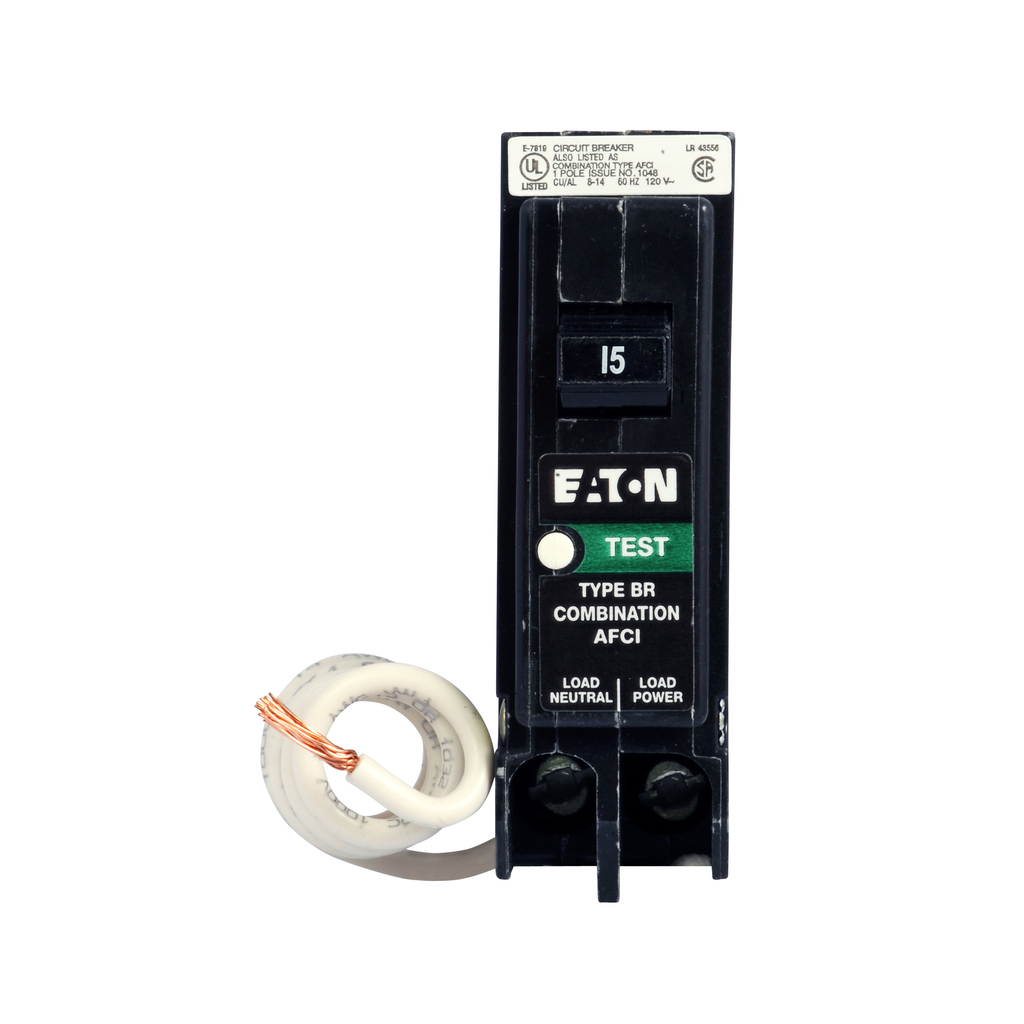

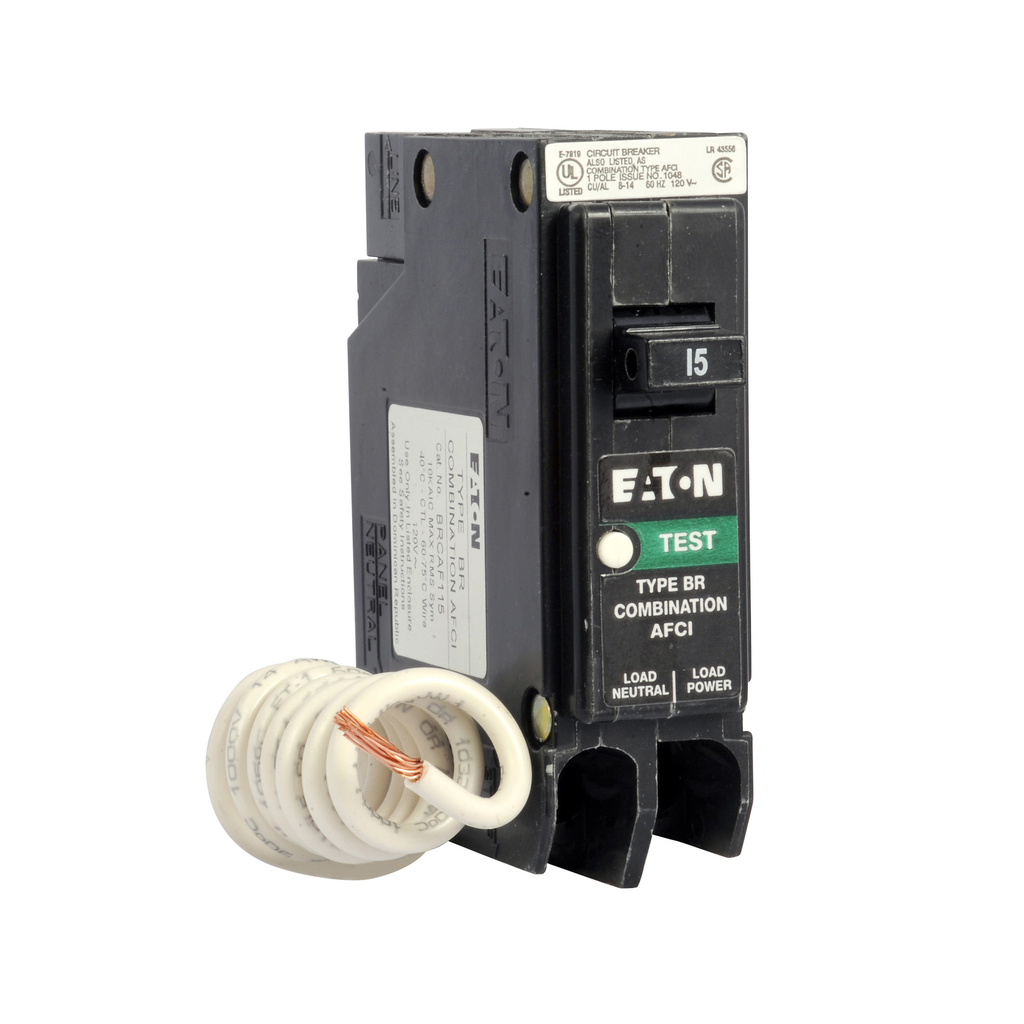

Cutler-Hammer BRCAF115 Combination AFCI Circuit Breaker 15A 120V Single-pole BR Loadcenters Standard Pigtail
This innovative circuit breaker from Cutler-Hammer combines advanced safety features with reliable performance to protect your electrical systems. The 1-Inch Combination AFCI Circuit Breaker is designed to prevent arc faults, offering peace of mind in residential applications. With a 15A amperage rating and a robust interrupt rating of 10 kAIC, it ensures efficient operation under various conditions. Compatible with Type BR loadcenters and accommodating wire sizes from #14 to #4 AWG for both copper and aluminum, this single-pole breaker supports a voltage rating of 120V, making it an essential component for modern electrical installations. Its standard pigtail mounting design allows for easy integration, ensuring a reliable connection in any setup.
- Protects against arc faults for enhanced electrical safety
- 10 kAIC interrupt rating for high fault current interruption
- Rated 15A for residential circuit protection
- 120V rating suitable for typical household electrical systems
- Compatible with Type BR loadcenters for system integration
- Supports copper and aluminum wiring from #14 to #4 AWG
- Single-pole design compatible with standard residential circuits
- Standard pigtail mounting for easy installation
- Compact 1-inch size saves panel space
- UL 1699 certified for arc fault circuit interruption compliance
- Amperage: 15A
- Interrupt Rating: 10 kAIC
- Voltage: 120V
- Number of Poles: Single-pole
- Length: 6 in
- Width: 3.5 in
- Height: 1.25 in
- Weight: 0.45 lb
- Wire Size: #14-4 AWG Cu/Al
- Mounting: Standard Pigtail
- Special Features: Arc fault
- Used With: Type BR Loadcenters
- Main Circuit Breaker: BR
