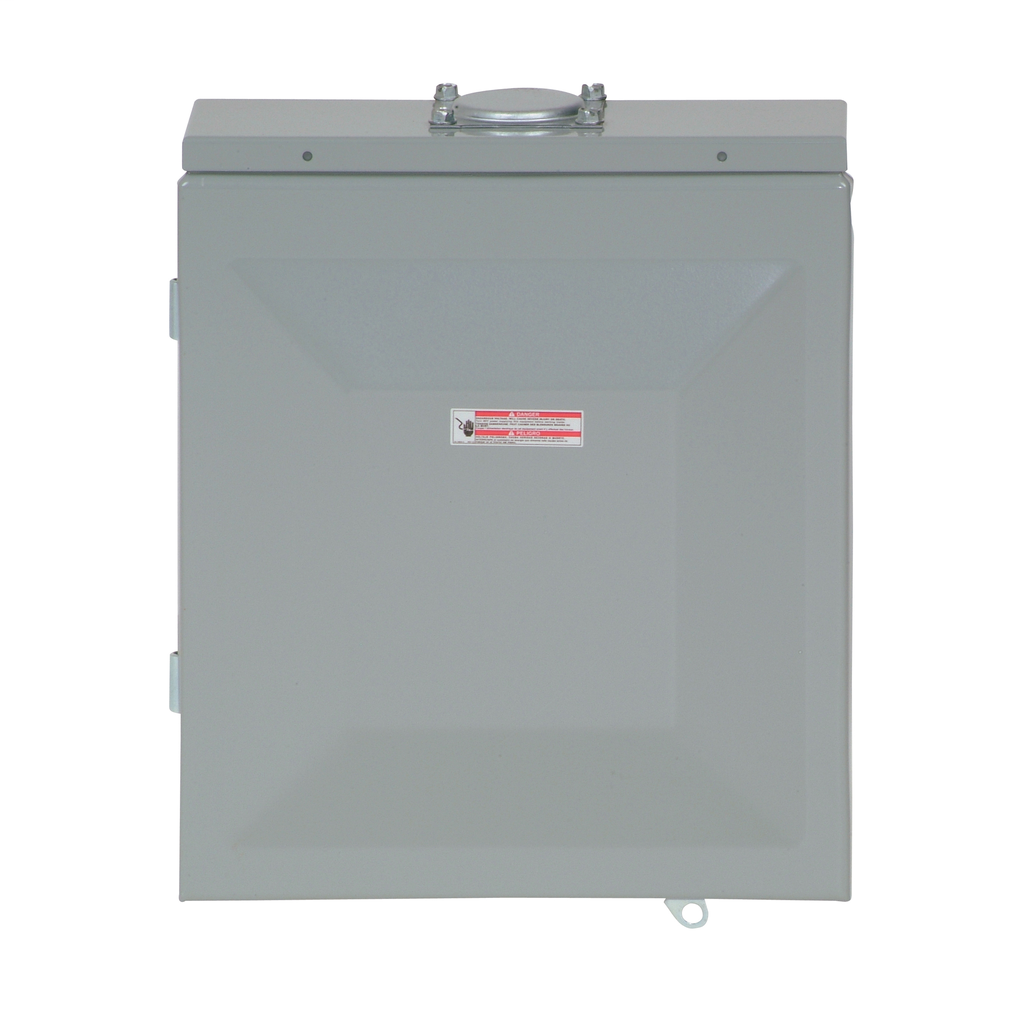

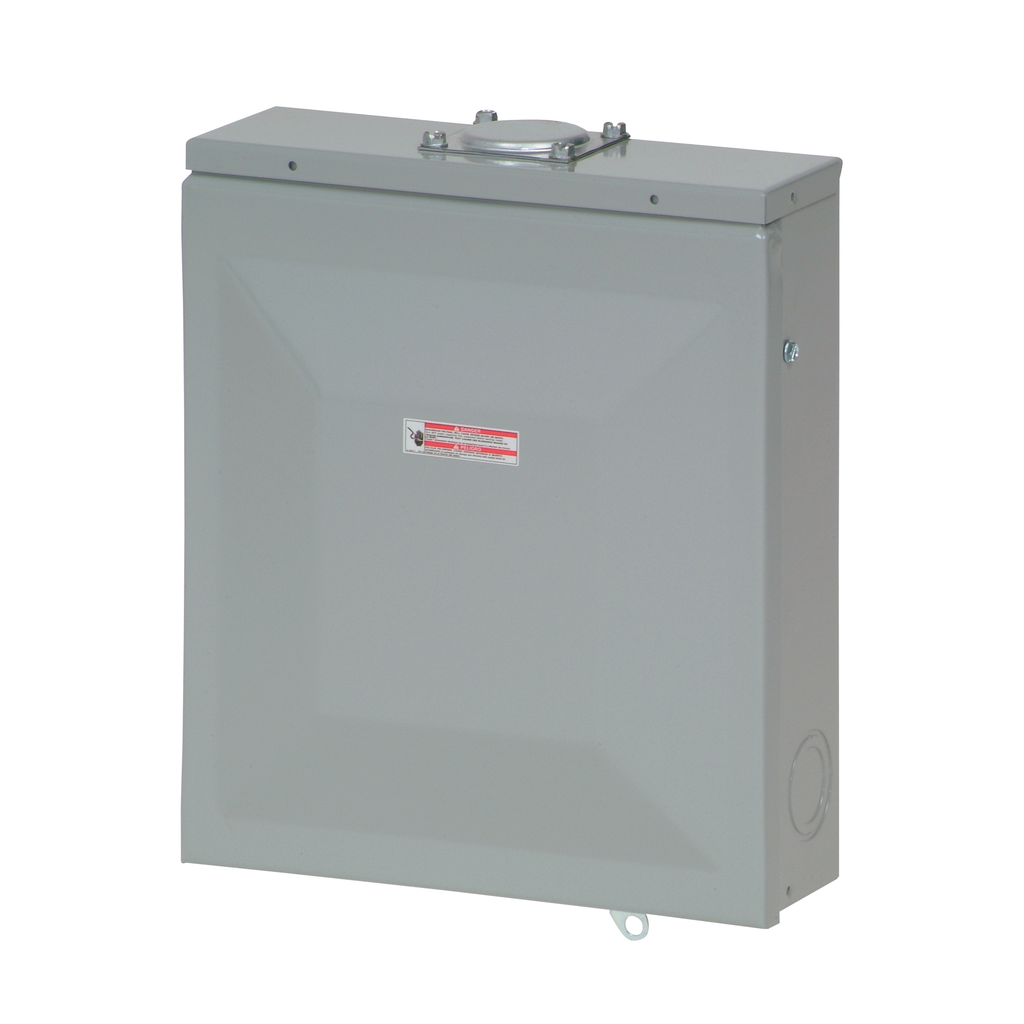

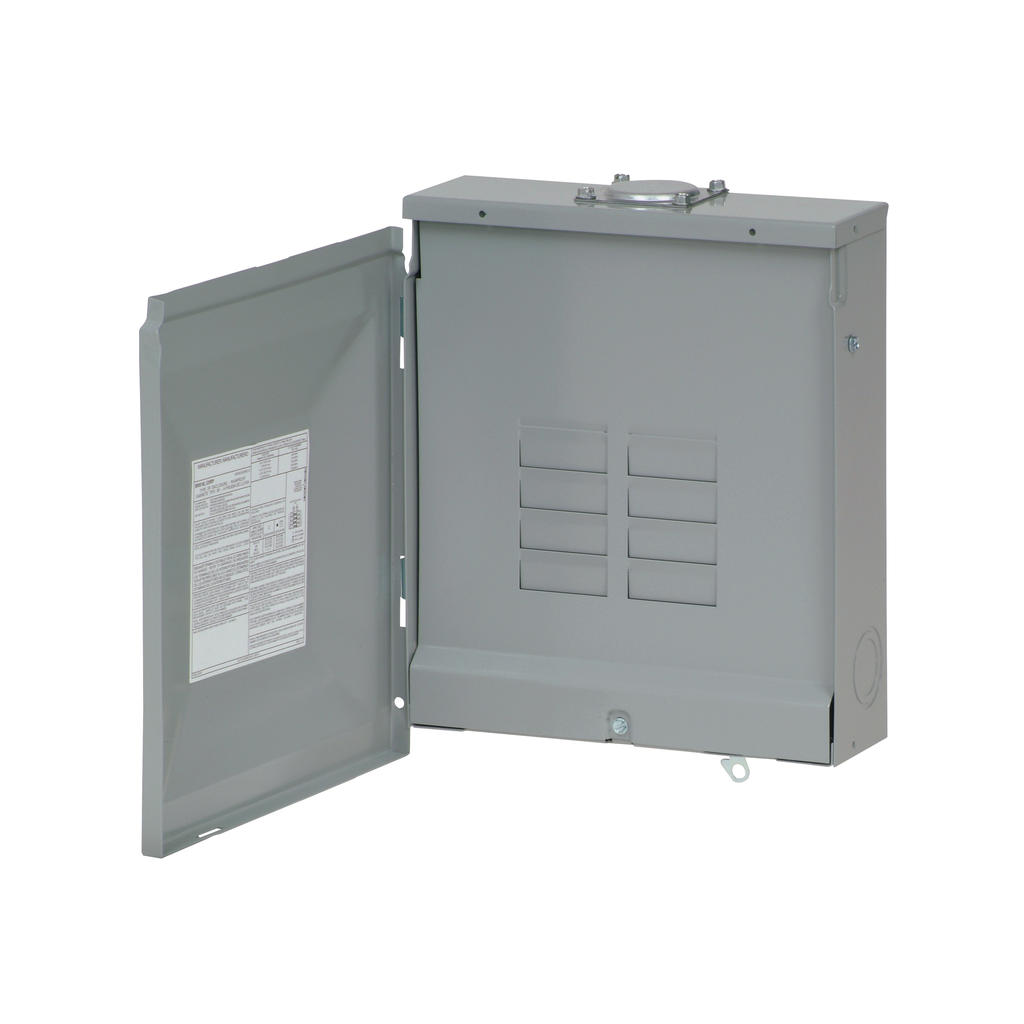

Cutler-Hammer BR816L125RP Loadcenter 125A 120/240V 16-Circuit Single-Phase NEMA 3R Metallic Aluminum
Engineered for efficiency and reliability, the Cutler-Hammer BR style 1-inch loadcenter is an excellent solution for a variety of electrical needs. This robust unit features a single-phase design, accommodating up to 16 circuits with a total amperage rating of 125A, ensuring ample capacity for residential or light commercial applications. Constructed with durable metallic material and an aluminum bus, it not only meets the high requirements of modern electrical systems but also comes equipped with a cover for enhanced protection. Designed to conform to NEMA 3R standards, this loadcenter offers versatility and security for environments where moisture and the elements are a concern, making it a practical choice for outdoor installations as well.
- Main lug type for simplified connections
- 10 kAIC interrupt rating for high fault current protection
- 125A amperage rating for reliable power distribution
- Single-phase design for residential and light commercial use
- Supports up to 16 circuits for ample electrical capacity
- Aluminum bus for corrosion resistance and durability
- Metallic enclosure provides robust protection
- NEMA 3R rated for moisture and outdoor environment resistance
- Included cover enhances safety and safeguards internal components
- Compatible with #14-1 AWG Cu/Al wiring for versatile installation
- Amperage Rating: 125A
- Voltage Rating: 120/240V
- Interrupt Rating: 10 kAIC
- Phase: Single-phase
- Number of Circuits: 16
- Number of Spaces: 8
- Wire Size: #14-1 AWG Cu/Al
- Number of Wires: Three-wire
- Length: 3.56 in
- Width: 11 in
- Height: 13 in
- Type: Main lug
- Bus Material: Aluminum
- Enclosure Material: Metallic
- Enclosure: NEMA 3R
- Main Circuit Breaker: BR
- Cover: Included
