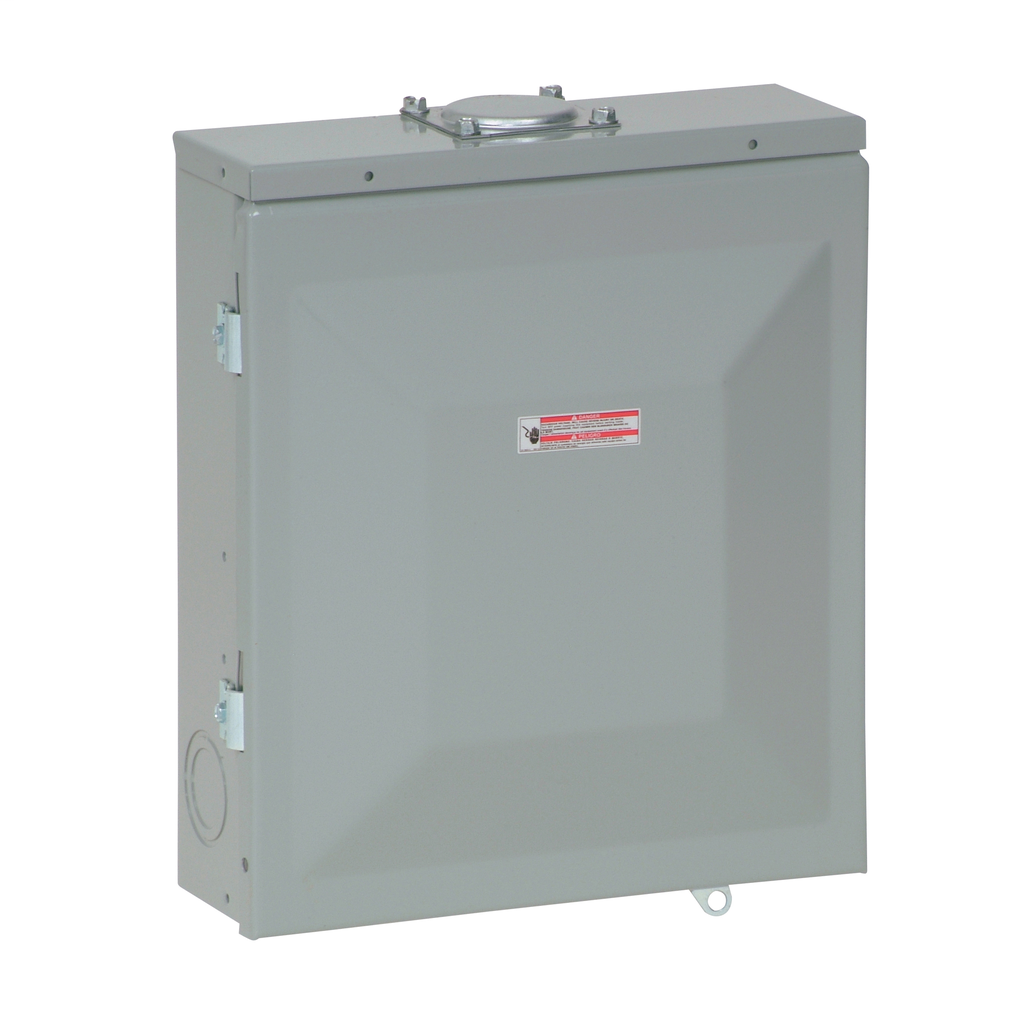

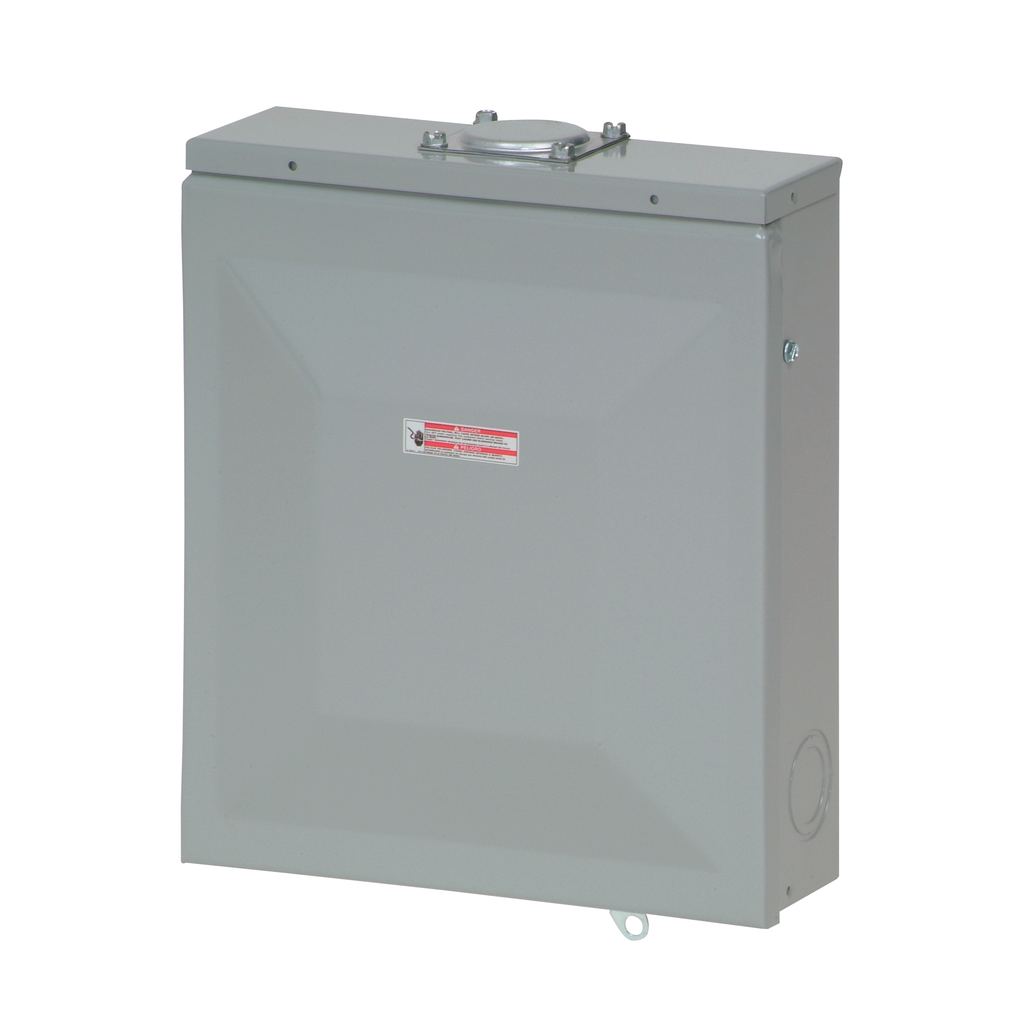

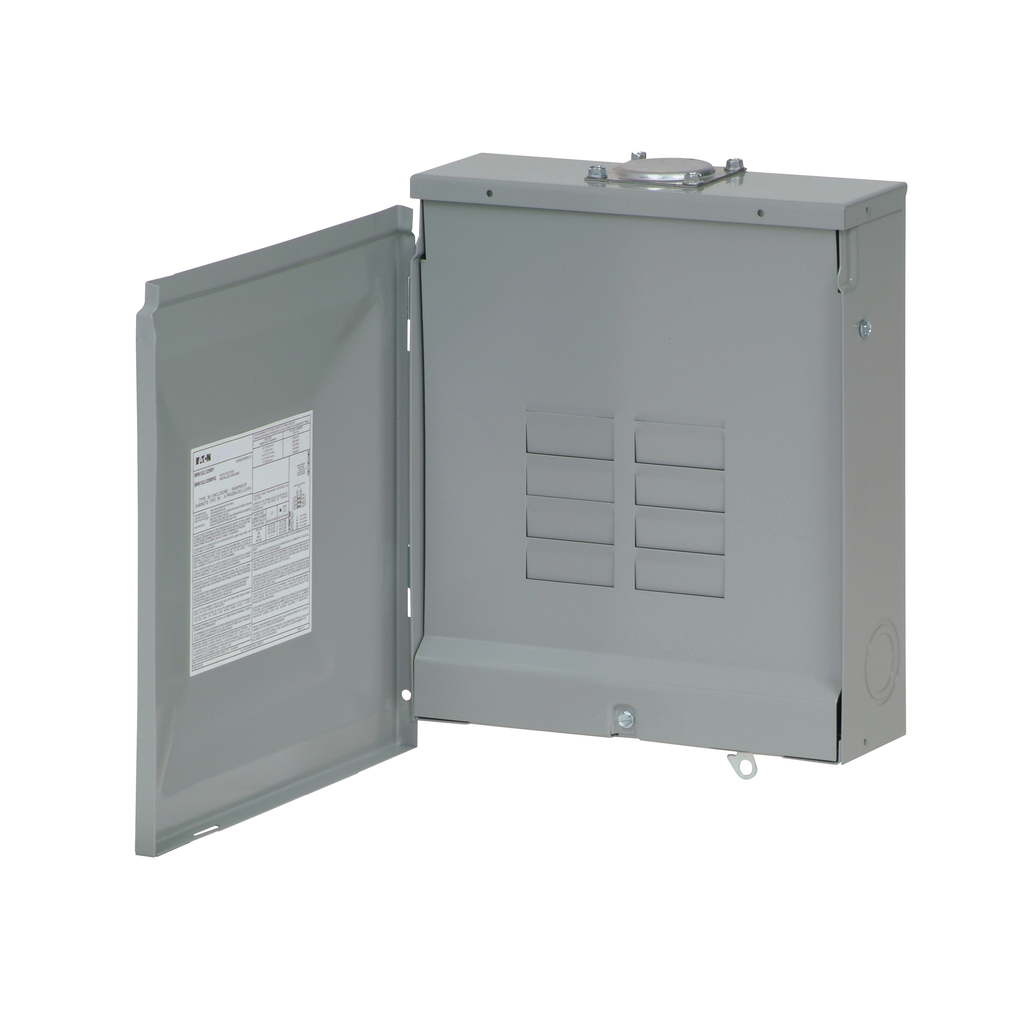

Cutler-Hammer BR612L125RP Loadcenter 125A 120/240V 12-Circuit NEMA 3R Metallic
The Cutler-Hammer BR style 1-inch loadcenter is engineered to provide reliable power distribution for residential and light commercial applications. Designed with a single-phase configuration, this loadcenter supports up to 12 circuits and is equipped with a main lug type and a 125A amperage rating, ensuring efficient management of electric power. Its sturdy metallic enclosure, compliant with NEMA 3R standards, is built to withstand various environmental conditions, while the aluminum bus material facilitates excellent conductivity. Supporting wire sizes ranging from #14 to 1 AWG for copper and aluminum, this loadcenter is versatile enough to accommodate a broad spectrum of wiring needs. With a current interrupt rating of 10 kAIC and featuring a cover for added protection, it meets modern safety standards while delivering dependable performance.
- Metallic enclosure meeting NEMA 3R standards for outdoor protection
- 10 kAIC interrupt rating for high fault current protection
- 125A main lug amperage rating for reliable power management
- Single-phase design for standard electrical systems
- Supports up to 12 circuits for expanded capacity
- Aluminum bus material for enhanced electrical conductivity
- Compatible with #14 to 1 AWG copper or aluminum wiring for versatility
- Included cover provides additional safety and dust protection
- UL 67 and UL 50 certified for recognized safety and enclosure performance
- Suitable for residential and light commercial power distribution
- Amperage: 125A
- Voltage Rating: 120/240V
- Interrupt Rating: 10 kAIC
- Phase: Single-phase
- Number of Circuits: 12
- Number of Spaces: 6
- Number of Wires: Three-wire
- Type: Main lug
- Main Circuit Breaker: BR
- Wire Size: #14-1 AWG Cu/Al
- Length: 3.56 in
- Height: 13 in
- Width: 11 in
- Weight: 12 lb
- Bus Material: Aluminum
- Enclosure Material: Metallic
- Enclosure: NEMA 3R
- Box Size: 7r
- Compliance: UL 67, UL 50
