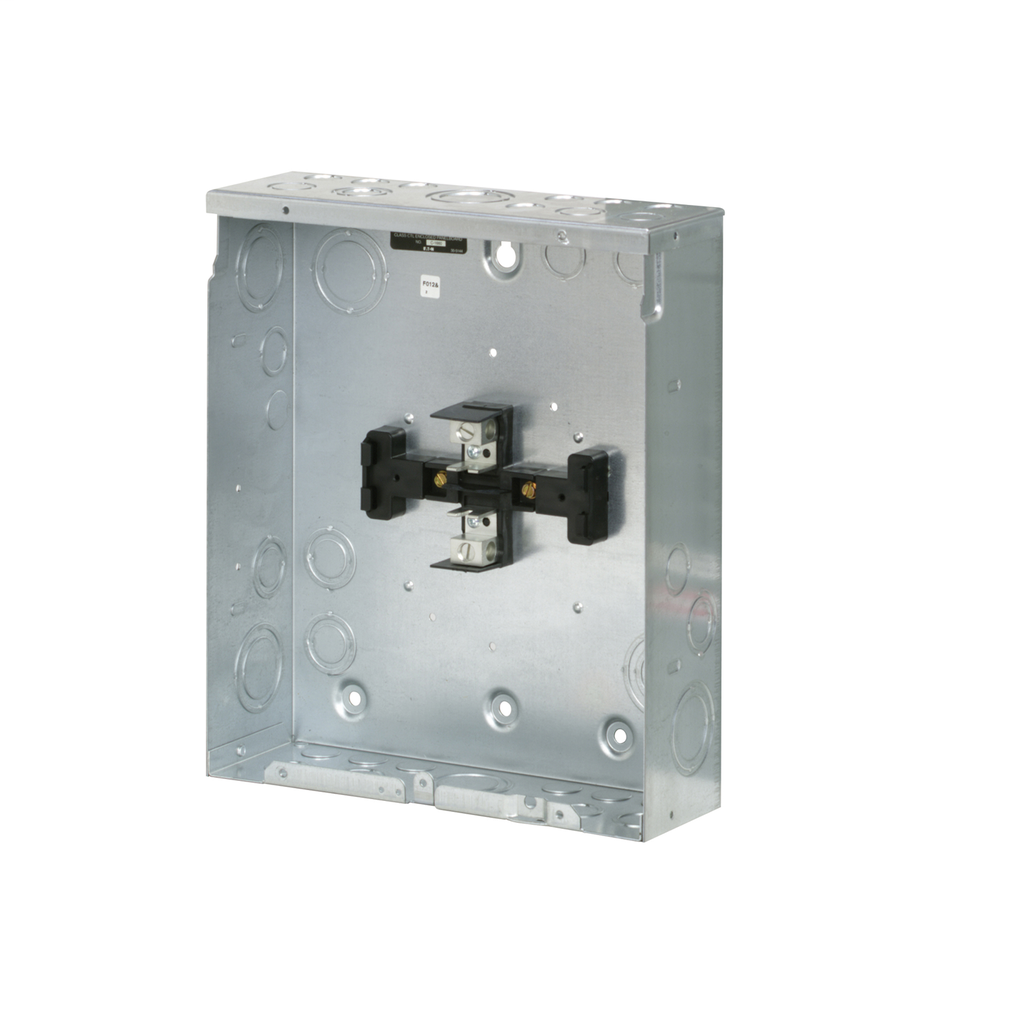

Cutler-Hammer BR48L125SP Loadcenter Main Lug 125A 120/240V 8-Circuit Aluminum Bus Surface Mount Metallic
Cutler-Hammer's BR style 1-inch loadcenter is engineered to provide reliable performance and efficient electrical distribution for various applications. With a solid aluminum bus material and a robust metallic enclosure, this loadcenter accommodates up to eight circuits, making it an ideal choice for both residential and light commercial settings. Designed for surface mounting, it supports a three-wire configuration and is rated for voltages of 120/240V, ensuring compatibility with a wide range of electrical systems. Featuring a 125A amperage rating and a 10 kAIC interrupt rating, this unit provides essential safety and enhances circuit management. Its current design ensures that it meets the demands of today's electrical load requirements while easily integrating with type BR 1-inch breakers.
- 10 kAIC interrupt rating for enhanced short circuit safety
- 125A amperage rating for handling high electrical loads
- Aluminum bus for corrosion resistance and durability
- Metallic NEMA 1 enclosure for indoor surface mounting protection
- Supports up to eight circuits for flexible electrical distribution
- Compatible with type BR 1-inch breakers for versatile integration
- Single-phase design suitable for residential and light commercial use
- Accommodates #14-1/0 AWG copper and aluminum wiring
- Surface mount design for easy installation
- Current design optimized for modern electrical load requirements
- Amperage: 125A
- Voltage: 120/240V
- Interrupt Rating: 10 kAIC
- Number of Circuits: 8
- Number of Poles: Eight-pole
- Phase: Single-phase
- Wire Size: #14-1/0 AWG Cu/Al
- Length: 3.56 in
- Width: 11 in
- Height: 13 in
- Weight: 23 lb
- Bus Material: Aluminum
- Enclosure Material: Metallic
- Enclosure: NEMA 1
- Mounting: Surface
- Type: Main lug
- Number of Spaces: 4
- Cover: Cover not included
- Main Circuit Breaker: BR
- Used With: Type BR 1-inch breakers
- Special Features: Current design
